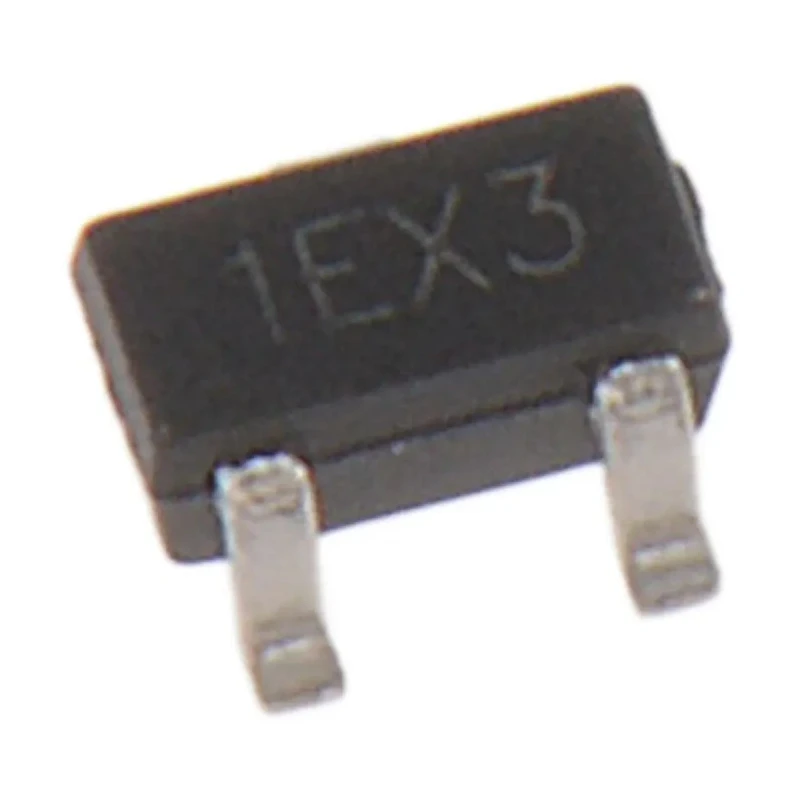

DiodesZetex NPN Small Signal Transistor 100mA 45V 3-Pin SOT-523 BC847AT-7-F

DiodesZetex BC847AT-7-F NPN small signal transistor is engineered for reliable low power switching and amplification applications. With a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 45 V, this transistor suits electronic circuits requiring moderate voltage and current handling.

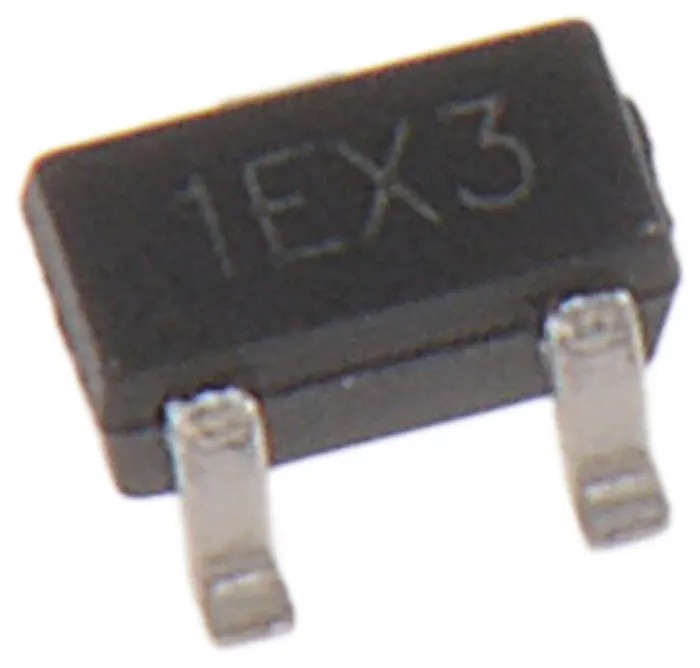

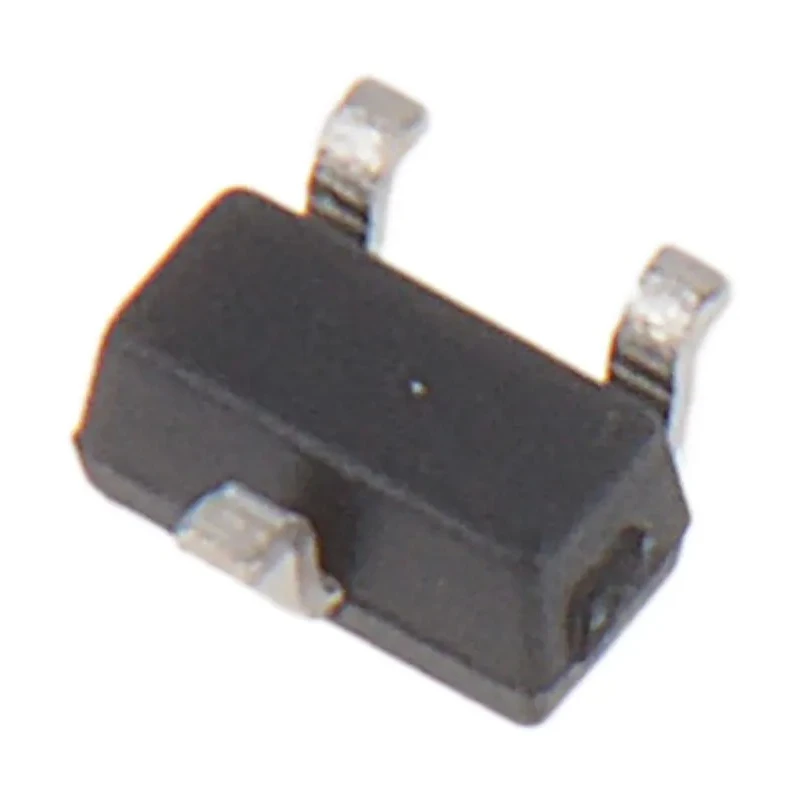

The transistor is housed in a compact SOT-523 surface mount package with 3 pins, facilitating easy integration into dense circuit boards. Its dimensions, approximately 1.7 mm in length, 1.75 mm width, and 0.9 mm height, allow for efficient PCB space management in electronic assemblies.

Designed for demanding industrial and automotive electronics, the BC847AT-7-F complies with AEC-Q101 automotive standards, ensuring operation reliability under harsh conditions and wide temperature ranges from -55 °C up to 150 °C. It is particularly useful in telecommunications, instrumentation, and consumer electronics for switching and signal amplification.

The device features a single NPN transistor configuration with a minimum DC current gain (hFE) of 110, making it suitable for analog and digital switching solutions. Its maximum power dissipation is rated at 150 mW.

This transistor is designed for surface mount applications. Maximum collector current of 100 mA ensures suitability for low power switching. Collector-emitter voltage is rated up to 45 volts. Features a transistor polarity of NPN with single transistor configuration.

Offers a maximum power dissipation of 150 mW in a small form factor. Supports automotive standard AEC-Q101 ensuring reliability in harsh automotive environments. Operating temperature range from -55 °C to 150 °C allows for versatile industrial use.

Compact dimensions of 1.7 mm length, 1.75 mm width, and 0.9 mm height enable space-saving PCB design. Pin count is 3, making it ideal for standard transistor circuit applications. Minimum DC current gain hFE of 110 provides effective amplification capabilities.

This small signal NPN transistor is optimized for applications in industrial electronics, HVAC controls, automotive electronics, instrumentation, and general-purpose switching circuits. Its surface mount configuration facilitates automated PCB assembly and high-density mounting.

EnvMart provides this DiodesZetex BC847AT-7-F transistor as a reliable component choice for engineers and designers requiring robust performance in compact electronic designs.
