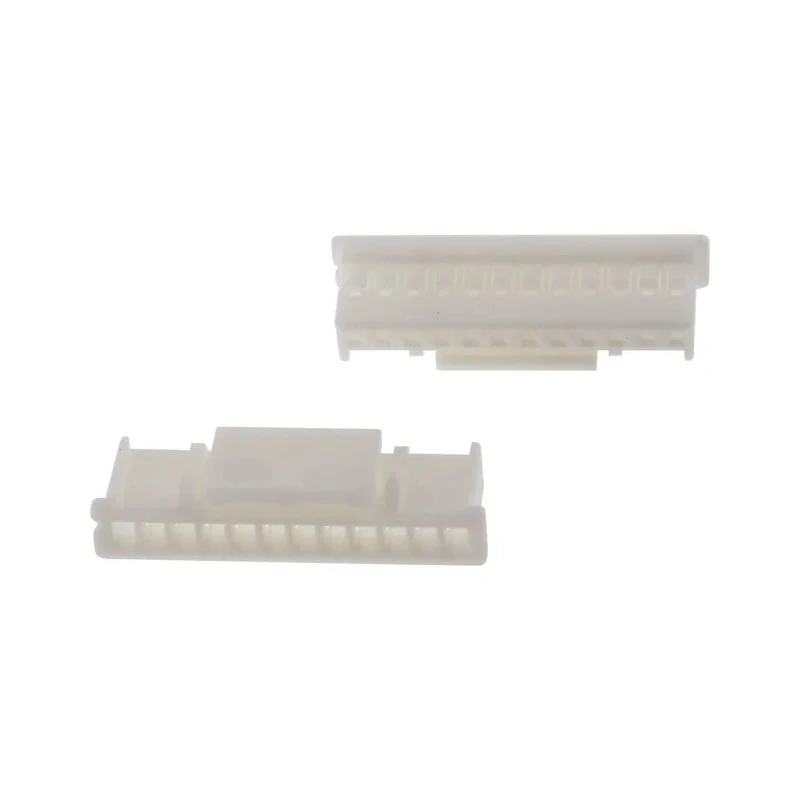

JST PA Female Connector Housing, 2 mm Pitch, 12 Way, 1 Row Straight PAP-12V-S

JST PAP-12V-S PA Female Connector Housing is a high-quality connector housing designed for wire to board connections with 2 mm pitch and 12 contacts arranged in a single row. It is constructed from durable nylon material that ensures strong insulation and mechanical robustness for long-lasting reliability in electronic assemblies.

This connector housing features a cable mount type and straight orientation, facilitating simple and effective assembly with compatible crimp connectors. The housing includes secure additional locking features and a thumb depress mechanism that prevents accidental disconnection, even in environments subject to vibration.

The compact dimensions of 26 mm length and 5.8 mm width enable it to be used in tight spaces commonly found in household appliances, industrial control systems, storage devices, and networking equipment. The connector is part of the PA series from JST, a well-known brand for reliable electronic components.

The design supports secure and vibration-resistant connections ensuring stable electrical performance. Being a top-entry connector, it allows easy polarised insertion and low insertion force pins, simplifying installation and maintaining connection integrity.

Features 12 contact positions arranged in a single row for efficient connectivity. Connectors have a pitch of 2 mm, suitable for compact PCB applications. Constructed with durable nylon housing to ensure longevity and insulation.

Additional locking features provide secure connection and vibration resistance. Suitable for cable mount type with straight orientation for easy assembly. Compatible for use with crimp connectors, enhancing wiring reliability.

Compact dimensions with 26 mm length and 5.8 mm width to fit various electronic assemblies. Commonly used in household appliances, industrial controls, storage, and networking systems. Provides wire to board connection with an effective locking mechanism to prevent accidental disconnection.

Part of the JST PA series, ideal for industrial and electronic component applications.

This Connector Housing is essential for applications requiring a reliable, compact, and vibration-resistant connector solution. It suits a broad range of industrial and commercial electronics environments including manufacturing, consumer electronics, and automation systems.
