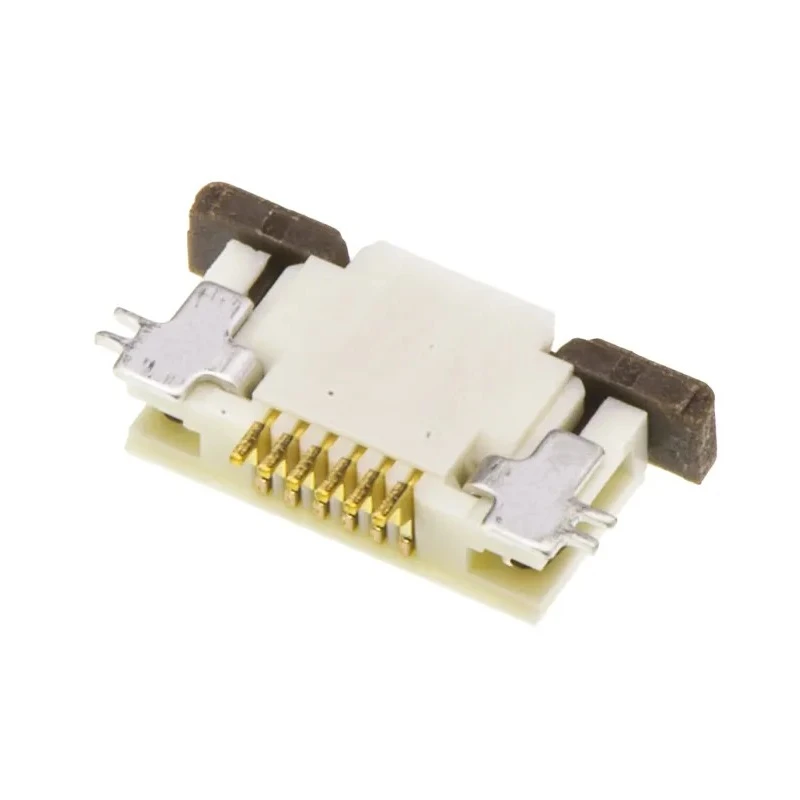

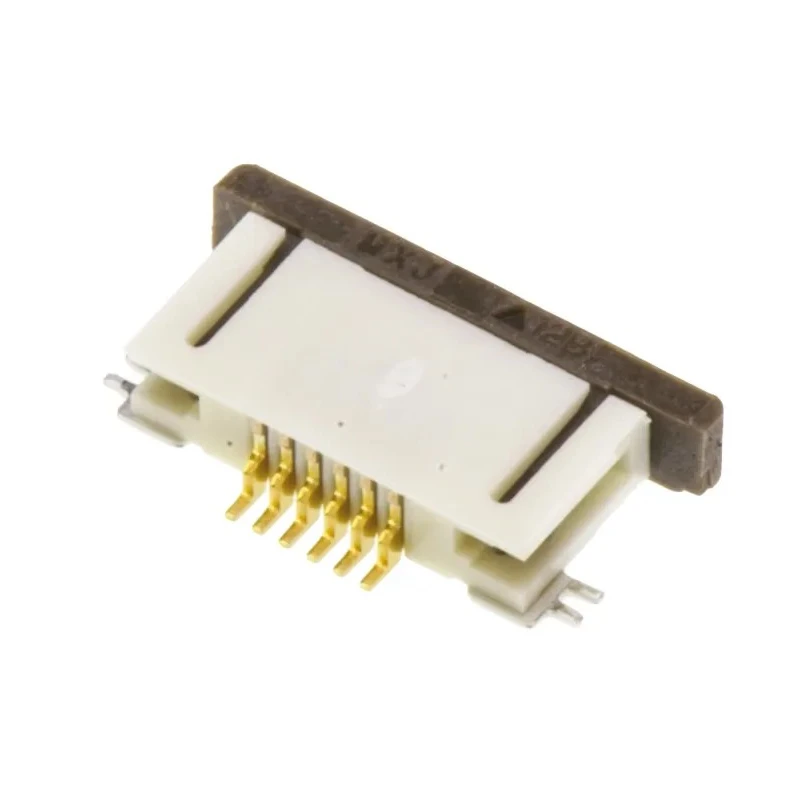

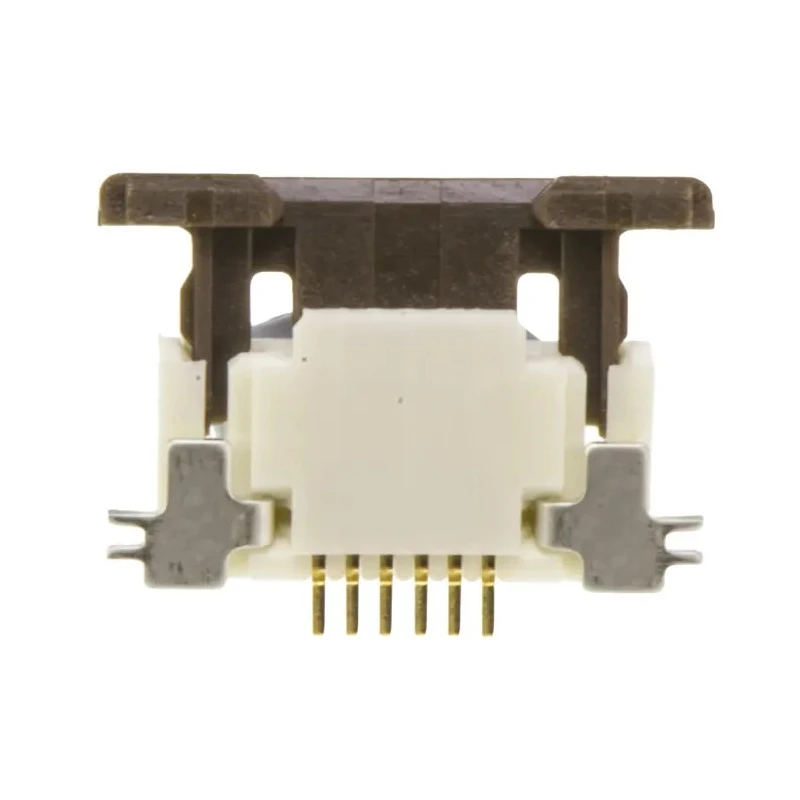

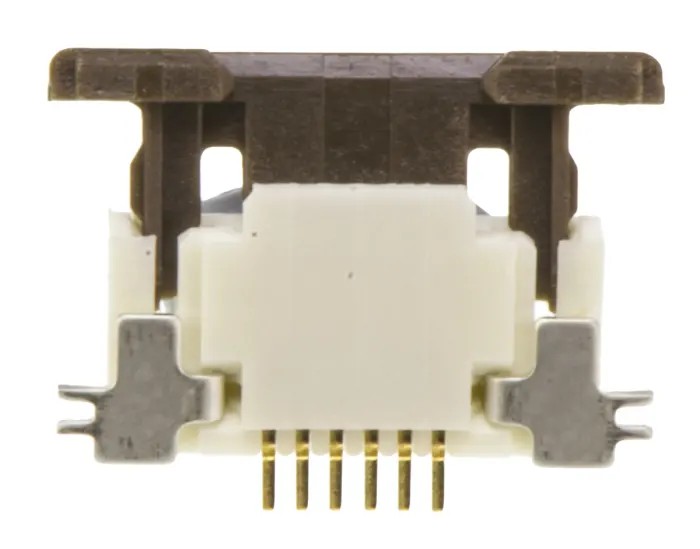

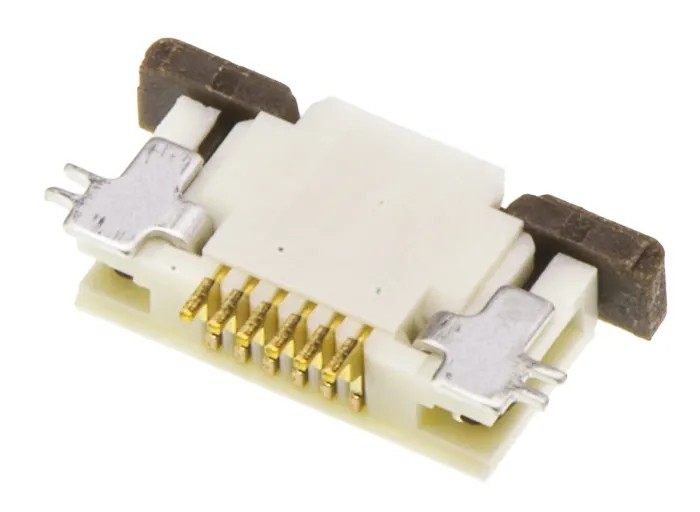

Molex 0.5 mm Pitch 6 Way Right Angle Female FPC Connector, Easy-On ZIF SMT, Nylon Housing, Gold over Nickel 52746-0671
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52746 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a 0.5 mm pitch with 6 contacts for precise connection.
- Right angle female connector with bottom contact position optimizes PCB layout.
- Nylon housing ensures durability and insulation.
- Gold over Nickel contact plating offers excellent conductivity and corrosion resistance.
- Utilizes slide type actuator with ZIF mechanism for minimal insertion force and secure retention.
- Supports currents up to 500mA and voltage up to 50V.
- Operates reliably within -20°C to 85°C temperature range.
- Solder termination type with solder tabs offers strain relief and secure PCB retention.
Product Description
Molex 52746-0671 is a 0.5 mm pitch, 6 way right angle female FPC connector with an Easy-On Zero Insertion Force (ZIF) surface mount design. Featuring a nylon housing and gold over nickel plated phosphor bronze contacts, this connector provides robust electrical and mechanical reliability for compact and space-saving PCB applications.
Its slide type actuator and movable contact design allow secure connection of flexible printed circuits while minimizing wear during repeated cycles. The right angle orientation and solder termination with solder tabs enable strain relief and ensure consistent PCB retention.
This connector operates safely between -20°C and 85°C, supports currents up to 500mA, and voltage up to 50V, making it suitable for signal and data interconnections in automotive navigation, digital cameras, mobile devices, medical electronics, and datacommunications equipment.
The 52746 series connectors are known for their reliable Easy-On mechanism that allows easier insertion and removal of the flexible printed circuits while maintaining excellent contact integrity under mechanical stress.
Key features include a compact low profile, high contact retention, and a locking mechanism for secure mating. The phosphor bronze contacts topped with gold over nickel plating ensure excellent conductivity and corrosion resistance, while the nylon housing provides electrical insulation and mechanical protection.
Compact and space-saving 0.5 mm pitch 6 way FPC connector. Easy-On ZIF slide type actuator reduces insertion force and wear. Right angle female connector with bottom contact position. Nylon housing with gold over nickel plated phosphor bronze contacts.
Solder tabs provide strain relief and secure PCB retention. Current rating up to 500mA and voltage rating up to 50V. Operating temperature range from -20°C to 85°C. Suitable for automotive, consumer electronics, datacommunications, medical, and mobile applications.
This product is manufactured in Japan by Molex and is ideal for use in industrial, laboratory, manufacturing, automotive, and consumer electronics applications requiring a reliable flat flexible cable connection with minimal PCB footprint.
Explore the full range of FPC Connectors and additional Molex electronic components for high-quality interconnection solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector features a 0.5 mm pitch and has 6 contacts.
It supports a maximum voltage of 50V and a current rating of up to 500mA.
The operating temperature range is from -20°C to 85°C.
The housing is made of nylon, and the contacts are phosphor bronze with gold over nickel plating.
The slide type actuator with ZIF mechanism minimizes insertion force and ensures secure retention of flexible printed circuits.
It utilizes a solder termination type with solder tabs for strain relief and secure PCB retention.
This model has a right angle orientation, which optimizes PCB layout.
It is suitable for applications in automotive navigation, digital cameras, mobile devices, medical electronics, and datacommunications equipment.
This connector is a female connector.
This model has 1 row of contacts.
The contact position is at the bottom of the connector.
This connector is manufactured in Japan.
