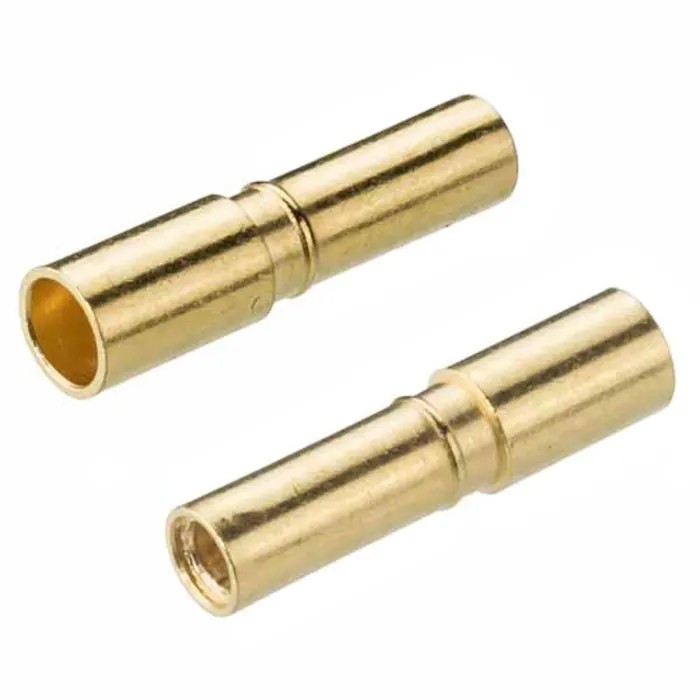

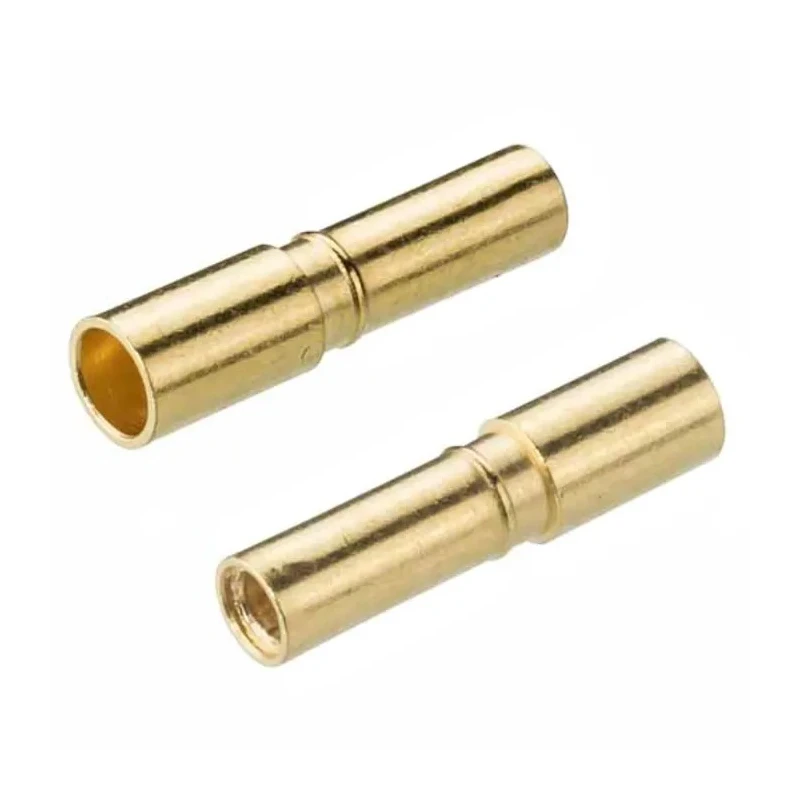

HARWIN M300 Series Female Crimp Terminal, 20 AWG Min Crimp, 18 AWG Max, Gold Plated, 10A, 2mm Length M300-0010045

Free Delivery in India | Lowest Global Shipping Charges

HARWIN M300 Series Female Crimp Terminal, 20 AWG Min Crimp, 18 AWG Max, Gold Plated, 10A, 2mm Length M300-0010045

Name: HARWIN M300 Series Female Crimp Terminal, 20 AWG Min Crimp, 18 AWG Max, Gold Plated, 10A, 2mm Length M300-0010045
Brand: HARWIN
SKU: 217180
Price: 1.87 USD
Availability: InStock



Category Crimp Terminal Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Brand	HARWIN
Current	10A
Length	2mm
Model	M300-0010045
Gender	Female
Contact Material	Beryllium Copper Alloy
Series	M300
Termination Type	Crimp
Maximum Operating Temperature	175°C
Minimum Operating Temperature	-65°C
For Use With	M300 Connector Housing
Contact Plating	Gold
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	20AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	6mΩ

Key Features

Gold plated contact ensures reliable conductivity and corrosion resistance.
Beryllium copper alloy contact material provides durability and strength.
Suitable for use with M300 Connector Housing series.
Termination is by crimping to ensure secure and permanent connection.
Operates reliably between -65°C to 175°C temperature range.
Compact 2mm length terminal suitable for high-density connections.
Maximum contact resistance of 6 milliohms for efficient electrical performance.
Manufactured in the United Kingdom ensuring quality and reliability.

Product Description

HARWIN M300-0010045 Female Crimp Terminal is a precision-engineered component intended for electronic and electrical assembly applications, supporting wire sizes from 20 AWG minimum to 18 AWG maximum. It is part of the high-reliability M300 connector system known for its 3.00mm pitch and robust performance.

The terminal's contact is gold-plated enhancing conductivity and resistant to corrosion, paired with the sturdy beryllium copper alloy material for longevity and mechanical strength. It supports up to 10 amperes current, making it suitable for a variety of electronic power connections.

Designed specifically to be used with M300 Connector Housings such as M300-2240696F2, M300-2241096F2, or M300-2250396F2, this female crimp terminal ensures secure and reliable connections via its crimp termination type.

Operating effectively in a wide temperature range from -65°C to 175°C, this terminal is ideal for demanding industrial, electronic, and power connector applications requiring durability under harsh environmental conditions.

The 2mm length offers compactness suitable for high-density PCB layout and wire harnesses, while maintaining compliance with technical standards and ensuring minimal contact resistance of 6 milliohms, reducing energy loss and heating.

Gold plated contact ensures reliable conductivity and corrosion resistance. Beryllium copper alloy contact material provides durability and strength. Compatible with M300 Connector Housings for integrated connectivity solutions.

Crimp termination type delivers secure, permanent wire connections. Wide operating temperature range from -65°C to 175°C ensures durability. Compact 2mm length suitable for dense electronic assemblies. Low contact resistance of 6mΩ enhances electrical performance.

Manufactured in the United Kingdom maintaining high quality standards.

This female crimp terminal is widely used in industrial automation, electronics manufacturing, telecommunications, and aerospace where reliable electrical connections are critical. It supports maintenance, repair, and assembly operations in complex electrical systems.
