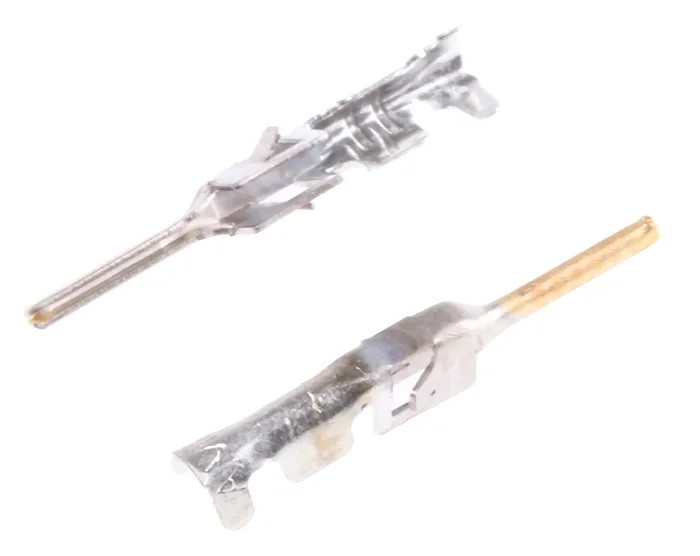

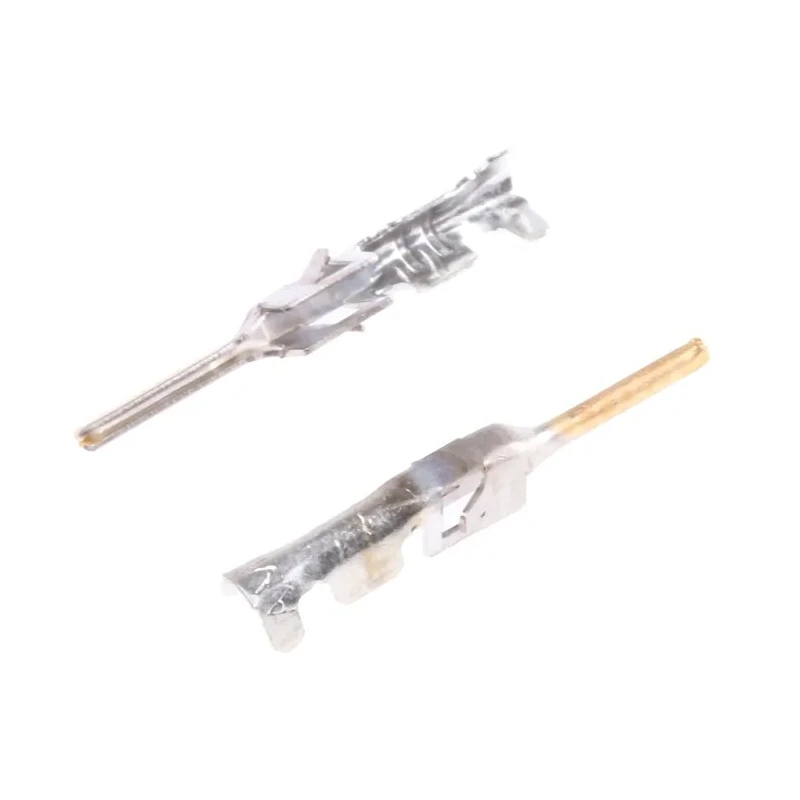

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, Gold Plated, Phosphor Bronze Contact, 24 AWG Min, 20 1-794612-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, Gold Plated, Phosphor Bronze Contact, 24 AWG Min, 20 1-794612-1

Name: TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, Gold Plated, Phosphor Bronze Contact, 24 AWG Min, 20 1-794612-1
Brand: TE Connectivity
SKU: 217811
Price: 0.12 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	5A
Gender	Male
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance mechanism for secure retention in housing
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Gold plated phosphor bronze contact ensures superior conductivity and corrosion resistance.
Compatible with Micro MATE-N-LOK connector housings for easy integration.
Dual beam contact design provides electrical reliability.
Locking lance mechanism guarantees secure retention within the housing.
Supports wire size range from 0.2mm² (24 AWG) to 0.5mm² (20 AWG).
Rated for operation between -40°C and 105°C for versatile applications.
Termination type is crimp, offering stable mechanical and electrical connection.
Maximum contact resistance is 20mΩ ensuring low loss connections.

Product Description

TE Connectivity 1-794612-1 Micro MATE-N-LOK Series male crimp terminal is engineered for industrial and electronic applications requiring secure and efficient wire connections. It features gold plated phosphor bronze contacts that provide excellent conductivity and resistance to corrosion. This Crimp Terminal supports wire sizes ranging from 24 AWG (0.2 mm²) minimum to 20 AWG (0.5 mm²) maximum, suitable for various wiring needs.

The terminal is designed to fit Micro MATE-N-LOK connector housings and employs a dual beam contact design to ensure electrical reliability during operation. A locking lance mechanism provides secure retention in the connector housing, preventing accidental disconnections. It is rated for a maximum current of 5 amperes and operates reliably in temperatures ranging from -40°C to 105°C.

The termination is by crimping, allowing for a durable mechanical and electrical bond with the wire. The maximum contact resistance is 20 milliohms, which supports low-loss electrical connections. These features make the product suitable for use in industrial, manufacturing, electronic instrumentation, and consumer product assembly environments.

Gold plated phosphor bronze provides excellent electrical performance and corrosion resistance. Dual beam contact design ensures stable and reliable connectivity. Locking lance mechanism ensures contacts are held firmly in place.

Wide wire size compatibility with 24 to 20 AWG cables. Rated for 5A current with operating temperature from -40°C to 105°C. Crimp termination type offers strong wire retention and conductivity. Ideal for electronic components, industrial connectors, and wiring harnesses.
