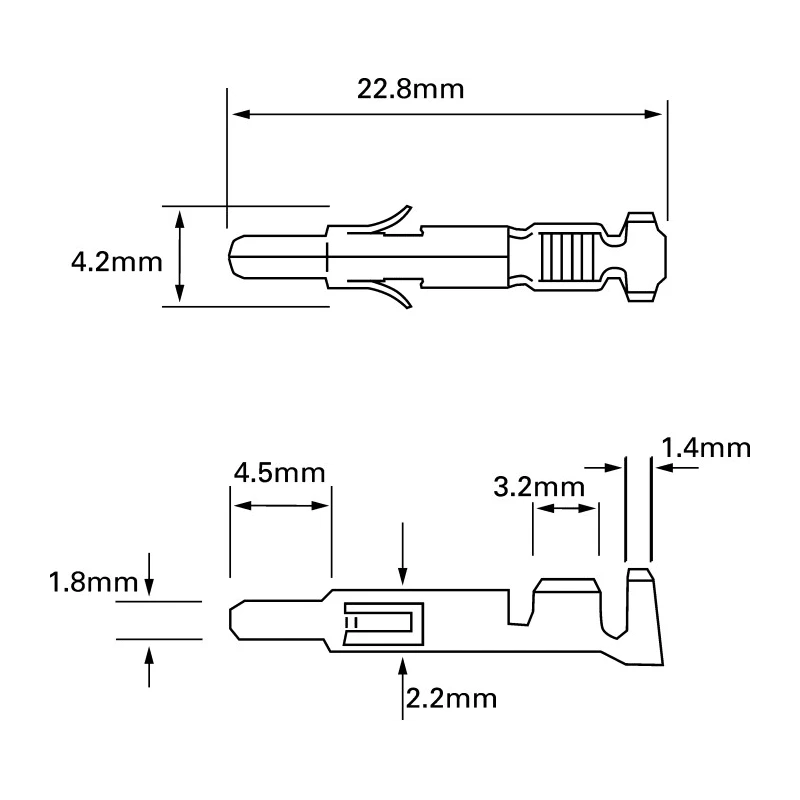

TE Connectivity Universal MATE-N-LOK Series Male Crimp Terminal 19A Current, 24-18 AWG Wire Size 350690-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Universal MATE-N-LOK Series Male Crimp Terminal 19A Current, 24-18 AWG Wire Size 350690-2

Name: TE Connectivity Universal MATE-N-LOK Series Male Crimp Terminal 19A Current, 24-18 AWG Wire Size 350690-2
Brand: TE Connectivity
SKU: 217815
Price: 1.17 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	19A
Temperature range	-55 to +105 °C
Length	20.83mm
Model	350690-2
Gender	Male
Contact Material	Brass
Series	Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Insulation resistance	1000 MΩ
Minimum Operating Temperature	-55°C
For Use With	Universal MATE-N-LOK Connector Housing
Contact Resistance	3.5 mΩ
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Mating Cycles	50
PCB Headers	12
Insulation Material UL94V-2	Natural polyamide
Insulation Material UL94V-0	White opaque Nylon 6.6

Key Features

The male crimp terminal is designed for use with Universal MATE-N-LOK connector housings.
Offers a current rating of 19A ensuring reliable electrical performance.
Compatible with wire sizes from 0.2 mm² (24 AWG) up to 0.8 mm² (18 AWG).
Features gold plating on brass contact material to optimize conductivity and resist corrosion.
Terminated via crimping for secure wire connections.
Operates effectively within a temperature range of -55°C to +105°C.
Measuring 20.83mm in length for precise installation.
Suitable for applications in consumer electronics, commercial, HVAC, power supplies, portable devices, and lighting.

Product Description

TE Connectivity 350690-2 Male Crimp Terminal is part of the Universal MATE-N-LOK Series, offering robust electrical connectivity solutions for industrial and commercial applications. Rated for 19A current with compatibility for wire sizes from 24 AWG minimum to 18 AWG maximum, this crimp terminal is engineered for use with Universal MATE-N-LOK connector housings.

The contact is constructed from brass with gold plating to enhance conductivity and corrosion resistance, ensuring reliable and long-lasting performance. The terminal length is precisely 20.83mm, facilitating proper fitment in 2 to 15 way connector packages. The male contact comes in rigid and split versions, optimizing connector insertion force and performance based on application requirements.

Designed to operate within temperature extremes from -55°C to +105°C, it is ideal for challenging environments in consumer electronics, HVAC systems, power supplies, portable devices, and lighting industries. The insulation materials include natural polyamide (UL94V-2) and white opaque Nylon 6.6 (UL94V-0), delivering durable electrical isolation.

The electrical specifications include a contact resistance of 3.5 mΩ, insulation resistance of 1000 MΩ, and voltage rating of 600 Vac/dc. Rated for 50 mating cycles, this terminal supports repeated connections and disconnections without performance loss.

The male crimp terminal is designed for Universal MATE-N-LOK connector housings. Current rating of 19A suits moderate power applications. Wire size support from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²). Brass contact with gold plating enhances electrical conductivity and corrosion resistance.

Operates between -55°C and +105°C temperature range. Length of 20.83mm supports precise mechanical integration. Insulation materials conform to UL94V-2 and UL94V-0 standards. Provides electrical insulation resistance of 1000 MΩ and contact resistance of 3.5 mΩ.

Designed for 50 mating cycles for durability. Applicable in consumer electronics, commercial, HVAC, power supplies, portable devices, and lighting sectors.

This TE Connectivity Universal MATE-N-LOK Series product is a dependable crimp terminal choice for secure and efficient electrical connections. Explore more products in the Crimp Terminal category at EnvMart for comprehensive connectivity solutions.
