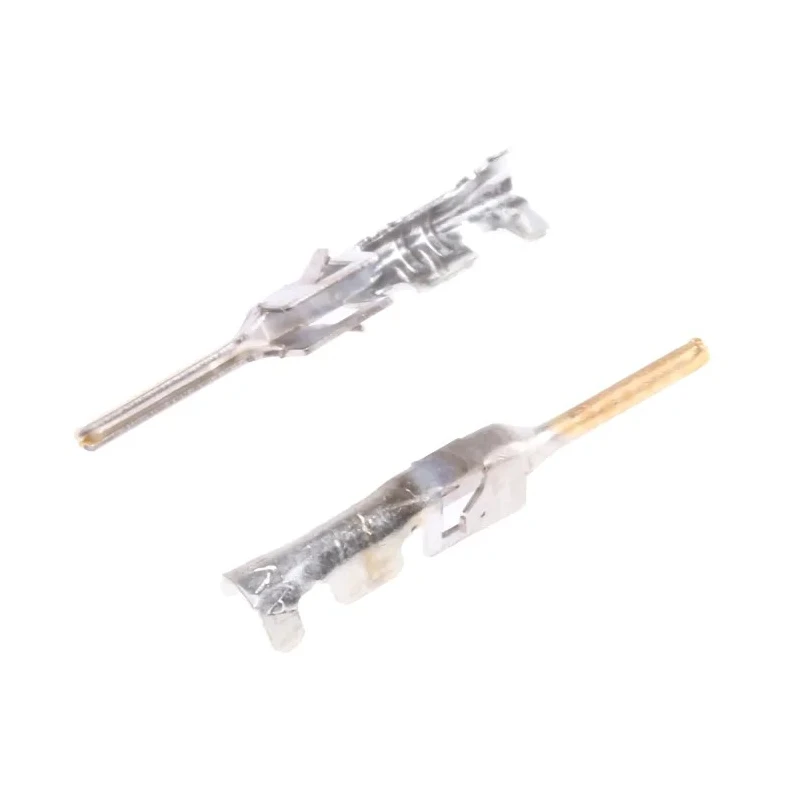

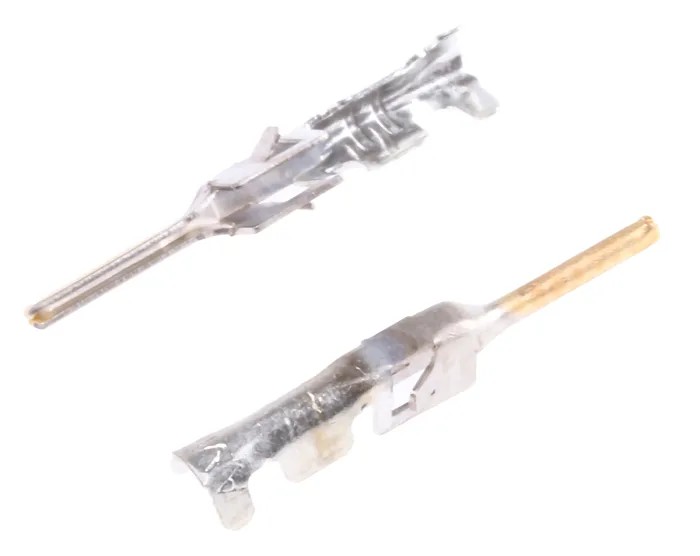

TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794612-1

Name: TE Connectivity Micro MATE-N-LOK Series Male Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 1-794612-1
Brand: TE Connectivity
SKU: 217813
Price: 0.14 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	5A
Gender	Male
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Interfaces	lance mechanism for secure retention in housing
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Gold
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Features a dual beam contact design for enhanced electrical reliability.
Locking lance mechanism ensures secure retention within the connector housing.
Gold plating provides excellent conductivity and corrosion resistance.
Supports a current rating of up to 5A for versatile use.
Compatible with Micro MATE-N-LOK connector housings.
Constructed from high-quality phosphor bronze contact material.
Rated for operating temperatures from -40°C to 105°C.
Ideal for wire termination via crimping in electronic and industrial applications.

Product Description

TE Connectivity 1-794612-1 Micro MATE-N-LOK Series Male Crimp Terminal is designed for use with Micro MATE-N-LOK connector housings, offering reliable and secure electrical connections with a current rating of 5A and wire size range from 24 AWG to 20 AWG. Its dual beam contact design ensures consistent electrical contact while the locking lance mechanism provides secure retention within the connector.

Manufactured from phosphor bronze with gold plating, these contacts offer excellent conductivity and corrosion resistance, suitable for demanding industrial and electronic environments. The crimp termination type facilitates fast and reliable wire termination with insulation diameters up to 1.52 mm.

This connector system features a low profile design that is ideal for applications such as LED lighting, industrial automation, and consumer electronics, supporting wire-to-wire and wire-to-board configurations. Operating temperature ranges from -40°C to 105°C, making it versatile for various operational conditions.

The Micro MATE-N-LOK 3 mm connector system includes plugs, receptacles, and PCB headers on a 3 mm centerline, enabling wide applicability in industrial, manufacturing, laboratory, and commercial use cases.

Features a dual beam contact design for enhanced electrical reliability. Locking lance mechanism ensures secure retention within the connector housing. Gold plating provides excellent conductivity and corrosion resistance.

Supports a current rating of up to 5A for versatile use. Compatible with Micro MATE-N-LOK connector housings. Constructed from high-quality phosphor bronze contact material. Rated for operating temperatures from -40°C to 105°C.

Ideal for wire termination via crimping in electronic and industrial applications. Low profile design suitable for LED lighting and consumer electronics. Supports wire-to-wire and wire-to-board connections. Explore the full range of TE Connectivity connectors and crimp contacts on EnvMart to find compatible components for your electrical and electronic systems.
