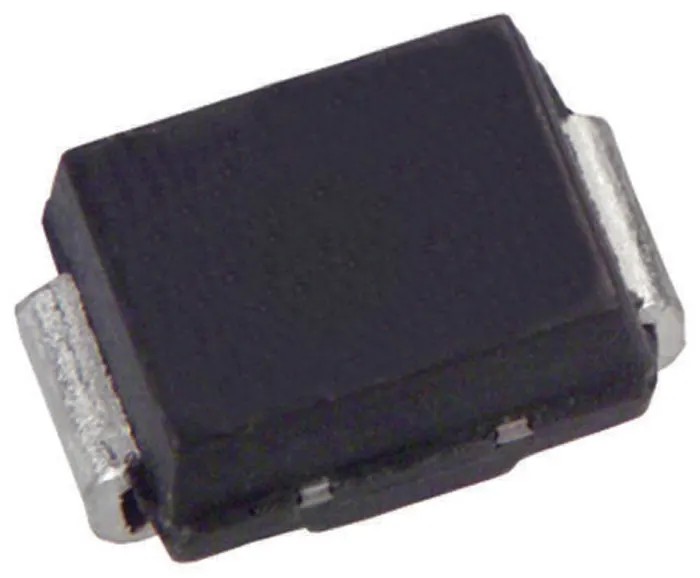

Vishay 1-Element Uni-Directional TVS Diode, 600 W, 2-Pin DO-214 SM6T33A-E3/52
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | SM6T33A-E3/52 |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 59V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 31.4V |
| Maximum Reverse Stand-off Voltage Vwm | 28.2V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 68A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- High peak pulse power dissipation of 600 watts for robust transient voltage suppression.
- Single diode configuration designed for uni-directional surge protection.
- Operating temperature range from -65°C to 150°C suitable for harsh environments.
- Clamping voltage of 59 V with a minimum breakdown voltage of 31.4 V ensures sensitive response.
- Compact surface mount DO-214 package measuring 4.57 mm in length and 3.94 mm in width.
- Complies with automotive standard AEC-Q101 for reliable use in automotive circuits.
- Maximum reverse leakage current of 1 microampere providing low standby power consumption.
- Peak pulse current capability of 68 amperes to protect downstream components effectively.
Product Description
Vishay SM6T33A-E3/52 1-Element Uni-Directional TVS Diode provides effective transient voltage suppression with a peak pulse power dissipation rating of 600 W. Housed in a compact surface mount DO-214 package with 2 pins, this diode offers reliable protection against voltage spikes in sensitive electronics.
The device features a single diode uni-directional configuration with a minimum breakdown voltage of 31.4 V and a clamping voltage of 59 V, making it suitable for transient current surges up to 68 A. Its wide operating temperature range from -65°C to 150°C allows use in demanding industrial, automotive, and electronic applications.
The diode's low leakage current of 1 µA enhances efficiency, while compliance with the automotive AEC-Q101 standard confirms its suitability for automotive electronics protection. The device length is 4.57 mm, width is 3.94 mm, and height is 2.24 mm, accommodating compact PCB designs.
Designed for surface mount technology, this robust TVS diode effectively safeguards circuits from electrostatic discharge and voltage transients, enhancing the longevity and reliability of electrical and electronic systems in industrial, automotive, communication, and consumer electronics fields.
High peak pulse power dissipation of 600 W ensures robust transient voltage suppression. Single uni-directional diode configuration for precise surge protection. Wide operating temperature range from -65°C to 150°C. Automotive standard AEC-Q101 certified for high-reliability applications.
Compact DO-214 surface mount package with 2 pins. Low reverse leakage current of 1 µA minimizes power loss. Effective ESD protection for sensitive electronics. Length 4.57 mm, width 3.94 mm, and height 2.24 mm form factor compatible with compact circuit boards.
This TVS Diode is ideal for use in industrial power connectors, automotive electronic modules, telecommunication equipment, and other applications requiring transient voltage suppression. Its compact size combined with high performance makes it suitable for modern surface mount electronic devices.
Browse more semiconductor solutions from Vishay on EnvMart for trusted quality and performance in electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this TVS diode is rated at 600 watts, providing robust transient voltage suppression.
The clamping voltage of this model is 59 volts, ensuring effective protection during transient events.
It operates within a temperature range of -65°C to 150°C, making it suitable for harsh environments.
The maximum peak pulse current capability of this diode is 68 amperes, which helps protect downstream components effectively.
The minimum breakdown voltage is 31.4 volts, allowing for sensitive response to voltage spikes.
This diode is housed in a DO-214 package, measuring 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
It complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The maximum reverse leakage current is 1 microampere, which minimizes power loss during operation.
This model features a 2-pin configuration, suitable for surface mount applications.
It utilizes a single diode configuration designed for uni-directional surge protection.
The test current for this model is 1 mA, which is used for evaluating its performance characteristics.
The country of origin for this diode is India.
