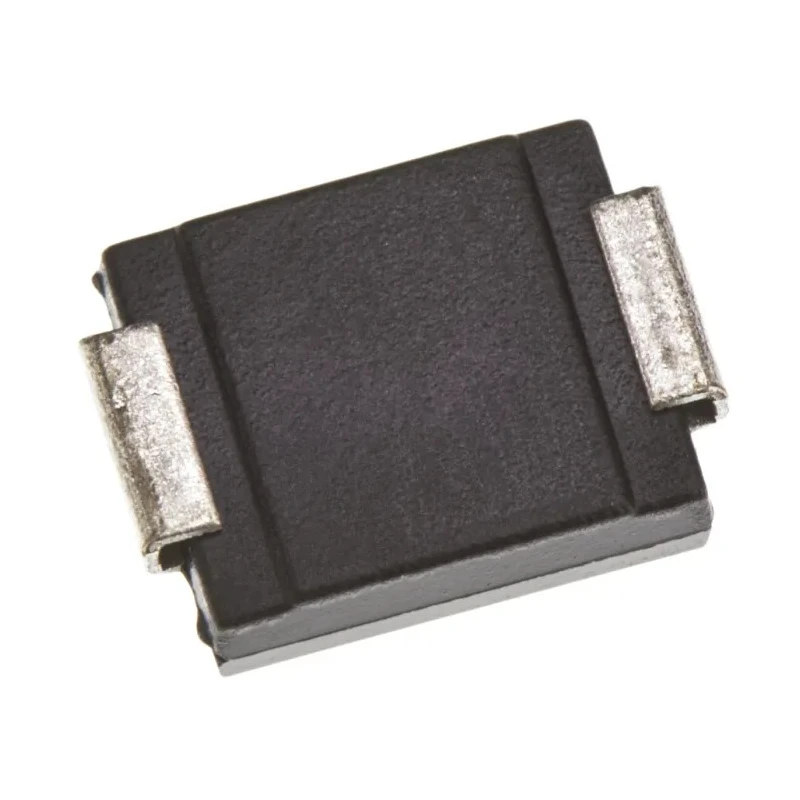

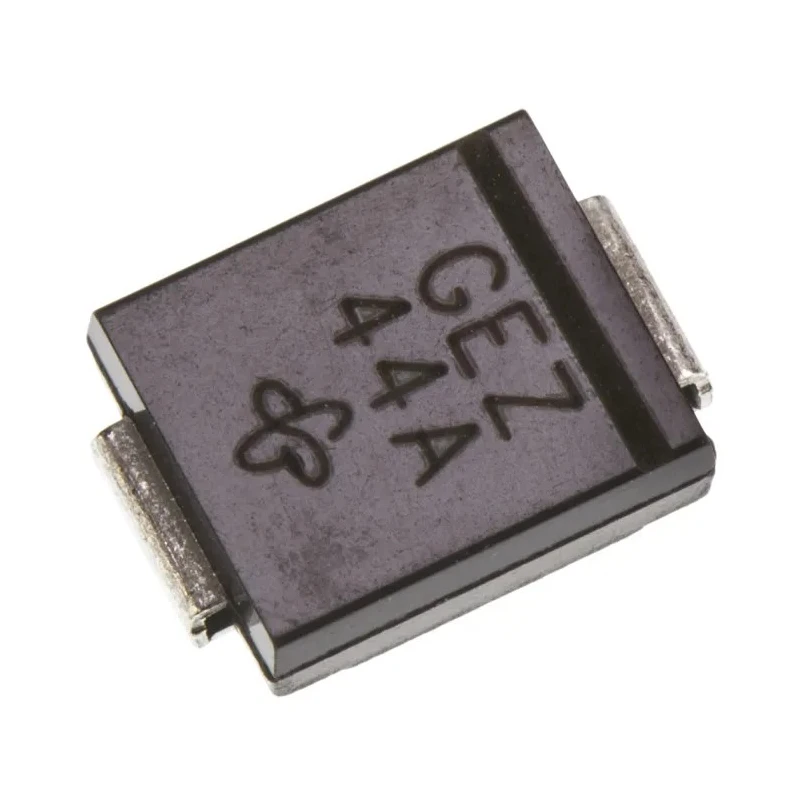

Vishay 1-Element Uni-Directional TRANSZORB TVS Diode 1.5 kW, Surface Mount DO-214 Package, Model SMCJ24A-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ24A-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 38.9V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 26.7V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 38.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single diode configuration designed for transient voltage suppression.
- Uni-directional operation suitable for protecting sensitive circuits.
- Minimum breakdown voltage of 26.7 V with a maximum reverse stand-off voltage of 24 V.
- Clamping voltage of 38.9 V ensures effective surge voltage limitation.
- Operational temperature range from -55°C to 150°C for reliability in harsh environments.
- High peak pulse current capacity up to 38.6 A for robust transient protection.
- Automotive standard compliance AEC-Q101 guarantees quality and reliability.
Product Description
Vishay SMCJ24A-E3/57T is a 1-Element Uni-Directional TRANSZORB Transient Voltage Suppressor designed for surface mount applications requiring effective protection against transient voltage surges. This TVS diode provides reliable surge suppression with a peak pulse power dissipation rating of 1.5 kW within a DO-214 package, which is well-suited for compact electronic assemblies.
The device features a minimum breakdown voltage of 26.7 V and a maximum reverse stand-off voltage of 24 V, enabling it to clamp voltage spikes efficiently at a clamping voltage of 38.9 V. Its uni-directional configuration makes it ideal for protecting sensitive electronic circuits from voltage transients in power management, automotive, and industrial environments.
Designed to operate across a wide temperature range from -55°C to 150°C, the diode assures performance stability and longevity under extreme conditions. It supports a high peak pulse current of 38.6 A, providing robust protection against ESD and other transient events. Compliance with the AEC-Q101 automotive standard underscores its suitability for demanding automotive systems and industrial applications.
The SMCJ24A-E3/57T's compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height allow easy integration into space-constrained printed circuit boards using surface mount technology. Its low maximum reverse leakage current of 1 μA minimizes power loss during normal operation.
Single diode configuration enhancing protection capabilities. Uni-directional transient voltage suppression for targeted circuit safeguarding. 1.5 kW peak pulse power dissipation suitable for demanding transient conditions.
Wide operating temperature range for versatility in harsh environments. Compliance with automotive AEC-Q101 quality standards.
This TVS Diode is ideal for industrial, automotive, power management, and general electronics applications requiring efficient and reliable transient voltage suppression. Explore more Vishay semiconductor products and solutions in the EnvMart catalog for comprehensive electronic component procurement.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of the SMCJ24A-E3/57T is 1.5 kW, making it suitable for demanding transient conditions.
The clamping voltage of this diode is 38.9 V, which helps in efficiently clamping voltage spikes.
The maximum reverse stand-off voltage for this diode is 24 V, allowing it to handle voltage transients effectively.
The minimum breakdown voltage of the SMCJ24A-E3/57T is 26.7 V, which is essential for its transient voltage suppression capability.
It can handle a maximum peak pulse current of 38.6 A, providing robust protection against transient events.
The operational temperature range for the SMCJ24A-E3/57T is from -55°C to 150°C, ensuring reliability in harsh environments.
This diode comes in a DO-214 package type, which is suitable for surface mount applications.
The SMCJ24A-E3/57T features a single diode configuration, designed for effective transient voltage suppression.
This model complies with the AEC-Q101 automotive standard, ensuring its quality and reliability for automotive applications.
The maximum reverse leakage current for the SMCJ24A-E3/57T is 1 μA, which minimizes power loss during normal operation.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
The SMCJ24A-E3/57T uses a uni-directional configuration, making it suitable for protecting sensitive circuits from voltage transients.
