| Country of Origin | India |
|---|---|
| Diameter | 1.91mm |
| Brand | onsemi |
| Height | 4.56mm |
| Model | 1N3595 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-35 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 150V |
| Diode Configuration | Single |
| Rectifier Type | Small Signal |
| Peak Reverse Current Ir | 3μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 4A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 3μs |
| 1N3595 | High Conductance Fast Diode |

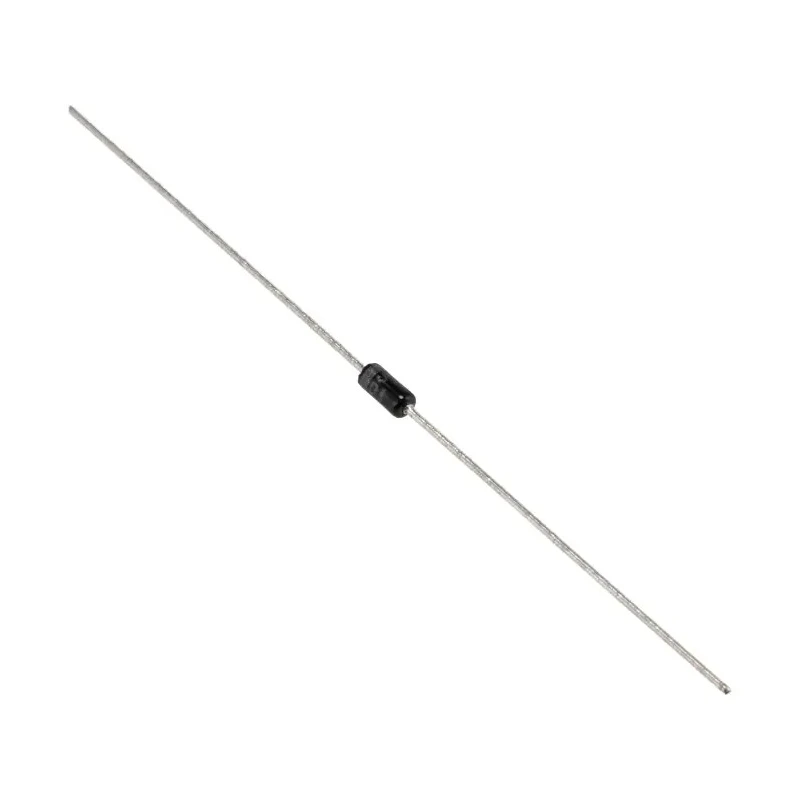

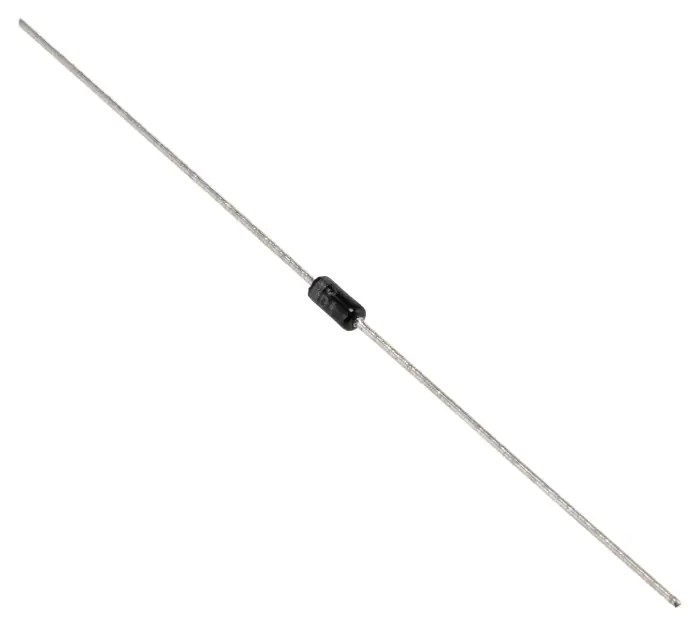

The onsemi 1N3595 is a small signal diode with a DO-35 through-hole package, engineered for high conductance and fast switching applications.
This diode is rated for a maximum continuous forward current of 200 mA and can withstand a peak reverse repetitive voltage of 150 V, making it suitable for various electronic circuits including signal processing, switching, and rectification.
With a low peak reverse current of 3 μA and a maximum forward voltage of 1 V, it ensures efficient performance and reduced power loss in sensitive electronic applications.
The diode can handle peak non-repetitive forward surge currents up to 4 A and features a fast peak reverse recovery time of 3 microseconds, which is beneficial for high-frequency switching scenarios.
Designed for durability, it supports maximum operating temperatures up to 175°C, suitable for demanding industrial environments. This diode supports a maximum continuous forward current of 200 mA. It has a peak reverse repetitive voltage rating of 150 V for reliable blocking performance.
The diode features a low peak reverse current of 3 μA, enhancing efficiency. It offers a maximum forward voltage drop of 1 V, minimizing power loss. The package type is DO-35 with through-hole mount for easy PCB assembly.
Peak non-repetitive forward surge current can reach up to 4 A. The device has a fast peak reverse recovery time of 3 μs for efficient switching. It operates reliably up to a maximum temperature of 175°C. The diode dimensions are compact with a height of 4.56 mm and diameter of 1.91 mm.
Designed without specific standards or automotive approvals, suitable for general use.
This small signal diode is ideal for industrial, commercial, and laboratory electronics requiring reliable rectification and switching performance. It can be integrated into semiconductor circuits, power supplies, instrumentation, and communication equipment.
