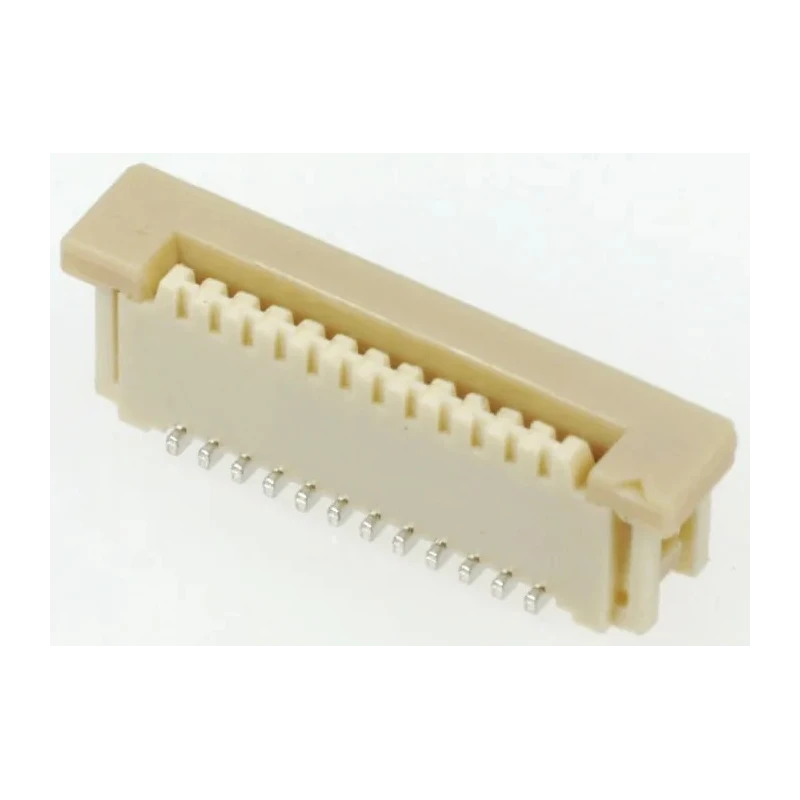

Molex 1 mm Pitch 22 Way Straight Female FPC Connector, Solder, Surface Mount, 1A Current, 125V AC Voltage 52610-2272
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52610 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 22 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Vertical |
Key Features
- Features a space-saving design suitable for tight packaging applications.
- Equipped with a slide type actuator providing secure FPC insertion.
- Utilizes phosphor bronze contacts plated with gold over nickel for durability.
- Supports a current rating of 1A and a voltage rating of 125V AC.
- Constructed with a nylon housing for electrical insulation and durability.
- Operates reliably within temperature ranges from -40°C to 85°C.
- Vertical contact position with solder termination ensures secure PCB connections.
- Incorporates locking mechanism for secure mating.
Product Description
Molex 52610-2272 is a precision 1 mm pitch 22 way straight female FPC connector designed for surface mount solder applications. It offers a space-saving design ideal for use in compact electronic assemblies requiring reliable flexible printed circuit connections.
The connector features a slide type actuator ensuring secure and easy insertion of the FPC cable, with contacts made of phosphor bronze plated with gold over nickel to provide excellent conductivity and wear resistance. Its nylon housing delivers mechanical strength and electrical insulation.
Rated at 1A current and 125V AC voltage, this connector operates reliably over a temperature range of -40°C to 85°C, suitable for demanding automotive, consumer electronics, medical devices, mobile phones, and telecommunications equipment.
Contact position is vertical with a straight orientation, and the device includes a locking mechanism for secure mechanical retention. The solder termination type with surface mount technology facilitates robust PCB attachment, enhanced by solder tabs that provide strain relief.
The design supports zero insertion force (ZIF) for repeat cycling, reducing wear and extending connector life. It is part of the 52610 series connectors renowned for durability and ease of use in tight packaging applications.
Space-saving design suitable for compact layouts. Slide actuator for secure, easy FPC insertion. Phosphor bronze contacts plated with gold over nickel. Rated 1A current and 125V AC voltage. Nylon housing with excellent mechanical and electrical properties.
Temperature range from -40°C to 85°C. Vertical contact position with straight orientation. Locking mechanism enhances retention reliability. Solder termination type compatible with SMT PCB mounting. Ideal for automotive, consumer electronics, medical, and data communications markets.
This connector is a reliable component choice for industrial, laboratory, telecommunications, and manufacturing applications requiring high performance flexible printed circuit connections. Browse the FPC Connectors category on EnvMart for related products and technical resources.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 1A and a voltage rating of 125V AC.
It operates reliably within a temperature range of -40°C to 85°C.
The housing is made of nylon, and the contacts are phosphor bronze plated with gold over nickel.
This model features 22 contacts arranged in a single row.
It utilizes solder termination, suitable for surface mount technology (SMT) PCB mounting.
The contact position is vertical with a straight orientation.
Yes, it incorporates a locking mechanism to enhance retention reliability during use.
The pitch size of this connector is 1 mm.
It is suitable for automotive, consumer electronics, medical devices, mobile phones, and telecommunications equipment.
This connector is part of the 52610 series.
The country of origin for this connector is India.
It features a slide type actuator that ensures secure and easy insertion of the FPC cable.
