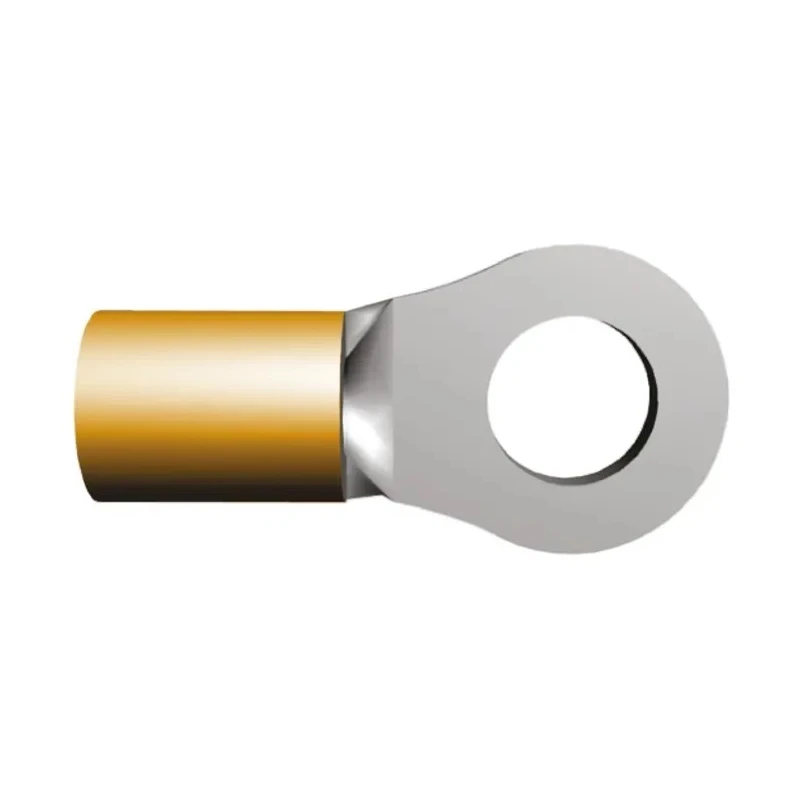

TE Connectivity STRATO-THERM Insulated Ring Terminal M2.5 Stud Size 22 AWG to 16 AWG Wire Size Orange 321884

TE Connectivity 321884 STRATO-THERM insulated ring terminal is engineered for high temperature electrical applications requiring reliable and safe wire terminations. Designed for use with 22 AWG to 16 AWG wire sizes and a stud size of M2.5, this product features an orange insulated body suitable for easy identification in wiring assemblies.

The ring terminal is manufactured with a copper contact material plated in nickel, providing excellent electrical conductivity and corrosion resistance. Its insulation ensures protection against accidental shorts and enhances operator safety. The terminal's compact overall length of 11.4 mm combined with an inner ring diameter of 3.02 mm and outer diameter of 5.54 mm enables secure and precise fastening in demanding electrical connections.

These terminals are designed to withstand extreme operating temperatures up to 649°C (1200°F), making them ideal for use in industrial, manufacturing, HVAC systems, and high-temperature electrical environments. The thickness of 0.79 mm gives additional mechanical strength to withstand vibration and mechanical stress during operation.

The product is compatible with solid and stranded conductors. When crimped, the wire is forced into the serrated barrel to maximize electrical contact area, ensuring consistent performance.

TE Connectivity STRATO-THERM terminals are used widely in electronics components assembly, power connectors, and wire terminal applications requiring durability and high thermal stability.

Operates at maximum temperature of 649°C for extreme heat resistance. Constructed with solid copper contact material to provide excellent electrical conductivity. Nickel plating on contact enhances corrosion resistance and durability.

Insulated design ensures safety and prevents short circuits. Suitable for solid and stranded conductors in demanding industrial environments. Compact overall length of 11.4 mm fits tight installation spaces. Inner ring diameter is 3.02 mm and outer ring diameter is 5.54 mm for precise fitting.

Thickness of 0.79 mm provides reliable mechanical strength.

This terminal improves production efficiency by providing a reliable, high-quality termination solution for electrical wiring. It is packaged ready for insertion into machinery, suitable for industrial, electronic, and HVAC applications requiring high-temperature resistance.
