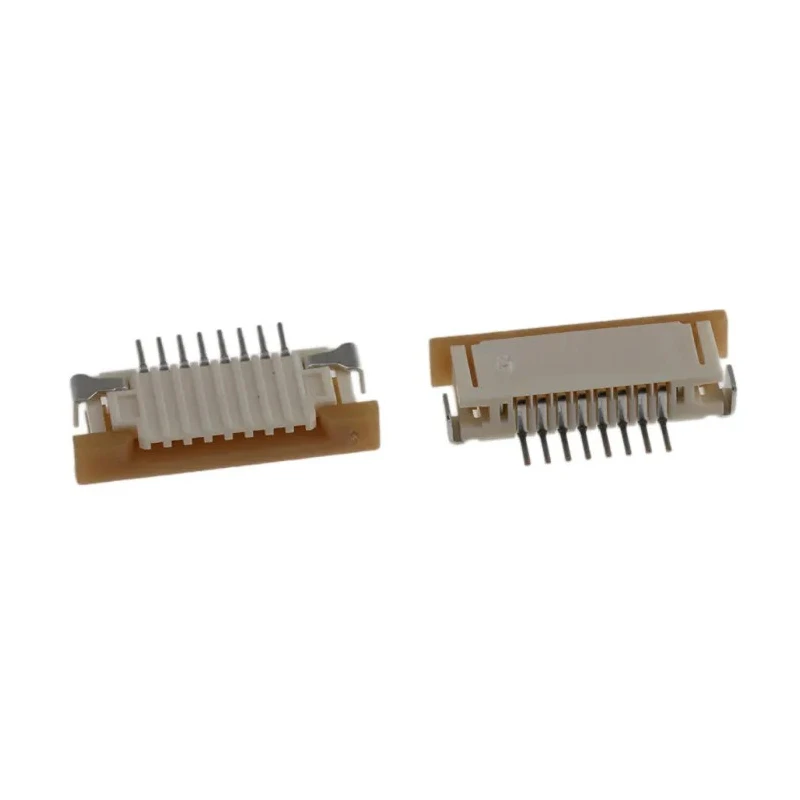

Molex 1 mm Pitch 8 Way Right Angle Female FPC Connector, Solder 52271-0869
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50, 50V ac |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52271 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Features a space-saving design ideal for compact applications.
- Incorporates a Zero Insertion Force (ZIF) slide type actuator for secure connection and easy insertion.
- Contacts are gold plated over nickel to ensure reliable electrical performance.
- Constructed with phosphor bronze contacts and nylon housing for durability.
- Operates at a voltage of 50V AC with a current rating of 500mA.

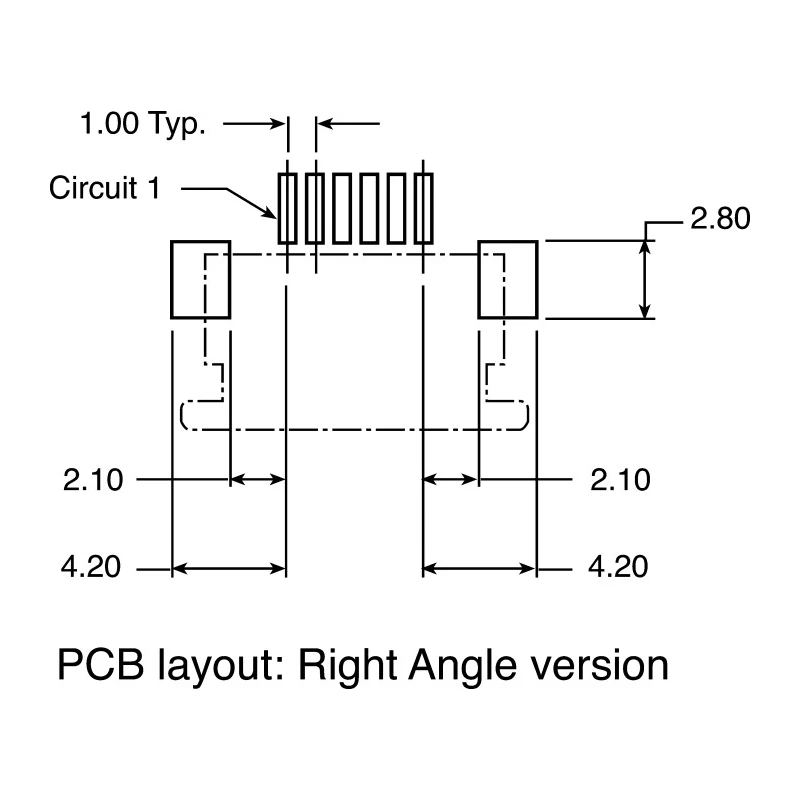

- Designed for surface mount PCB applications with right angle orientation and bottom contact position.
- Includes solder tabs for secure PCB retention and strain relief.
- Supports operating temperature range from -20°C to 85°C.
Product Description
The Molex 52271-0869 is a high-quality 8 way right angle female FPC connector with a 1 mm pitch designed for solder termination on printed circuit boards. As part of the 52271 series, this connector offers a space-saving design that is particularly suited for tight packaging applications in various industries such as automotive, consumer electronics, datacommunications, medical, and mobile devices.
This connector features a ZIF (Zero Insertion Force) slide type actuator which rotates 30° to enable easy insertion of the FPC cable while maintaining a secure and reliable electrical contact even when the cable is subjected to movement. The contacts consist of phosphor bronze with gold plating over nickel, providing excellent conductivity and corrosion resistance. The nylon housing offers robust mechanical protection and precise alignment guides for the FPC cable.
Designed for surface mount technology, the connector mounts on the PCB at a right angle with contacts located at the bottom side. Solder tabs present on the base provide strain relief and improve the mechanical retention of the connector on the PCB, enhancing reliability under mechanical stress.
Its electrical specifications include an operating voltage of 50 V AC and a current rating of 500 mA, suitable for low power applications. The connector also supports a wide temperature range from -20°C to 85°C, suitable for various environmental conditions.
Typical applications for the Molex 52271-0869 include automotive navigation systems, digital cameras, mobile phones, GPS devices, tablets, notebooks, patient monitors, and home security systems.
Space-saving design fits compact electronic devices. ZIF slide actuator ensures easy and reliable FPC insertion. Gold over nickel contact plating for enhanced conductivity. Durable phosphor bronze contacts with nylon housing.
Supports 50V AC voltage and 500mA current rating. Right angle surface mount with bottom contact position. Solder tabs provide PCB retention and strain relief. Operates within -20°C to 85°C temperature range. Locking mechanism enhances connection security.
This connector is an essential component for compact electronic assemblies requiring reliable FPC cable connections. Browse the FPC Connector category at EnvMart for more options from Molex and other trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 500mA, making it suitable for low power applications.
The connector operates at a voltage of 50V AC.
It features phosphor bronze contacts with gold plating over nickel and a nylon housing.
This unit supports an operating temperature range from -20°C to 85°C.
The Molex 52271-0869 utilizes solder termination for secure connections on printed circuit boards.
The connector has a pitch of 1mm, which is standard for compact applications.
It features a total of 8 contacts arranged in a single row.
This model is designed for surface mount applications with a right angle orientation.
It incorporates a Zero Insertion Force (ZIF) slide type actuator for easy insertion and secure connection.
It is commonly used in automotive, consumer electronics, medical devices, and mobile devices.
The connector features female contacts, allowing for a secure connection with corresponding male connectors.
The connector is manufactured in India.
