Rohde & Schwarz Mixed Signal Upgrade Oscilloscope Module for Use with RTH1004 Series, RTH1002 Series RTH-B1

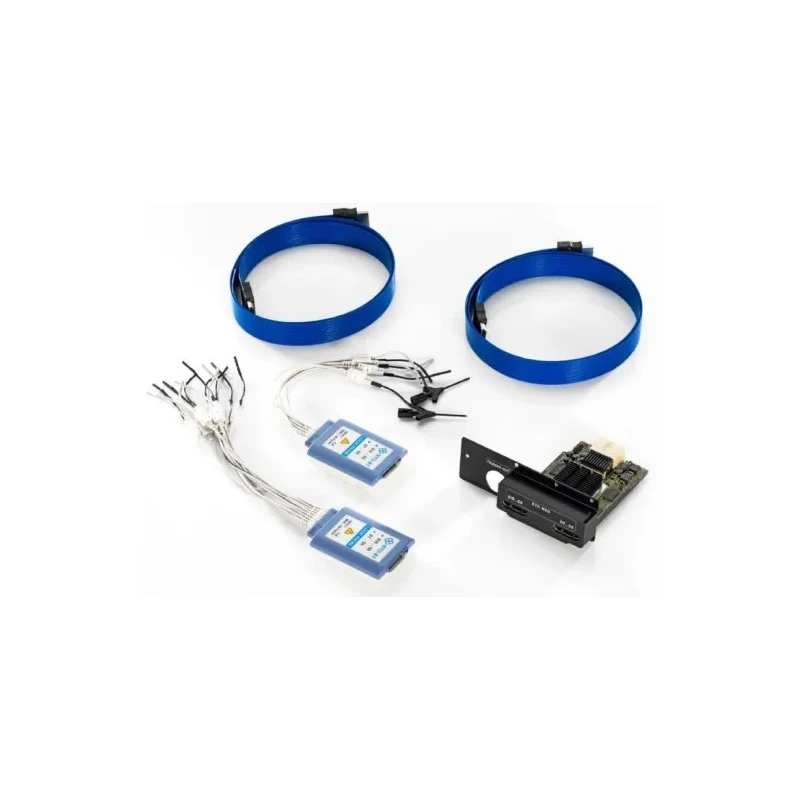

Rohde & Schwarz RTH-B1 is a mixed signal upgrade Oscilloscope Module designed specifically for the RTH1004 and RTH1002 series oscilloscopes. This module integrates a 16-channel logic analyzer using two logic probes, transforming standard digital oscilloscopes into mixed signal oscilloscopes (MSO) with enhanced analytical capabilities. Operating with an input impedance of 100 kΩ ± 2% and approximately 4 pF at the probe tips, it assures accurate signal acquisition and measurement precision.

The RTH-B1 module provides users with increased time resolution across the entire memory depth, allowing intricate signal details to be captured and analyzed effectively. It also offers reliable triggering on signal events, which is vital for testing complex digital circuits and systems in various industrial, laboratory, and maintenance settings.

Compatible with Rohde & Schwarz Scope Rider handheld digital oscilloscopes, this upgrade enhances the scope’s flexibility and expands its range of applications in electronics testing and troubleshooting. The module is manufactured in the Czech Republic, adhering to high-quality manufacturing standards.

Key features include a mixed signal logic analyzer option, 16 digital channels with two logic probes, and high input impedance for quality signal integrity. This module upgrades non-MSO RTH oscilloscopes to mixed signal oscilloscopes.

Offers more signal detail with high time resolution across the full memory depth. Provides reliable event triggering capabilities. Includes 16 digital channels via two logic probes. Input impedance of 100 kΩ ± 2% with ~4 pF at probe tips for accurate measurements.

Designed for use with RTH1004 and RTH1002 series handheld oscilloscopes. Ideal for industrial, laboratory, and maintenance electronics testing. Explore the full range of oscilloscopes and accessories to complement your testing setup at EnvMart.
