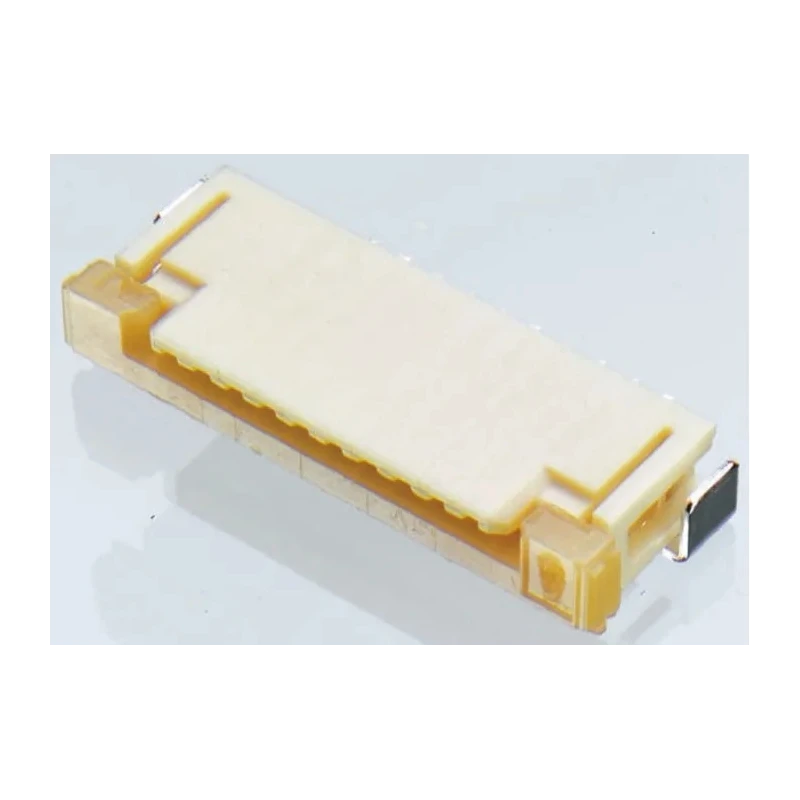

Molex 1 mm Pitch 7 Way Right Angle Female FPC Connector Solder 52271-0769

Molex 52271-0769 7 Way Right Angle Female FPC Connector is a high-quality electronic component designed with a 1.00 mm pitch and solder termination for surface mount technology applications.

This connector features a Zero Insertion Force (ZIF) mechanism that minimizes wear during repeated mating cycles, making it suitable for demanding industrial and commercial environments.

The connector's slide type actuator rotates 30°, facilitating easy insertion of the FPC cable while ensuring a secure electrical connection between contacts. The phosphor bronze contacts are plated with gold over nickel to provide excellent conductivity and corrosion resistance.

Its nylon housing offers robust insulation and mechanical stability. The right angle, bottom contact design helps save PCB space and provides strain relief via solder tabs for enhanced durability.

Operating voltage is rated at 50 V AC with a current rating of 500 mA. It performs reliably across a temperature range from -20°C to 85°C, making it adaptable to various industrial, automotive, and consumer device applications.

Space-saving compact design ideal for tight packaging constraints. ZIF insertion force mechanism reduces connector wear. Gold plated phosphor bronze contacts for reliable electrical performance. Durable nylon housing for mechanical protection.

Slide actuator design facilitates easy and secure FPC connections. Right angle connector orientation with locking mechanism for stability. Solder tabs provide secure PCB attachment and strain relief. Wide operating temperature range suitable for diverse applications.

Comma industry use in automotive, consumer electronics, medical devices, and communications. This connector is an excellent choice for designers needing a dependable, compact, and easy-to-use FPC interconnect solution. Browse the Electronics & Electricals category for more connectors and related components suitable for industrial and commercial applications.
