Nexperia Demultiplexer Multiplexer 16-Pin SO 3 Element HEF Logic Family HEF HEF4053BT,653

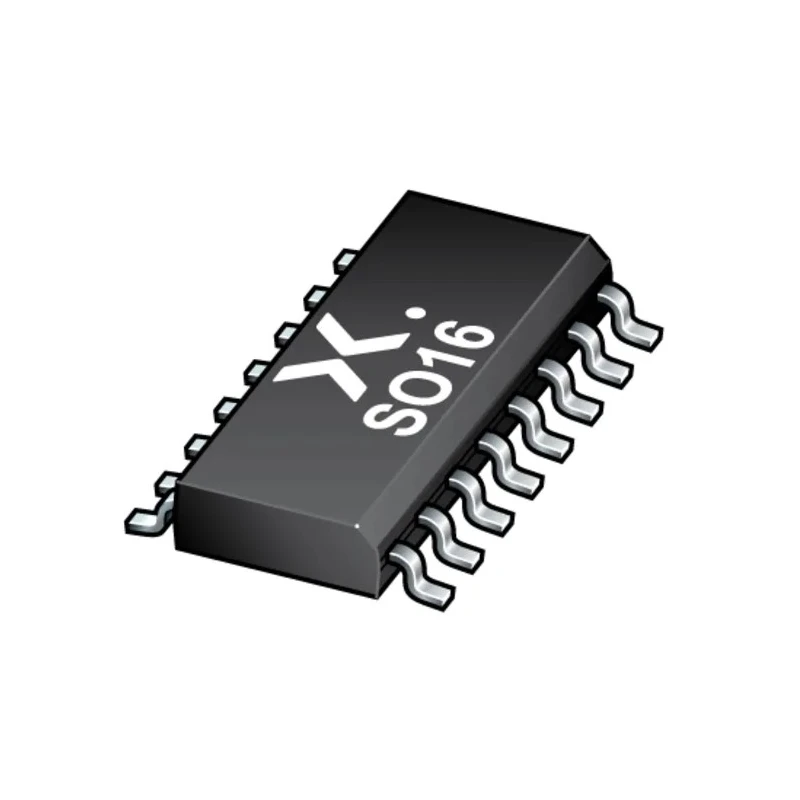

Nexperia HEF4053BT,653 is a high-performance demultiplexer and multiplexer integrated circuit from the HEF logic family, designed with three single-pole double-throw (SPDT) analog switches integrated into a single 16-pin SO (small outline) package.

This device supports both analog and digital signal switching, featuring non-inverting polarity with single-ended output configuration, making it versatile for multiple electronic applications including signal routing, analog sensor multiplexing, and digital communications.

The IC operates at a minimum supply voltage of 3V and a maximum supply voltage of 15V, allowing flexible integration with various electronic systems. It exhibits a low maximum ON state resistance of 2500 ohms, minimizing signal loss and distortion, which is critical for high-quality audio and signal processing applications.

Designed to operate in temperatures ranging from -40°C to 125°C, the HEF4053BT,653 ensures stable performance in industrial and commercial environments. The package utilizes surface mount technology for easy assembly and space-saving PCB layouts.

Compliance with JEDEC JESD 13-B standards guarantees manufacturing quality and reliability. The integrated enable input allows all switches to enter a high-impedance OFF state, providing additional control for signal management.

This multiplexer/demultiplexer IC is ideal for industrial electronics, laboratory instrumentation, manufacturing automation, and electronic communication equipment, enabling efficient signal routing and switching tasks.

Integrated triple SPDT analog switch configuration provides flexible signal control. Wide operating voltage range from 3V to 15V supports diverse applications. Low maximum ON resistance reduces switching losses and signal attenuation.

Surface mount package simplifies PCB design and assembly. Wide temperature range (-40°C to 125°C) supports industrial use. JEDEC JESD 13-B compliance ensures quality and reliability. Non-inverting, single-ended output suitable for analog and digital signals.

Low leakage and flat ON resistance enhance signal integrity. Enable input for high-impedance OFF state adds switching versatility. Supports multiplexing of analog sensor signals to reduce ADC channel requirements. Explore more semiconductor and multiplexer/demultiplexer products at EnvMart for industrial and electronic component needs.
