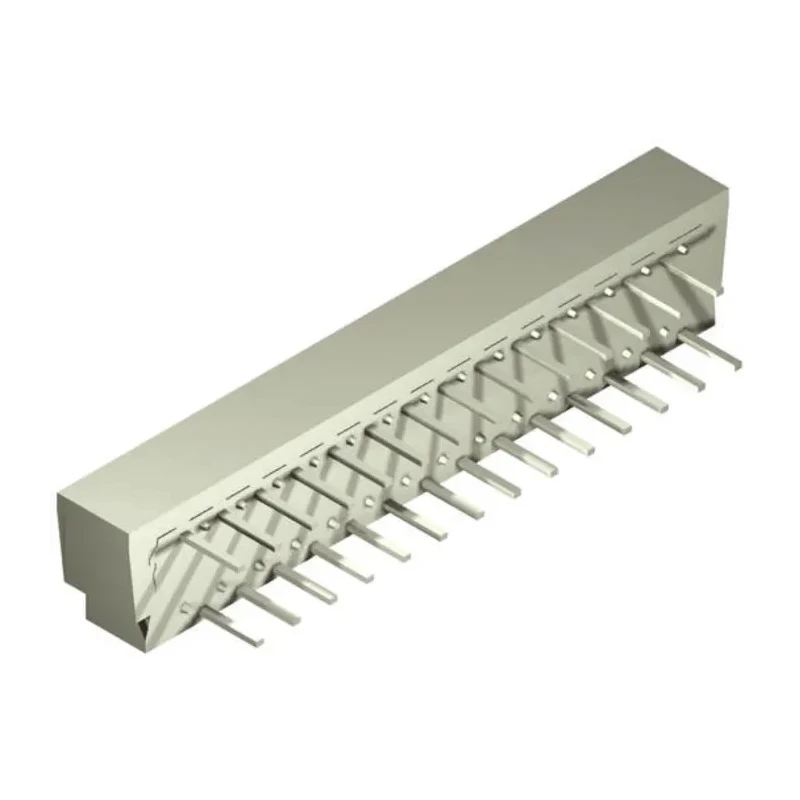

Molex FPC Connector 1.25 mm Pitch 7 Way Right Angle Female Through Hole Solder 200V 1A 39-53-2074
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features a zero insertion force (ZIF) mechanism for easy FPC insertion and repeat cycling.
- Constructed with phosphor bronze contacts plated with tin bismuth over nickel.
- Housing material is durable polybutylene terephthalate suitable for tight packaging applications.
- Equipped with a slide type actuator and locking mechanism to ensure secure connection.
- Operates reliably in temperatures ranging from -20°C to 80°C.
- Right angle orientation supports space-saving PCB layout design.
- Ideal for electronic automotive and compact electronic device applications.
Product Description
Molex 39-53-2074 is a high-quality FPC Connector featuring a 1.25 mm pitch, 7 way right angle female design with through hole mount and solder termination. Rated at 200 volts and 1 amp current, this connector is suitable for use in electronic automotive and compact devices requiring secure and reliable FPC connections.
The 5597 series connectors utilize a zero insertion force (ZIF) mechanism activated through a slide type actuator, allowing easy insertion and removal of flexible printed circuits with minimal wear. The phosphor bronze contacts are plated with tin bismuth over nickel to ensure excellent conductivity and corrosion resistance, supported by a robust polybutylene terephthalate housing that withstands industrial operating conditions.
These connectors provide a locking mechanism to securely hold the flexible circuit in place, reducing connection failure risks in vibration-prone environments. Designed with a right angle orientation, they enable space-saving PCB designs in tight packaging setups.
Operating temperature ranges from -20°C to 80°C allow usage in diverse climatic and industrial conditions. The staggered solder tails facilitate reliable solder joints on PCB boards.
Zero insertion force for repeat cycling and minimal wear. High-quality phosphor bronze contacts with tin bismuth over nickel plating. Durable polybutylene terephthalate housing material. Slide type actuator and locking mechanism for secure connection.
Right angle orientation supports compact assembly designs. Operating temperature range of -20°C to 80°C. Ideal for automotive electronics and industrial applications.
This product is manufactured in Japan, ensuring high standards of quality and reliability. The Molex 39-53-2074 connector is suitable for industrial, automotive, laboratory, and manufacturing environments where secure and compact flexible circuit connections are required.
Explore further quality electronics components and connectors in the EnvMart catalog to find compatible or complementary parts.
