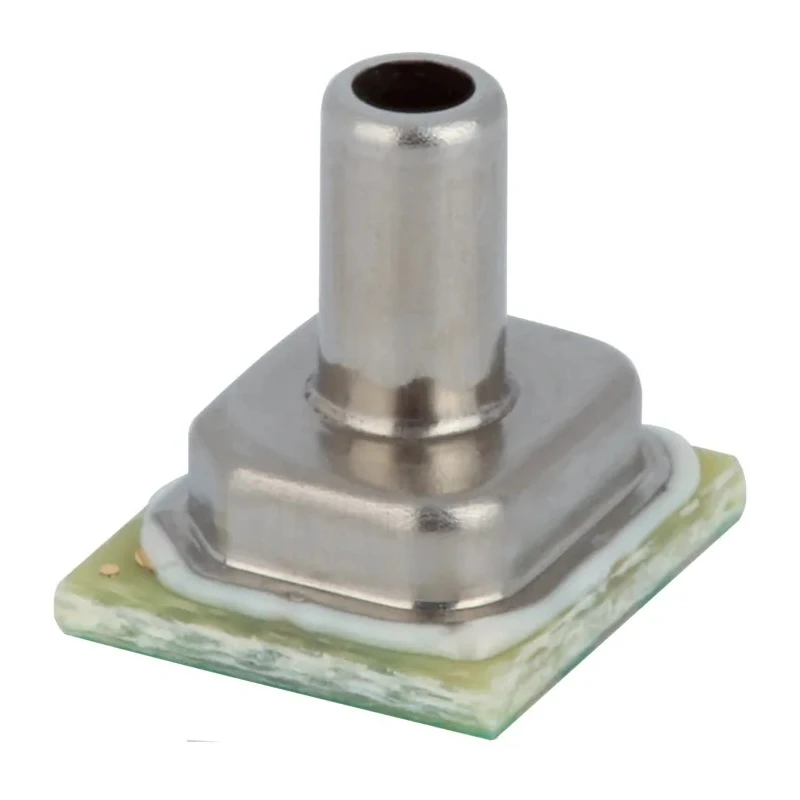

Honeywell Technologies Piezoresistive Pressure Sensor, 6.89 kPa Max Operating Pressure, -40°C to +110°C ABP2MRRT001PDSA3XX
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell Technologies |
| Maximum Operating Pressure | 6.89 kPa |
| Model | ABP2MRRT001PDSA3XX |
| Series | ABP2 |
| Maximum Operating Temperature | +110°C |
| Minimum Operating Temperature | -40°C |
| Minimum Operating Pressure | 6.89476kPa |
Key Features
- Compact piezoresistive sensor for board-mount applications.
- Provides digital (I2C/SPI) and ratiometric analogue outputs.
- Onboard compensation for offset, sensitivity, and temperature effects.
- Temperature compensated for high accuracy across wide temperature range.
- Update rate of approximately 200Hz for rapid measurement.
- Liquid-media gel-coated option for wet and condensation-prone environments.
- Ultra-low power consumption down to 0.01mW at 1Hz sampling for battery operation.
- Suitable for harsh environmental use from -40°C to +110°C.
Product Description
Honeywell Technologies ABP2MRRT001PDSA3XX is a compact piezoresistive pressure sensor designed for board-mount applications requiring accurate pressure measurement up to 6.89 kPa. It operates reliably within a wide temperature range from -40°C to +110°C, making it suitable for harsh industrial and medical environments.
The sensor converts pressure into a calibrated electrical signal with onboard compensation for offset, sensitivity, and temperature effects, ensuring high measurement accuracy. It supports multiple output interfaces including 24-bit digital I2C or SPI and ratiometric analogue outputs, enabling precise and rapid pressure data acquisition at an update rate of approximately 200Hz.
An optional gel coating protects the sensor’s electronics from liquid media exposure under port P1, allowing use in condensation-prone and non-corrosive wet environments such as water and saline. Ultra-low power consumption modes down to 0.01mW at 1Hz sampling make this sensor ideal for battery-operated devices.
Applications include ventilators, portable respiratory equipment, HVAC transmitters, pneumatic control systems, blood pressure monitoring, medical analyzers, compressed natural gas (CNG) monitoring, and air-brake systems for transportation.
Compact piezoresistive device for precise pressure sensing. Multiple outputs: digital I2C/SPI and analogue ratiometric signal. Onboard temperature and pressure compensation. Gel-coated liquid-media option for protection against wet environments.
Ultra-low power operation supporting battery-powered devices. Wide operating temperature range from -40°C to +110°C. High update rate (~200Hz) for responsive measurements. Suitable for demanding industrial and medical applications.
This Honeywell Technologies pressure sensor from the ABP2 series is made in China and is supplied new, meeting rigorous quality and performance requirements for pneumatic pressure sensor applications.
Explore more Pneumatic Pressure Sensors and related industrial sensors on EnvMart to find the perfect fit for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this sensor is 6.89 kPa.
It operates reliably within a temperature range of -40°C to +110°C.
This sensor supports digital outputs via I2C or SPI and ratiometric analogue outputs.
The sensor has an update rate of approximately 200Hz for rapid measurement.
Yes, there is a gel-coated option available for protection against liquid media exposure.
Applications include ventilators, portable respiratory equipment, HVAC transmitters, and blood pressure monitoring.
It has ultra-low power consumption down to 0.01mW at 1Hz sampling, making it suitable for battery-operated devices.
This pressure sensor is made in China.
The model number of this sensor is ABP2MRRT001PDSA3XX.
The minimum operating temperature is -40°C.
Onboard compensation is used for offset, sensitivity, and temperature effects to ensure high measurement accuracy.
The minimum operating pressure is 6.89476 kPa.
