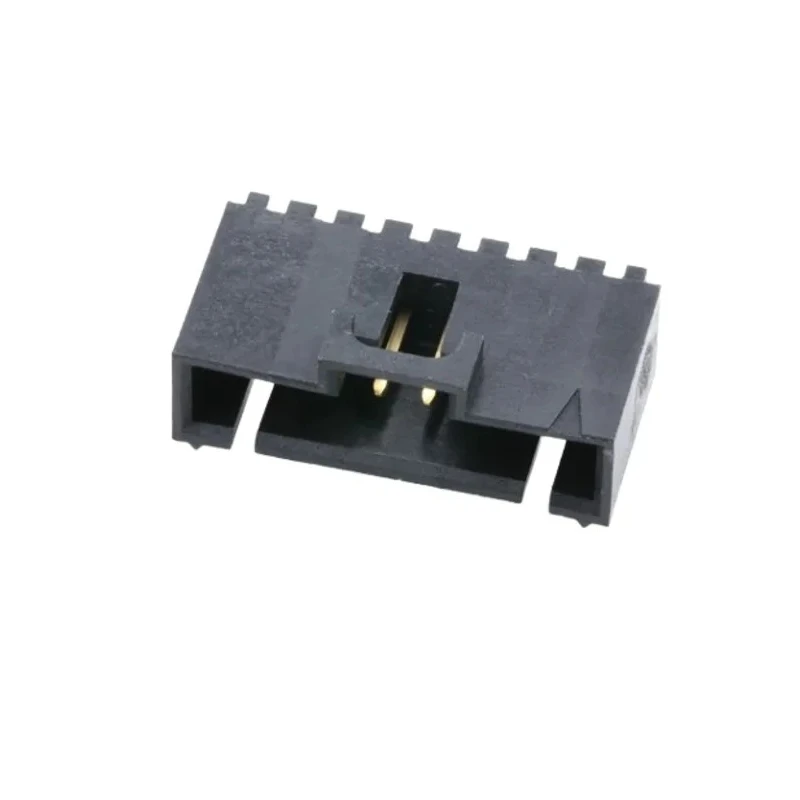

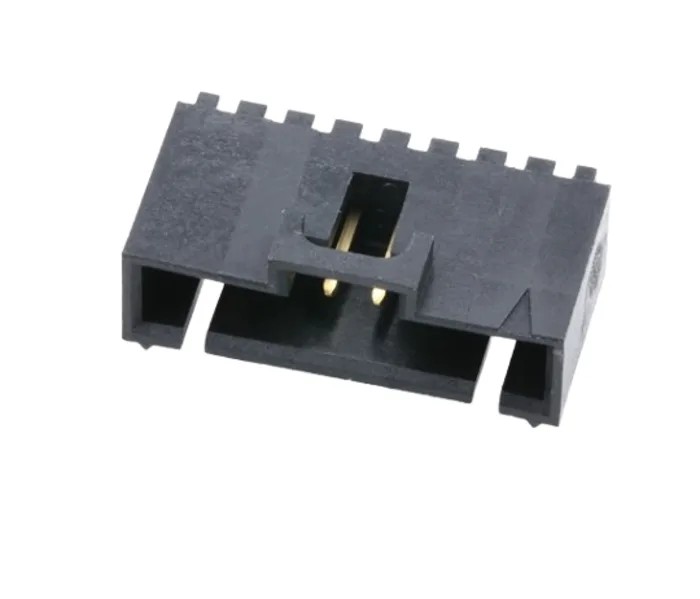

Molex SL Series Right Angle Through Hole PCB Header, Shrouded, 8 Contacts, 2.54 mm Pitch, 1 Row, 3A Current, Gold 70553-0007
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | SL |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- Shrouded design ensures secure and stable electrical connections.
- Right angle orientation allows compact PCB layouts and space efficiency.
- Gold plated phosphor bronze contacts provide excellent conductivity and corrosion resistance.
- Rated for up to 3 Amps current and 250 Volts voltage for versatile electrical applications.
- Single-row header with 8 contacts and 3.3 mm tail pin length for through hole mounting.
- Constructed from high temperature thermoplastic housing for durability and heat resistance.
- Support for up to 50 mating cycles ensures long-lasting connection reliability.
- Minimum operating temperature of -40°C and maximum operating temperature of 105°C.
Product Description
Molex 70553-0007 SL Series right angle through hole PCB header is a high-quality connector designed for industrial and electronic assembly applications. This PCB header features 8 male contacts arranged in a single row with a 2.54 mm pitch, optimized for wire-to-board connections requiring secure, shrouded housings.
The connector’s phosphor bronze contacts are gold plated to ensure superior conductivity, oxidation resistance, and reliable electrical performance even under repeated mating cycles up to 50 times. With a current rating of 3 Amps and maximum voltage of 250 Volts, it suits a wide range of power and signal transmissions.
The robust high temperature thermoplastic housing is designed for durability and heat resistance, with operating temperature range from -40°C to 105°C. Its right angle orientation supports efficient PCB layout, saving space without compromising functionality.
This header is suitable for numerous industrial uses including automation, consumer electronics, and electrical system interconnections. It integrates easily with through hole PCB mounting techniques and mates with compatible housings such as the 70066G and 70066N series.
Shrouded design enhances protection and connector security. Right angle configuration allows flexible PCB design layouts. Gold plated phosphor bronze contacts maximize electrical integrity. 3A current rating fits various electrical and automation systems.
Single row, 8 contact configuration for efficient signal distribution. High temperature thermoplastic housing ensures durability in harsh environments. Supports multiple mating cycles for long-term reliability. Recommended PCB thickness: 1.60 mm for secure installation.
Produced by Molex in the United States, this PCB header meets quality and performance standards for demanding industrial and commercial electronic applications. Explore the EnvMart catalog for additional PCB Headers and connectors from leading brands to support your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of 3 Amps and a maximum voltage of 250 Volts, making it suitable for various electrical applications.
It features a 2.54 mm pitch and has 8 contacts arranged in a single row, optimized for wire-to-board connections.
The housing is made from high temperature thermoplastic, while the contacts are constructed from phosphor bronze with gold plating for enhanced conductivity and corrosion resistance.
The PCB header operates within a temperature range of -40°C to 105°C, allowing it to function in a variety of environments.
The right angle orientation allows for compact PCB layouts and improved space efficiency, facilitating flexible design configurations.
This model supports up to 50 mating cycles, ensuring reliable connections over time.
It utilizes through hole mounting, which integrates easily with compatible PCB designs.
The recommended PCB thickness for secure installation of this header is 1.60 mm.
Yes, it is designed for industrial and electronic assembly applications, including automation and electrical system interconnections.
This header uses a wire-to-board connector system, facilitating efficient electrical connections.
The tail pin length of the contacts is 3.3 mm, suitable for through hole mounting.
This model is produced in the United States, meeting quality and performance standards for demanding applications.
