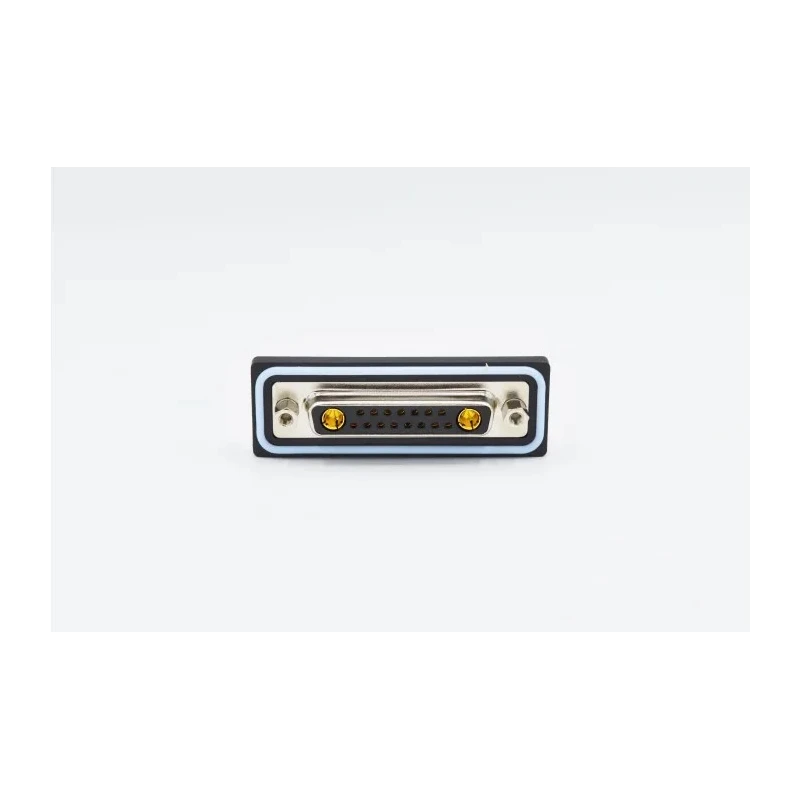

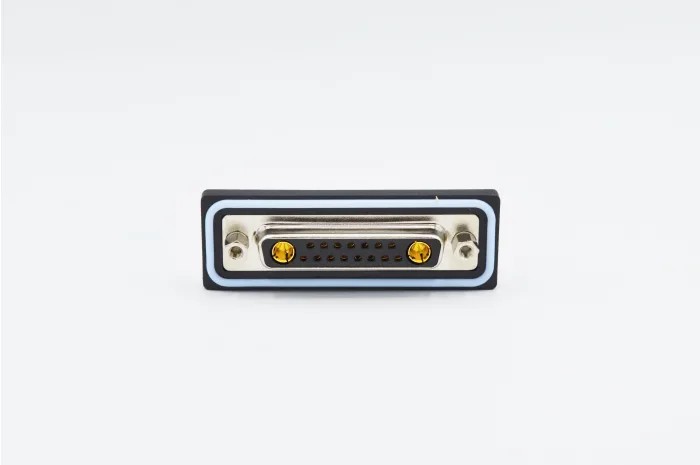

Norcomp CDF 25 Way Right Angle 2.77 mm Pitch Surface D-Sub Connector with 4-40 Board Lock Female CDFR17W2213L261
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 1000V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | CDFR17W2213L261 |
| Mount Type | Surface |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | CDF |
| Mounting Hardware | 4-40 Board Lock |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Standard |
Key Features
- Features 25 gold-plated brass female contacts for reliable connectivity.
- Rated for 5A current and 1000 V voltage to ensure safe operation.
- Constructed with polybutylene terephthalate housing for durability.
- Right angle orientation suitable for surface mounting on PCBs.
- Operates reliably from -25°C up to 85°C temperature range.
- Includes 4-40 threaded inserts for secure mounting.
- Connector shell made of nickel plated steel with silicon O-ring seal.
- IP67 rated ensuring protection against dust and water ingress.
Product Description
Norcomp CDFR17W2213L261 is a high-quality 25 way right angle surface mount D-Sub connector featuring a 2.77 mm pitch suited for printed circuit board applications. It is designed with gold plated brass female contacts housed in durable polybutylene terephthalate material, providing long-lasting and reliable electrical connections in industrial and electronic equipment.
This connector is rated for a maximum current of 5 amperes and withstands voltages up to 1000 volts, ensuring safety and performance in power distribution and control circuits. The right angle orientation facilitates compact PCB layouts, while the 4-40 board lock mounting hardware secures the connector firmly in place.
Operating temperature ranges from -25°C to +85°C allow this connector to function effectively even in challenging environmental conditions. The nickel plated steel shell with silicon O-ring offers IP67 protection rating against dust and moisture ingress, making it suitable for harsh industrial environments.
This series lacks additional standards or approvals but maintains high-quality contact integrity through brass contacts plated with gold for enhanced conductivity and corrosion resistance.
Features 25 gold-plated brass female contacts for reliable connectivity. Rated for 5A current and 1000 V voltage to ensure safe operation. Constructed with polybutylene terephthalate housing for durability. Right angle orientation suitable for surface mounting on PCBs.
Operates reliably from -25°C up to 85°C temperature range. Includes 4-40 threaded inserts for secure mounting. Connector shell made of nickel plated steel with silicon O-ring seal. IP67 rated ensuring protection against dust and water ingress.
This connector is ideal for use in electronics manufacturing, industrial automation, instrumentation, and power connector applications. Explore a wide range of D-Sub Connectors and related products on EnvMart to suit your electronics assembly and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 5 amperes, ensuring safe operation in power distribution applications.
It can withstand voltages up to 1000 volts, making it suitable for high-voltage applications.
The connector operates reliably within a temperature range of -25°C to +85°C, suitable for various environmental conditions.
It features a housing made of polybutylene terephthalate and brass contacts plated with gold for enhanced conductivity.
The Norcomp CDFR17W2213L261 has 25 gold-plated brass female contacts, ensuring reliable connectivity.
This connector is designed for surface mounting on PCBs and includes 4-40 board lock mounting hardware for secure installation.
The connector features a pitch size of 2.77 mm, which is suitable for various printed circuit board applications.
It has a right angle orientation, facilitating compact layouts on printed circuit boards.
It is rated IP67, providing protection against dust and moisture ingress, making it suitable for harsh environments.
The connector is manufactured in Taiwan.
It is ideal for use in electronics manufacturing, industrial automation, instrumentation, and power connector applications.
This model features a female connector gender, making it compatible with male counterparts in various applications.
