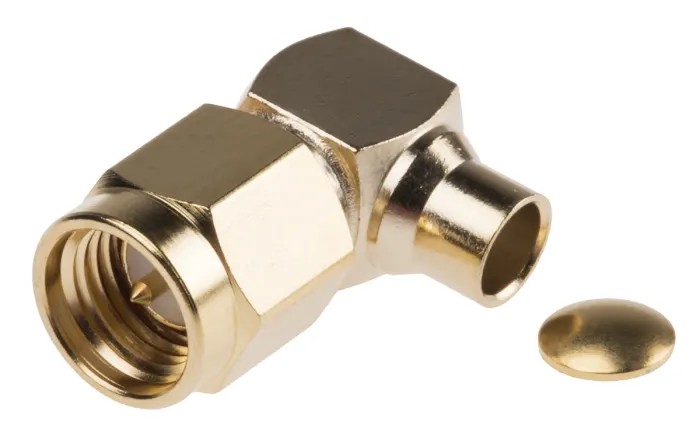

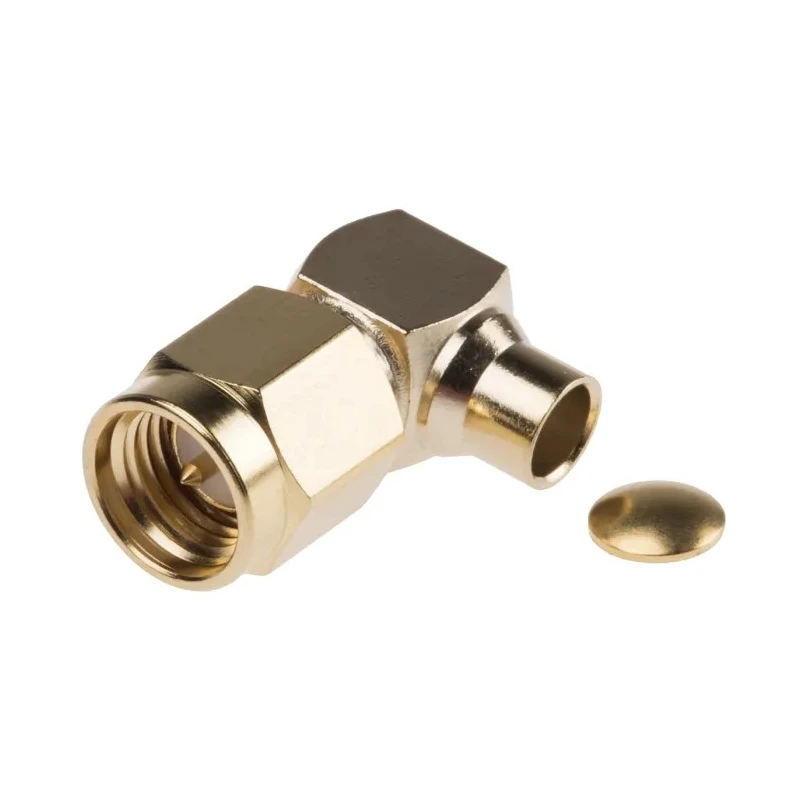

RS PRO Coaxial Connector Cable Male SMA 50 Ω Right Angle Body Solder 546-3096
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Subminiature |
| Brand | RS PRO |
| Orientation | Right Angle |
| Model | 546-3096 |
| Mount Type | Cable |
| Operating Frequency | 18GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG402 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
| RS PRO Coaxial Connector Cable Male SMA, 50 Ω, Right Angle Body SolderBrand | RS PRO |
| Soldered SMA elbow plug for RG402 cableBrand | RS PRO |
Key Features
- The connector has a male SMA coaxial type with 50 Ω impedance.
- It comes with gold-plated brass contacts for enhanced corrosion resistance.
- The right angle orientation offers space-saving cable routing and strain relief.
- Solder termination type ensures secure connection for RG402 cable.
- Operates reliably between -65°C to 165°C ensuring durability.
- Provides operating frequency up to 18 GHz suitable for high-frequency applications.
- Compact subminiature size allows use in tight spaces.
Product Description
RS PRO 546-3096 Coaxial Connector Cable Male SMA is a high-quality right-angle coaxial connector designed for use with RG402 semi-rigid coaxial cables. This male SMA connector features a 50 Ω impedance rating, making it suitable for various RF and microwave applications requiring precise signal integrity.
The right angle body orientation helps reduce pressure on the cable by offering strain relief and facilitating installation in confined areas. The connector body and contacts are plated with gold to provide excellent corrosion resistance and enhance signal reliability in harsh environments. The brass contact material ensures durability and stable electrical contact.
The connector operates consistently across a wide temperature range from -65°C to 165°C, supporting demanding industrial and laboratory conditions. It handles operating frequencies up to 18 GHz, making it suitable for communications, instrumentation, and aerospace uses where high-frequency signals are common.
This cable mount connector uses a solder termination method for robust and secure attachment to the semi-rigid RG402 cable. With a voltage rating of 450 V, it delivers reliable electrical performance suitable for various testing, development, and heavy-duty applications.
Male SMA Coaxial Connector type with 50 Ω impedance. Right angle orientation for space saving and strain relief. Gold-plated brass contacts for corrosion resistance and durability. Solder termination for strong connection to RG402 cables.
Wide operating temperature range of -65°C to 165°C. Supports operating frequencies up to 18 GHz. Compact subminiature size fits tight spaces. Voltage rating of 450 V ensures robust electrical performance.
This RS PRO SMA connector cable is ideal for industrial, laboratory, telecom, aerospace, and manufacturing applications requiring precise, reliable, and durable coaxial connections.
Explore additional connectors and RF components in the Electronics Components category on EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This coaxial connector has a 50 Ω impedance rating, making it suitable for various RF and microwave applications that require precise signal integrity.
It supports operating frequencies up to 18 GHz, which is suitable for high-frequency applications in communications, instrumentation, and aerospace.
This connector is designed for use with RG402 semi-rigid coaxial cables, utilizing a solder termination method for secure attachment.
The connector operates reliably within a temperature range of -65°C to 165°C, suitable for demanding industrial and laboratory conditions.
The contacts are made of brass and are gold-plated, providing enhanced corrosion resistance and stable electrical contact.
It features a right angle orientation, which helps in space-saving cable routing and provides strain relief during installation.
This coaxial connector has a voltage rating of 450 V, ensuring robust electrical performance for various applications.
It is classified as a subminiature size, allowing it to fit into tight spaces during installation.
The connector uses a solder termination type, ensuring a secure and robust connection to the RG402 cable.
The connector is manufactured in Taiwan.
It is ideal for industrial, laboratory, telecom, aerospace, and manufacturing applications requiring reliable coaxial connections.
This is a male SMA coaxial connector, designed for high-frequency signal applications.
