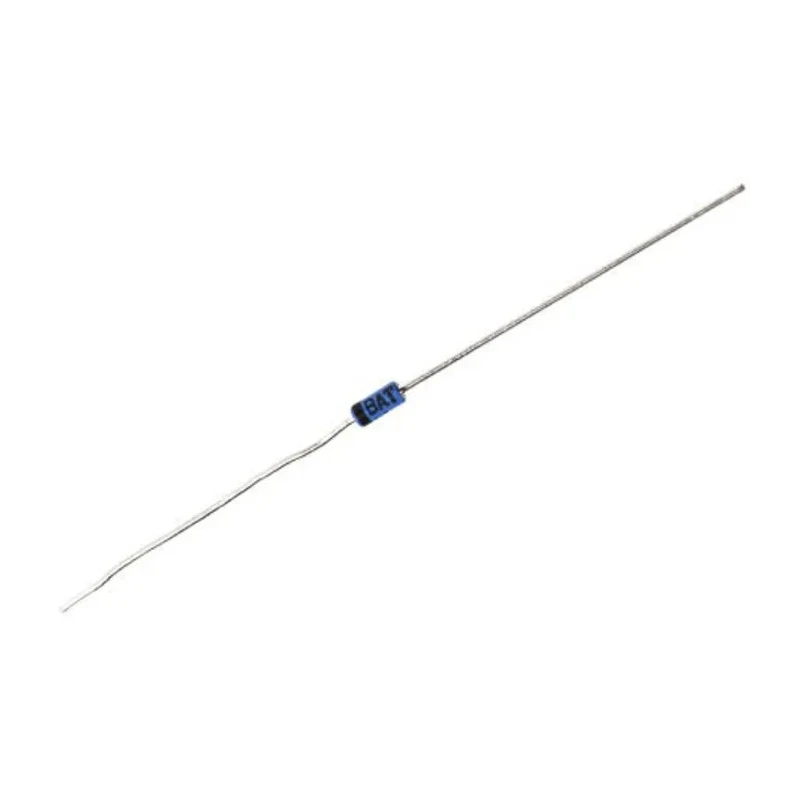

onsemi General Purpose 5.6 V 500 mW Through Hole Zener Diode 2-Pin SOD-27 1N5232BTR

onsemi 1N5232BTR is a general purpose Zener diode designed for voltage regulation applications requiring a nominal Zener voltage of 5.6 volts and power dissipation of 500 mW. Its Through Hole 2-pin SOD-27 package provides easy mounting on printed circuit boards and reliable mechanical stability.

The diode features a single-element configuration and is hermetically sealed in a double slug glass case, ensuring excellent environmental protection and mechanical durability. The external surfaces are corrosion resistant with readily solderable leads, supporting industrial manufacturing processes.

Electrical characteristics include a maximum reverse leakage current of 5 microamperes and zener impedance of up to 1600 ohms at the test current of 20 mA, guaranteeing stable voltage regulation. It operates reliably across a wide temperature range from -65°C to 200°C, suitable for diverse industrial and commercial electronics environments.

Mechanical dimensions of 1.91 mm height and 4.56 mm length make it compact for circuit board integration in various electronic devices. The diode's polarity is indicated by a color band on the cathode, which is positive with respect to the anode in zener operation.

This diode is manufactured with metallurgically bonded double slug construction, providing enhanced reliability and performance consistency. The maximum lead temperature for soldering is 230°C for 10 seconds, accommodating standard assembly processes.

Typical applications include voltage stabilization, voltage reference in instrumentation, power supply protection circuits, and other semiconductor-based regulation functions in industrial, laboratory, and commercial electronics.

Single diode configuration ensuring precise voltage regulation. Nominal Zener voltage of 5.6 volts with ±5% tolerance. Maximum power dissipation of 500 milliwatts for reliable performance. Through Hole mount type facilitating easy PCB integration.

Hermetically sealed double slug glass case for durability. Maximum reverse leakage current of 5 microamperes minimizing leakage losses. Operating temperature range from -65°C to 200°C for high reliability. Compact size with 1.91 mm height and 4.56 mm length dimensions.
