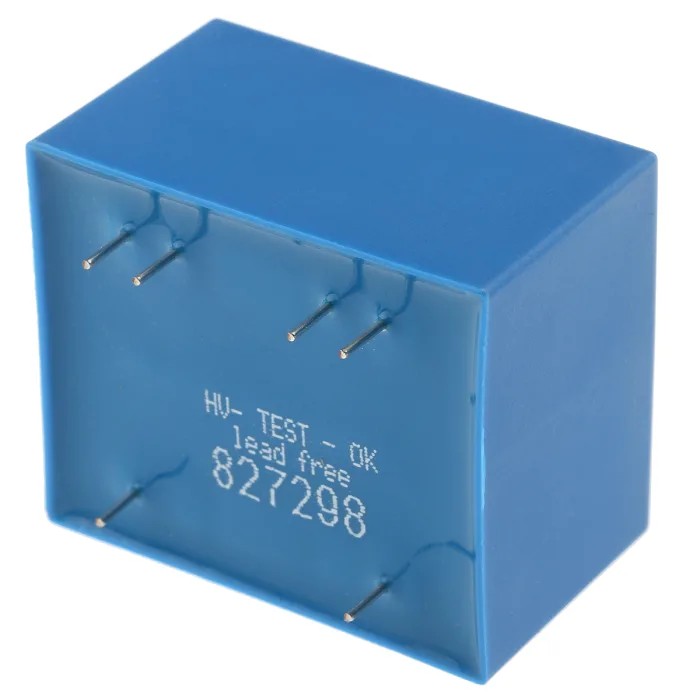

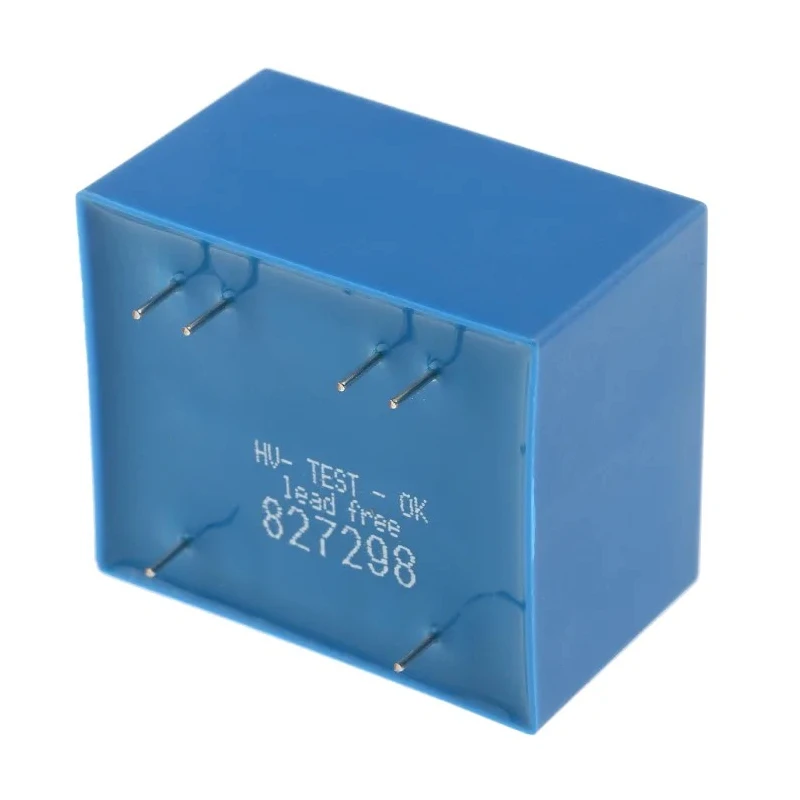

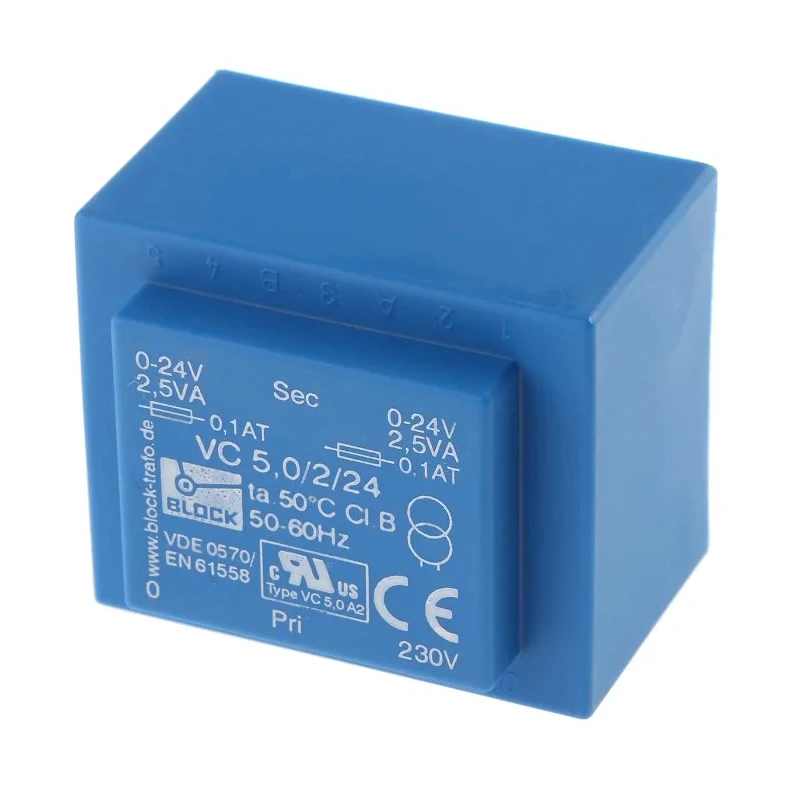

Block 24 V ac 2 Output Pin PCB Transformer 16 VA, ENEC 10 (VDE), C-UL-US VC 5/2/24

Block VC 5/2/24 24 V ac 2 Output Pin PCB Transformer 16 VA is a high-quality PCB transformer designed for industrial, electronic component power supply applications. It operates on a primary voltage of 230 V ac and delivers two independent output pins providing 24 V ac each, which can be connected in series or parallel configurations depending on the application. The transformer is vacuum resin moulded, achieving a UL94-V0 rating for flame retardancy, making it suitable for robust and safe PCB mounting.

This transformer achieves an efficiency of 76% and is designed to work efficiently at line frequencies ranging from 50 to 60 Hz. With an isolation voltage of 5000 V, it ensures electrical safety and isolation conforming to international standards. The maximum operating temperature is rated at 40°C, making it suitable for environmentally controlled industrial environments.

The build includes low inter-winding capacitance which reduces radiated noise and enhances performance in sensitive electronic circuits. It includes extra fixing points for secure mounting on printed circuit boards, ensuring mechanical stability under operational conditions. This product is fully electrically and flash tested to ensure quality and reliability during service.

Standards and approvals include ENEC 10 (VDE) and C-UL-US certification, making it compliant with stringent global safety and performance norms. This transformer is manufactured in Germany, reflecting the highest standards of European engineering and quality control.

Typical applications include use in industrial electronic equipment, laboratory instrumentation, power supply units, and other commercial and manufacturing setups requiring high quality and reliable PCB mounting transformers. Its compact size and pin mount type provide ease of integration into complex electronic assemblies.

PCB mount transformer for 230 V ac primary voltage. Dual 24 V ac output pins for flexible connection options. Vacuum resin moulded for UL94-V0 flame retardant classification. Low inter-winding capacitance and reduced radiated noise.

100% electrically and flash tested ensuring reliability. Extra secure fixing points for dependable board mounting. Approved to ENEC 10 (VDE) and C-UL-US safety standards. Manufactured in Germany under strict quality control.
