Block 36 VA 230 V ac Primary 24 V ac Dual Output Through Hole PCB Transformer VCM 36/2/24

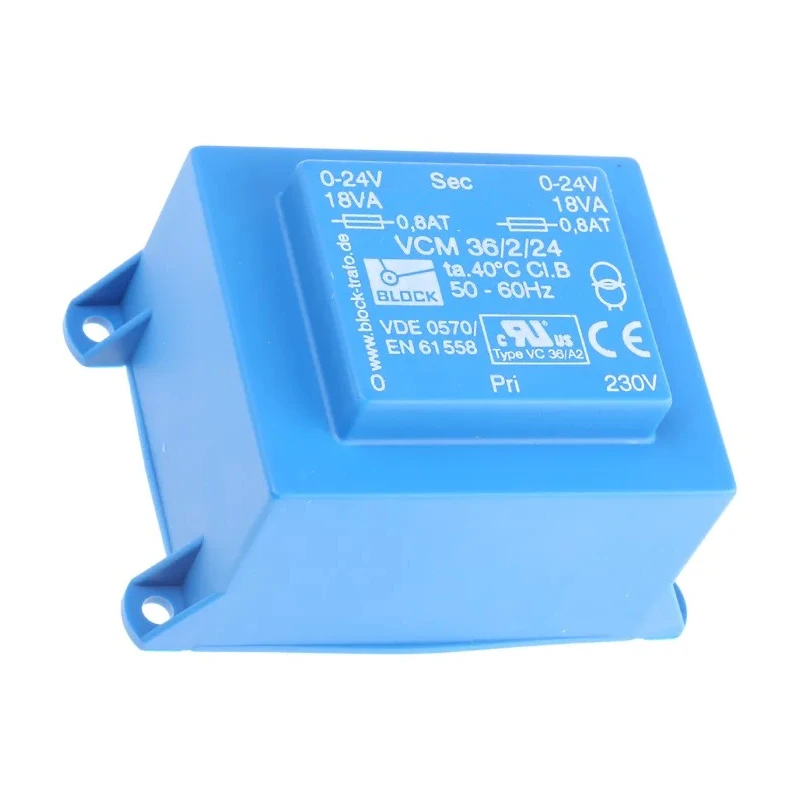

Block VCM 36/2/24 is a high-quality PCB transformer designed for electronic applications requiring reliable power conversion. It features a 230 V ac primary input with dual 24 V ac outputs, delivering a total power rating of 36 VA suitable for a variety of electronic projects and industrial equipment.

This transformer employs a single primary winding and dual secondary windings, allowing flexible wiring configurations such as series or parallel connection. The transformer is vacuum resin moulded to meet UL94-V0 flammability standards, providing excellent electrical insulation and safety.

With an efficiency of 83%, this unit operates effectively within the frequency range of 50 to 60 Hz, maintaining minimal energy losses and low radiated noise. Its low inter-winding capacitance is optimal for sensitive electronics that require minimal electromagnetic interference.

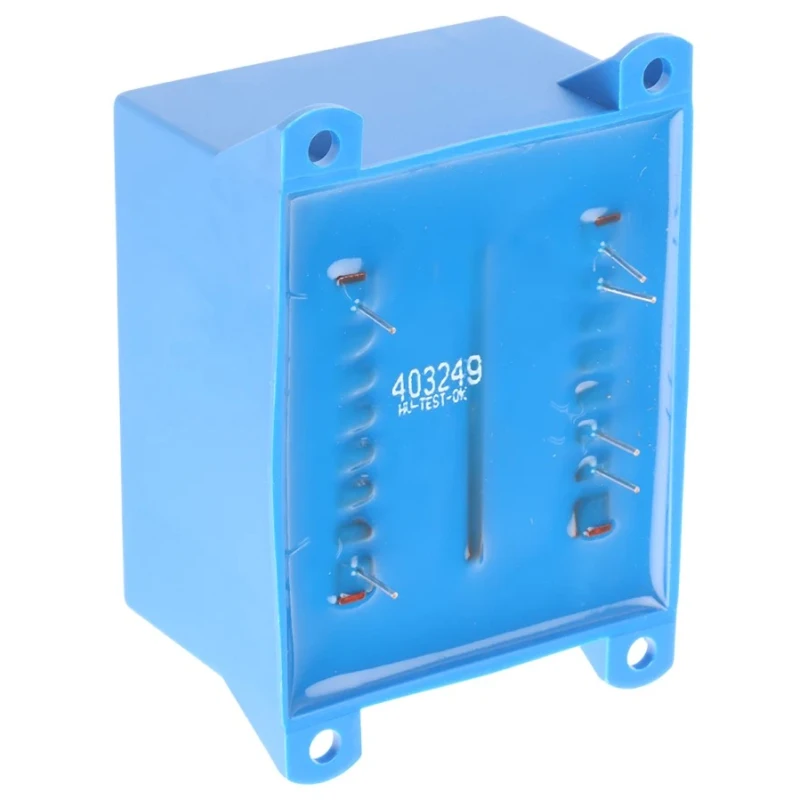

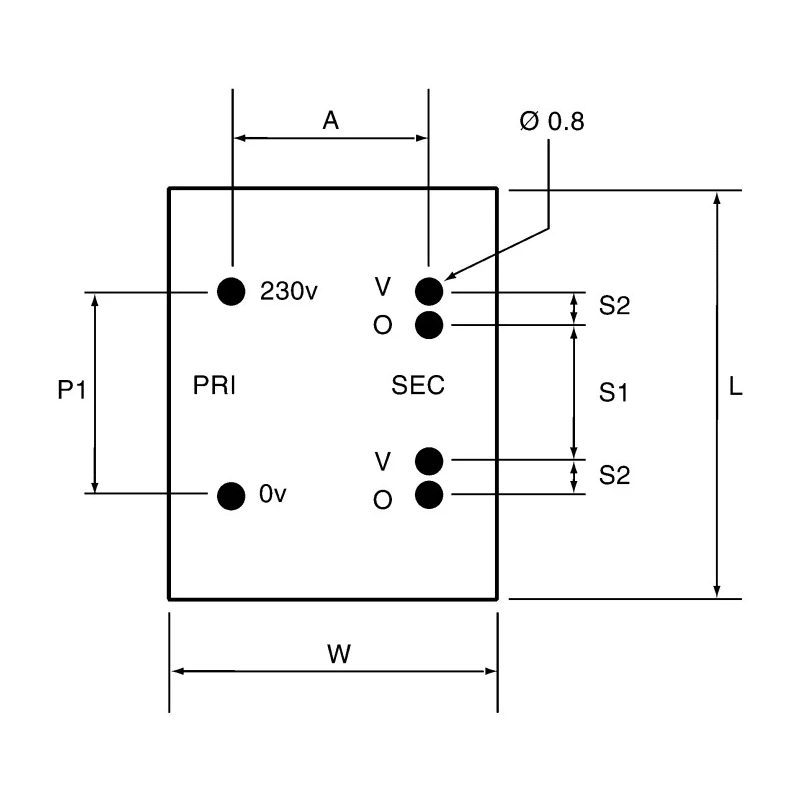

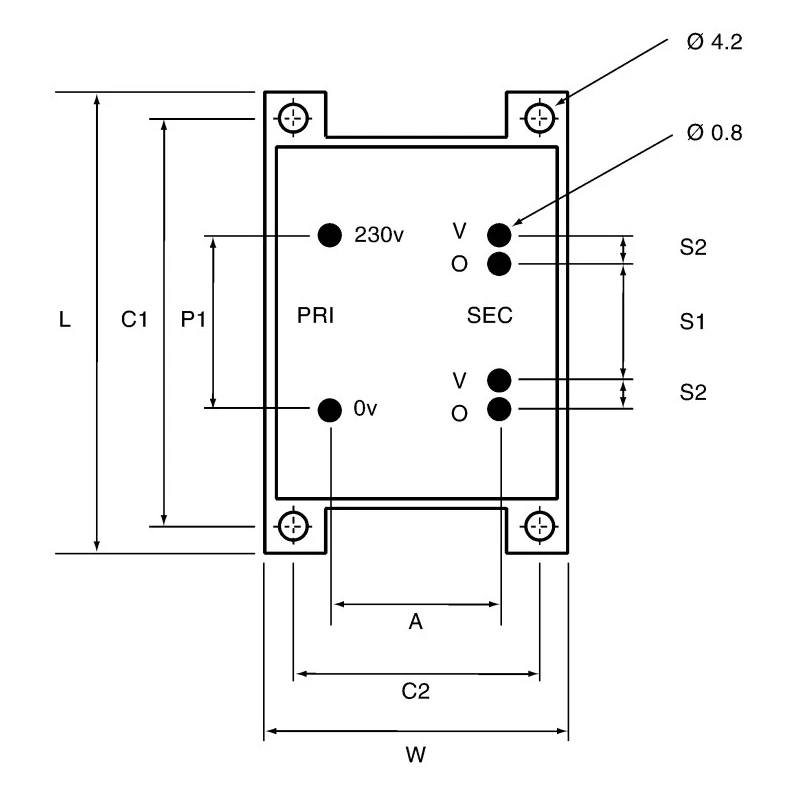

The physical design includes through-hole mounting with six pins and additional fixing points to ensure firm and secure installation on printed circuit boards. The transformer measures 87.2mm in length, 48.5mm in width, and 60mm in depth, weighing 750 grams, which balances compact size with robust construction.

Compliance with international standards such as UL and VDE and conformity to EN 61558 highlights the product's safety and reliability suitable for industrial, laboratory, manufacturing, and power supply applications. The maximum operating temperature is rated at 40°C, ensuring stable operation in typical environmental conditions.

Provides two secondary outputs suitable for series or parallel connections. Encased in vacuum resin moulding rated to UL94-V0 for enhanced safety. Low inter-winding capacitance minimizes noise and interference. Designed for operating frequency range of 50 to 60 Hz with high efficiency of 83%.

Robust construction with extra fixing points for secure PCB installation. Complies with UL and VDE safety standards and EN 61558 requirements. Compact dimensions measuring 87.2mm x 48.5mm x 60mm (LxWxD). Weighs 750 grams, facilitating easy integration on electronic boards.

Maximum operating temperature rating of 40°C ensures reliability under typical operating conditions. Manufactured in Germany, assuring high quality and durability.

This Block PCB Transformer is ideal for use in industrial electronics, laboratory instruments, manufacturing equipment, HVAC controls, and commercial power supply circuits. It offers reliable voltage isolation and conversion to support diverse electronic system requirements efficiently.
