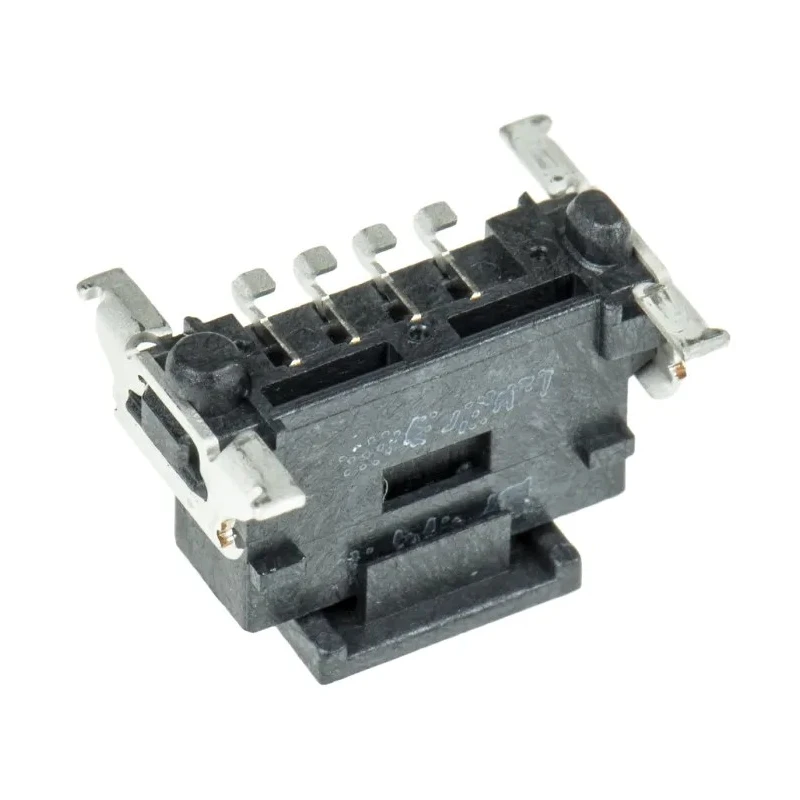

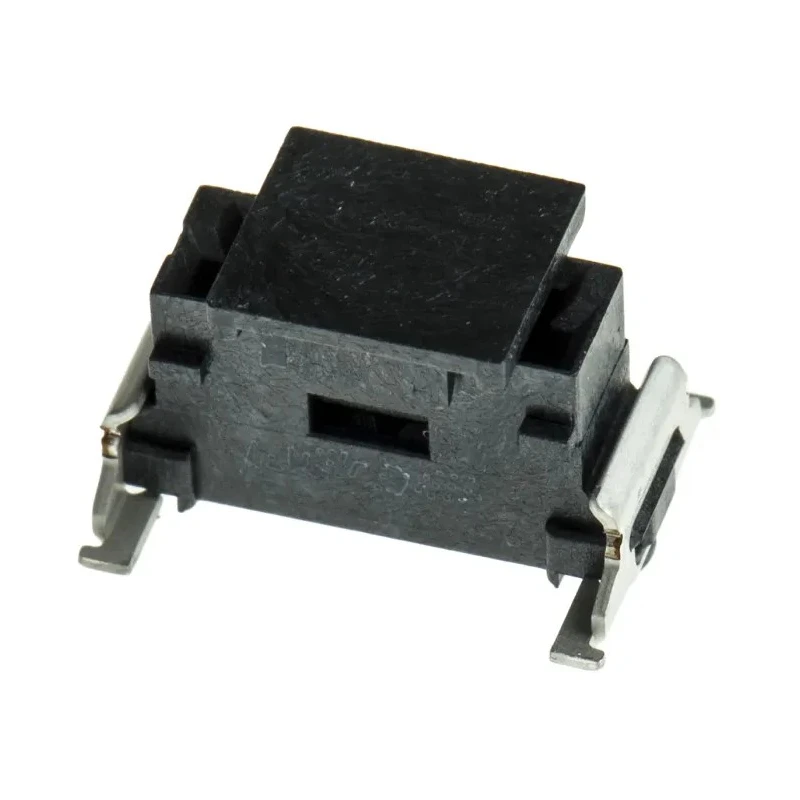

ERNI MiniBridge Series Straight Surface PCB Header, 4 Contacts, 1.27 mm Pitch, 8A, 300V, Shrouded, 214017 / 214017-E
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 300V |
| Brand | ERNI |
| Orientation | Straight |
| Current | 8A |
| Model | 214017 / 214017-E |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | MiniBridge |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1.27mm |
| Contact Resistance | 104 mΩ |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Cycles | 500 |
Key Features
- High-quality MiniBridge Series surface mount PCB header with 4 contacts.
- Features a 1.27 mm pitch to support compact board designs.
- Rated for 8A current and 300V voltage, suitable for demanding applications.
- Liquid Crystal Polymer housing withstands high temperatures for lead-free reflow soldering.
- Shrouded, straight, single row, male header for robust wire-to-board connections.
- Gold-plated copper alloy contacts ensure reliable conductivity and corrosion resistance.
- Integrated rugged metal clips provide secure retention force during automated assembly.
- Guiding elements and exact positioning pegs facilitate accurate PCB installation.
Product Description
The ERNI 214017 / 214017-E MiniBridge Series Straight Surface PCB Header is engineered for advanced sensor, actuator, power supply and data applications across automotive, industrial electronics, computer technology and medical device systems. With a compact footprint and 1.27 mm pitch, this header supports densely populated PCB layouts while maintaining robust electrical performance.
The product consists of 4 male contacts plated with gold over copper alloy to ensure strong and stable conductivity even under harsh environmental conditions. The housing is made from high-temperature Liquid Crystal Polymer, providing reliable performance during lead-free reflow soldering processes.
This shrouded, single-row surface mount header features ruggedized metal clips for secure retention and two positioning pegs (round and oval) which facilitate precise alignment on the PCB, reducing assembly errors and increasing throughput in automated pick-and-place operations. The straight orientation supports wire-to-board connector layouts, ideal for both sensor arrays and power distribution tasks.
Rated for a maximum current of 8A and voltage of 300V, the MiniBridge header is suitable for devices requiring stable, high-current connections in compact form factors. The wide operating temperature range from -55°C to 100°C enables use in environments ranging from automotive to industrial equipment.
Gold-plated contact surfaces minimize contact resistance and support up to 500 mating cycles, ensuring long-term reliability and performance. The solder termination is designed for surface mounting, optimizing assembly efficiency and connection integrity.
This header complies with electronically-focused standards, allowing for broad applicability in circuit design, including sensor integration, actuator control and miniature power distribution for modern PCB assemblies.
Typical applications include automotive sensor and actuator modules, industrial controls, consumer electronics, computer peripherals, and medical device interconnects. Its shrouded construction and guiding pegs ensure secure, repeatable installation, reducing maintenance needs and system downtime.
Browse more ERNI MiniBridge PCB Headers and connectors in EnvMart's Electronics & Electricals category for reliable, high-performance solutions for PCB interconnection.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 8A.
This model is rated for a voltage of 300V.
The housing is made from Liquid Crystal Polymer, which withstands high temperatures during lead-free reflow soldering.
It features 4 male contacts.
The pitch size of this header is 1.27 mm, supporting compact board designs.
The operating temperature range is from -55°C to 100°C.
This header can support up to 500 mating cycles, ensuring long-term reliability.
It uses solder termination designed for surface mounting.
The contact resistance is 104 mΩ.
Typical applications include automotive sensor and actuator modules, industrial controls, consumer electronics, and medical device interconnects.
This model uses a wire-to-board connector system.
Integrated rugged metal clips provide a secure retention force during automated assembly.
