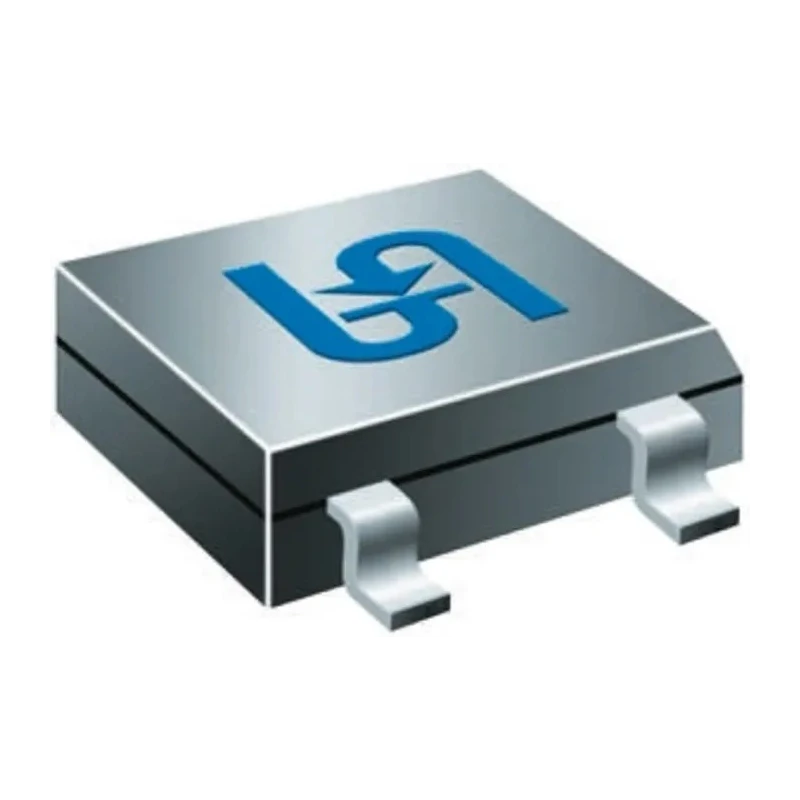

Taiwan Semiconductor Bridge Rectifier 1000 V 50 A 4-Pin Single DBLS207G
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.6mm |
| Length | 8.51mm |
| Model | DBLS207G |
| Width | 6.5mm |
| Mount Type | Surface |
| Series | DBLS207G |
| Configuration | Single |
| Maximum Operating Temperature | 150°C |
| Package Type | DBLS |
| Minimum Operating Temperature | -55°C |
| Number of Phases | 1 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q101 |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Forward Current If | 2A |
| Peak Forward Voltage Vf | 1.15V |
Key Features
- Suitable for converting AC to DC output with a single phase configuration.
- Features a peak reverse repetitive voltage of 1000 V and forward current of 2 A.
- Operates within a temperature range from -55°C to 150°C.
- Designed with a molded plastic construction and glass passivated junction for durability.
- Supports a peak non-repetitive forward surge current of 50 A.
- Package type is DBLS with 4 pins for PCB surface mounting.
- Complies with automotive standard AEC-Q101 for quality assurance.
- Ideal for industrial, automotive, and electronic power conversion applications.
Product Description
Taiwan Semiconductor DBLS207G Bridge Rectifier 1000 V 50 A 4-Pin Single is a reliable semiconductor component designed for surface mount applications to convert alternating current (AC) to direct current (DC). It features a robust glass passivated junction and molded plastic construction ensuring durability and long operational life.
This bridge rectifier supports a peak reverse repetitive voltage (Vrrm) of 1000 V and a forward current (If) rating of 2 A, making it suitable for various industrial and electronic power conversion applications. Its ability to withstand a peak non-repetitive forward surge current of 50 A ensures reliability under transient conditions.
The device is prepared for automated PCB assembly with its 4-pin DBLS package, measuring 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height. It operates effectively in temperature extremes from -55°C to 150°C, complying with automotive-grade standards (AEC-Q101) which certifies its suitability for automotive electronic systems.
With a peak forward voltage of 1.15 V and very low peak reverse current (10 μA), this rectifier maximizes efficiency while minimizing power losses. It is a key component for electronic circuits requiring stable DC voltage from AC inputs, commonly used in industrial machinery, automotive electronics, laboratory instruments, and power supplies.
Suitable for AC to DC power conversion. High surge current handling capacity ensures robustness. Compliant with automotive industry standards. Compact surface mount design for PCB integration. Wide operating temperature range for various applications.
Reliable low cost construction utilizing molded plastic technique. Glass passivated junction improves device longevity. Optimized for automated placement in manufacturing processes.
This Taiwan Semiconductor bridge rectifier DBLS207G is categorized under Bridge Rectifier Modules and is ideal for electronics assembly in industrial, automotive, and commercial sectors.
Explore more related semiconductor components and bridge rectifiers on EnvMart for advanced industrial and electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak reverse repetitive voltage (Vrrm) of this bridge rectifier is 1000 V.
The forward current rating (If) of the DBLS207G is 2 A.
It supports a peak non-repetitive forward surge current of 50 A.
This model operates effectively within a temperature range from -55°C to 150°C.
The dimensions of the DBLS207G are 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height.
It is designed for surface mounting with a 4-pin DBLS package.
This bridge rectifier complies with the automotive standard AEC-Q101.
The peak forward voltage (Vf) for this model is 1.15 V.
This model has a single phase configuration.
The peak reverse current (Ir) is rated at 10 μA.
It is suitable for industrial, automotive, and electronic power conversion applications.
The country of origin for this bridge rectifier is India.
