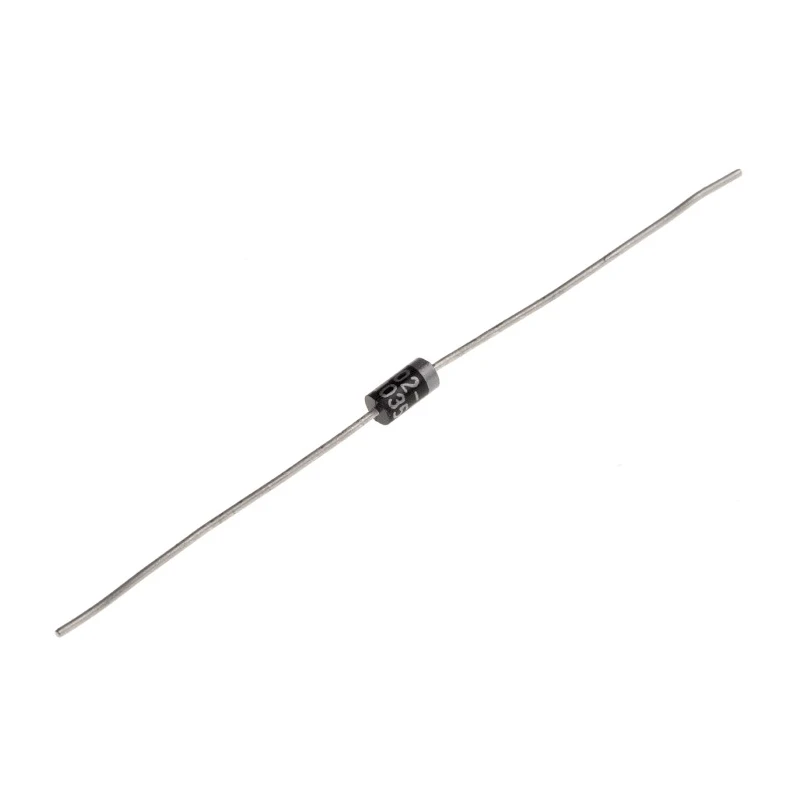

Vishay General Purpose Schottky Diode 1600 V 500 mA 2-Pin DO-204AL RGP02-16E-E3/54

Vishay RGP02-16E-E3/54 is a general purpose Schottky diode designed for electronic applications requiring high voltage and moderate current capacity. Housed in a DO-204AL package, this 2-pin through-hole diode features a glass passivated junction with a cavity-free design ensuring durability and reliability in demanding environments.

This diode supports a maximum continuous forward current of 500 mA and a peak reverse repetitive voltage of 1600 V. Its low forward voltage drop of 1.8 V and fast switching time of 300 ns make it well-suited for power rectification and snubber circuitry, improving efficiency and reducing power losses.

The diode’s construction includes matte tin plated leads compliant with soldering standards for easy PCB assembly, and it meets automotive qualification standards such as AEC-Q101, underscoring its robustness for automotive and industrial electronics. Operating temperature range spans from -65°C to 175°C, suitable for harsh environments.

This diode has a maximum continuous forward current of 500 mA ensuring reliable performance. The peak reverse repetitive voltage rating is 1600 V providing high voltage endurance. Features a low forward voltage drop of 1.8 V for energy efficient operation.

The fast switching characteristic with a peak reverse recovery time of 300 ns optimizes efficiency in circuits. Designed for through-hole mounting in a DO-204AL molded epoxy glass body package. The diode exhibits low leakage current, typically less than 0.2 μA at room temperature.

Rated for a peak non-repetitive forward surge current of 20 A for transient load handling. Operates reliably within a temperature range of -65°C to 175°C. Constructed with matte tin plated leads solderable per industrial standards J-STD-002 and JESD 22-B102.

Meets RoHS compliance and automotive standard AEC-Q101 for quality assurance.

This diode is widely used for high voltage rectification in grid CRTs or TVs, camera flash snubber circuits, and other general purpose power conversion applications in industrial, automotive, and consumer electronics. Vishay’s glass passivated junction technology and high surge capability ensure long-term stable operation even under transient load conditions.
