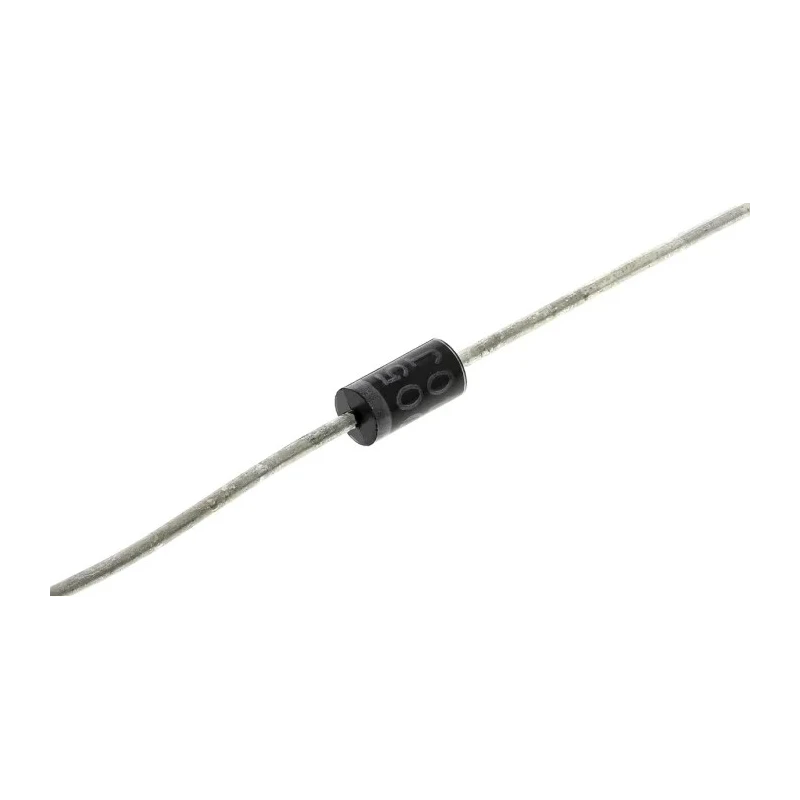

Vishay General Purpose Diode 600 V 1 A 2-Pin DO-204AL Through Hole Rectifier 1N4005-E3/54

Vishay 1N4005-E3/54 General Purpose Diode is a single discrete semiconductor rectifier designed for general purpose applications requiring a maximum continuous forward current of 1 ampere and peak reverse voltage rating of 600 volts. This diode is packaged in a DO-204AL plastic diode package with through-hole mounting style featuring standard 2-pin leads.

The diode exhibits a low forward voltage drop of 1.1 volts and low leakage currents, ensuring efficient electrical performance in circuits such as power supply rectification, inverter protection, and freewheeling diode roles. It supports a peak non-repetitive surge current rating of 45 amperes, allowing it to withstand transient load surges without damage.

Operating temperature range from -50°C to 150°C makes the diode suitable for industrial, commercial, and laboratory applications involving thermal stresses. Its compact dimensions, approximately 5.2 mm length by 2.7 mm diameter, enable versatile PCB layout and space-saving integration.

This diode is part of the widely used 1N400x series, providing selectable voltage ratings from 50 V to 1000 V for tailored circuit protection. Specifically, the 1N4005 variant supports 600 V applications, making it ideal for sensitive rectifier circuits requiring robust voltage blocking capabilities.

The diode is suitable for industrial electronics, power electronics manufacturing, electrical repair, HVAC system design, and laboratory instrumentation. Typical uses include rectification of AC power, voltage blocking in DC circuits, and transient voltage suppression in general-purpose electronic assemblies.

This packaging suits volume manufacturing environments and electronics assembly automation.

Key features and specifications include through-hole mounting, DO-204AL package, 1 A continuous forward current, 600 V peak reverse voltage, 1.1 V maximum forward voltage drop, 45 A surge current, and temperature operation range from -50°C to 150°C. The diode is not rated for automotive use and does not carry automotive or special approvals.

Choose this diode from Vishay for reliable rectification in diverse electronic and electrical engineering projects, ensuring durable performance under varying thermal and electrical load conditions.

Explore related electronic components and semiconductors with EnvMart for all your industrial and laboratory needs. Encapsulated in a DO-204AL (DO-41) plastic package with 2 pins for through-hole mounting. Maximum continuous forward current of 1 ampere ensures reliable conduction in power circuits.

Rated for peak reverse repetitive voltage of 600 volts, suitable for rectification. Features low forward voltage drop of 1.1 volts and low leakage current for efficient operation. Operates within a temperature range of -50°C to 150°C for high reliability.

Peak non-repetitive forward surge current capability of 45 amperes supports transient loads. Dimensions approximately 5.2 mm length and 2.7 mm diameter, compact for various designs. Widely applied in power supplies, inverters, freewheeling diode applications and general purpose rectification.

Single Diode configuration tailored for discrete semiconductor circuit integration. Complies with typical industry general purpose rectifier standards without automotive rating.
