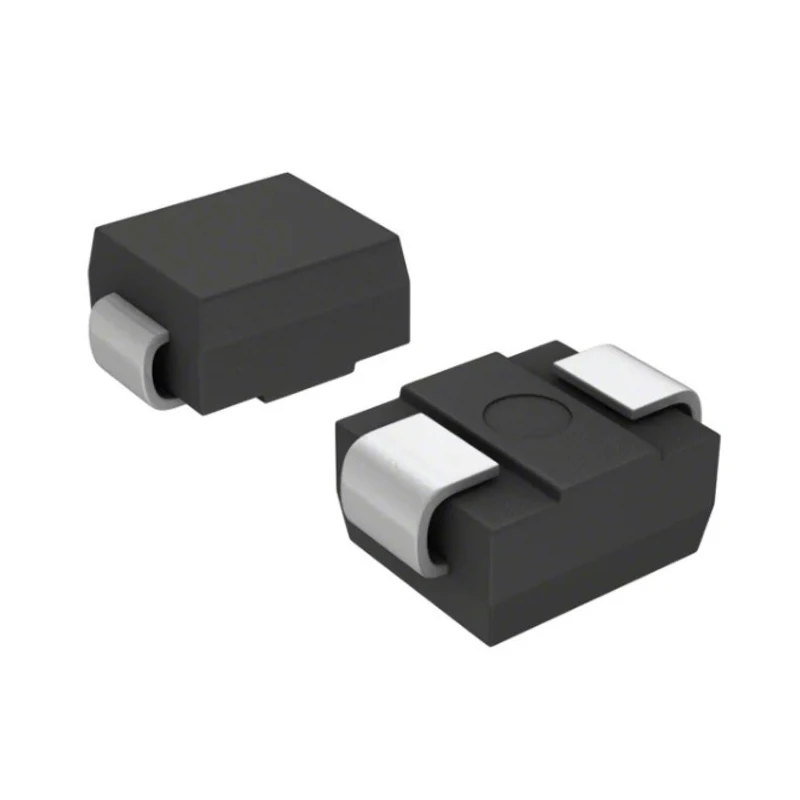

Vishay Surface Mount Rectifier & Schottky Diode 20 V 2 A 2-Pin DO-214AA SL22-E3/52T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.44mm |
| Length | 4.57mm |
| Model | SL22-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | SL22 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 0.44V |
Key Features
- Surface mount Schottky diode designed for low forward voltage drop.
- Maximum continuous forward current of 2 A for reliable operation.
- Peak reverse repetitive voltage of 20 V suitable for low voltage applications.
- Compact DO-214AA package measuring 4.57 mm length and 3.94 mm width.
- Operating temperature range from -55°C to 150°C for extended durability.
- High peak non-repetitive forward surge current of 100 A supports transient loads.
- Halogen and lead (Pb) free, compliant with environmental standards.
- Automotive grade AEC-Q101 qualification ensures high reliability.
Product Description
Vishay SL22-E3/52T is a surface mount rectifier and Schottky diode housed in a low profile DO-214AA package. It supports a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 20 V, making it suitable for electronic power management and protection applications.
The device features a very low forward voltage drop of 0.44 V, which contributes to high efficiency and low power losses in circuits. It operates reliably within a wide junction temperature range from -55°C to 150°C, supporting demanding industrial and automotive environments.
This Schottky diode is halogen and lead free, meeting stringent environmental requirements. It also carries the AEC-Q101 certification, confirming its suitability for automotive and high reliability applications.
The compact 2-pin DO-214AA surface mount design allows for automated placement and low profile PCB assembly. The diode offers guarding for overvoltage protection and a high peak non-repetitive forward surge current of 100 A for transient load tolerance.
Common applications include DC/DC converters, freewheeling mechanisms, polarity protection, and low voltage high frequency inverters. This makes the Vishay SL22-E3/52T ideal for industrial machines, automotive systems, HVAC controls, manufacturing electronics, and power supplies.
Surface mount Schottky diode with low forward voltage drop. 2 A maximum continuous forward current rating. 20 V peak reverse repetitive voltage withstand. Compact DO-214AA package for automatic PCB placement. Wide operating junction temperature from -55°C to 150°C.
Halogen and Pb-free compliant design. AEC-Q101 qualified for automotive stress tolerance. High surge current capability of 100 A peak non-repetitive. Overvoltage protection guarding included. Suitable for DC/DC converters and polarity protection circuits.
Explore the comprehensive range of Vishay semiconductors and Schottky diodes on EnvMart for reliable power and electronic component solutions in your industrial, automotive, and electronics manufacturing projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 2 A.
The peak reverse repetitive voltage is 20 V, making it suitable for low voltage applications.
It operates within a temperature range from -55°C to 150°C.
This model is housed in a compact DO-214AA package.
The dimensions are 2.44 mm in height, 4.57 mm in length, and 3.94 mm in width.
The maximum forward voltage drop is 0.44 V.
It can handle a peak non-repetitive forward surge current of 100 A.
Yes, it is halogen and lead (Pb) free, compliant with environmental standards.
It is qualified under the AEC-Q101 automotive standard, ensuring high reliability.
Common applications include DC/DC converters, freewheeling mechanisms, and polarity protection.
This model has a pin count of 2.
The diode configuration is single.
