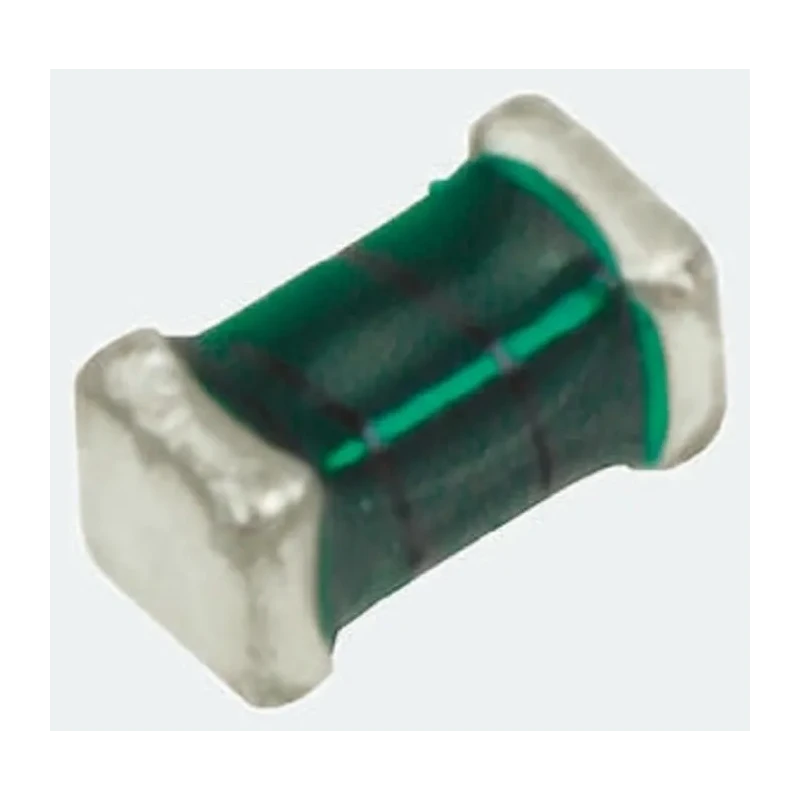

TDK SIMID 0603 Unshielded Wirewound Surface Mount Inductor with Copper Plated Ceramic Core 220 nH ±5% 110 mA B82496C3221J000

TDK B82496C3221J000 is a high-quality unshielded wirewound surface mount inductor featuring a copper plated ceramic core, offering excellent electrical and mechanical stability. This 0603 package device has compact dimensions of 1.6 mm length, 0.8 mm width, and 0.8 mm height, making it ideal for miniature electronic applications requiring space efficiency.

The inductor provides a precise inductance of 220 nH with ±5% tolerance, suitable for signal filtering, impedance matching, and frequency tuning circuits in various electronics assemblies. Rated for a maximum DC current of 110 mA, it ensures dependable operation without saturation under typical load conditions.

The copper plated ceramic core supports a high self-resonant frequency of 1.3 GHz, enabling use in high-frequency RF and communication systems. The product conforms to automotive standard AEC-Q200 and is RoHS compliant, ensuring compatibility with rigorous manufacturing and environmental standards.

Designed for solder termination, this component is easy to integrate onto PCBs using automated surface mount technology (SMT) lines, with packaging supplied on tape and reel to streamline production efficiency. The inductor operates reliably over a wide temperature range from -55°C to 150°C, suitable for demanding industrial, automotive, and consumer electronics environments.

Application areas include industrial electronics, telecommunications, automotive electronic control units, consumer devices, and other fields requiring compact, stable inductors with high-frequency capability and quality assurance.

Unshielded wirewound construction delivers high mechanical stability. Compact dimensions of 1.6 x 0.8 x 0.8 mm enable space-saving PCB mounting. Rated maximum DC current of 110 mA ensures reliable performance. Inductance tolerance is ±5% for precision in circuits.

Features copper plated ceramic core for high resonance frequency up to 1.3 GHz. Meets automotive standard AEC-Q200 for enhanced quality. Operating temperature range from -55°C up to 150°C for diverse environments. Termination style is solder for secure electrical connection.

Packaging in tape and reel supports automated assembly processes. RoHS compliant assuring environmental safety. Minimum quality factor of 4 for efficient inductive behavior. Browse more Surface Mount Inductors from TDK and other brands on EnvMart to find components for your electronic designs.
