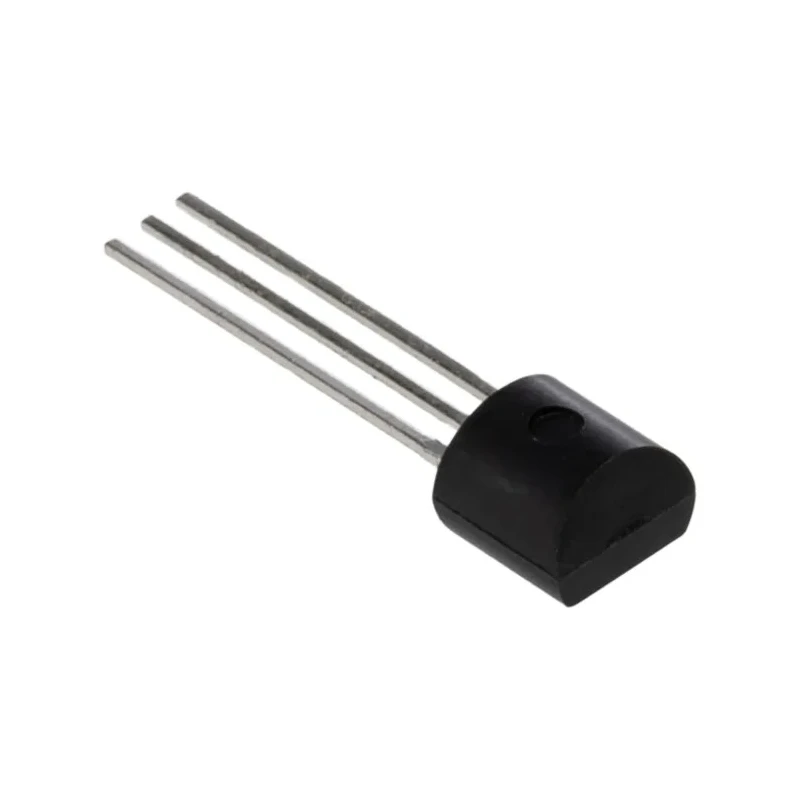

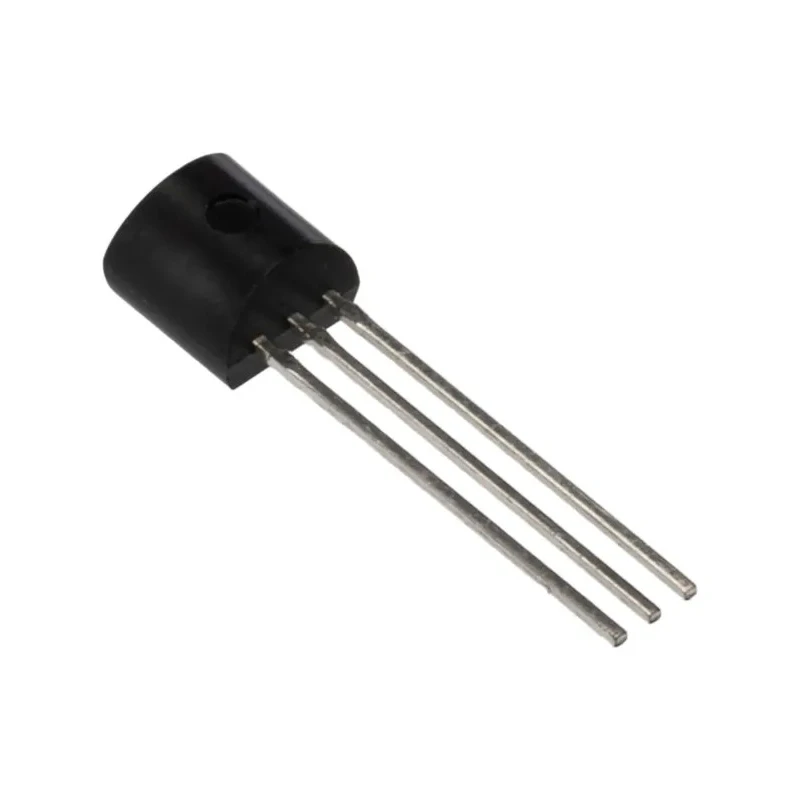

Texas Instruments Precision Shunt Voltage Reference 5V 1% Initial Accuracy 15mA Output 3-Pin TO-92 LM4040DIZ-5.0/NOPB

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Precision Shunt Voltage Reference 5V 1% Initial Accuracy 15mA Output 3-Pin TO-92 LM4040DIZ-5.0/NOPB

Name: Texas Instruments Precision Shunt Voltage Reference 5V 1% Initial Accuracy 15mA Output 3-Pin TO-92 LM4040DIZ-5.0/NOPB
Brand: Texas Instruments
SKU: 194998
Price: 1.23 USD
Availability: InStock



Category Voltage Reference Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	5.2mm
Length	5.2mm
Model	LM4040DIZ-5.0/NOPB
Mount Type	Through Hole
Output type	Fixed
Series	LM4040
Temperature Coefficient	30 ppm/°C
Output Current	15mA
Topology	Shunt
Maximum Operating Temperature	85°C
Package Type	TO-92
Minimum Operating Temperature	-40°C
Reference Type	Precision
Pin Count	3
Automotive Standard	AEC-Q100
Reference Voltage	5V
Initial Accuracy	1 %

Key Features

Provides a precise 5V reference voltage with 1% initial accuracy.
Designed with a shunt topology for stable voltage regulation.
Operates within a wide temperature range from -40°C to 85°C.
Supports output current up to 15mA ensuring reliable performance.
Compact TO-92 form factor with a 3-pin configuration suitable for through-hole PCB mounting.
Temperature coefficient of 30 ppm/°C ensures minimal variation with temperature changes.
Complies with automotive standard AEC-Q100 for enhanced reliability.

Product Description

Texas Instruments LM4040DIZ-5.0/NOPB is a Precision Shunt Voltage Reference device with a fixed 5V output and 1% initial accuracy suitable for electronic applications requiring stable voltage references.

This 3-pin TO-92 package device employs a shunt topology and is designed for through-hole mounting, providing engineers with a reliable voltage reference solution in a compact form factor.

Operating across a temperature range of -40°C to 85°C with a temperature coefficient of 30 ppm/°C, this component maintains voltage stability and precision under changing environmental conditions.

The device supports an output current of up to 15mA, making it applicable in power management circuits and sensor calibration tasks. It meets the automotive industry standard AEC-Q100, ensuring high reliability and performance in automotive and industrial systems.

Provides a precise 5V reference voltage with 1% initial accuracy. Shunt topology design for stable voltage regulation. Wide operating temperature range from -40°C to 85°C. Output current capacity of 15mA. Compact TO-92 3-pin through-hole package.

Temperature coefficient of 30 ppm/°C for consistent performance. Compliance with the AEC-Q100 automotive standard. Dimensions: length 5.2mm, height 5.2mm for space-efficient integration.

This Precision Shunt Voltage Reference from Texas Instruments is ideal for use in industrial electronics, automotive systems, power management ICs, and laboratory instrumentation requiring accurate voltage calibration.
