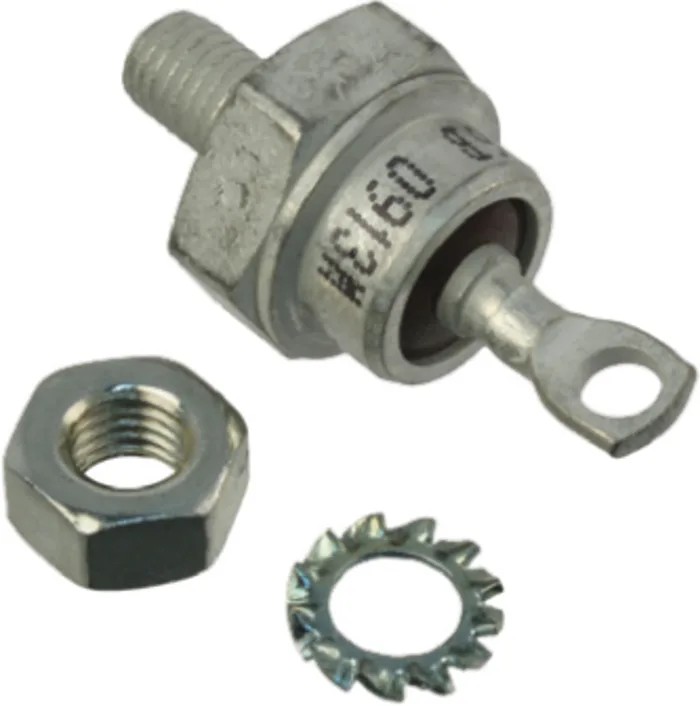

Vishay Switching Diode 2-Pin DO-203AB 100 V 70 A VS-70HF10
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 17.4mm |
| Brand | Vishay |
| Height | 22.9mm |
| Length | 20.08mm |
| Model | VS-70HF10 |
| Width | 17.4mm |
| Mount Type | Screw |
| Series | VS-70HF |
| Maximum Operating Temperature | 180°C |
| Package Type | DO-203AB |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 70A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.3kA |
| Maximum Forward Voltage Vf | 1.35V |
| Vishay 200 V 70 A Diode Switching 2-Pin DO-203ABBrand | Vishay |
Key Features
- Standard recovery diode with a 2-pin DO-203AB package designed for efficient switching.
- Maximum continuous forward current of 70 A supports demanding power requirements.
- Peak reverse repetitive voltage of 100 V ensures reliable blocking performance.
- Stud cathode diode configuration for easy mounting using screw method.
- Operating temperature range from -65°C to 180°C provides wide thermal tolerance.
- Maximum forward voltage drop of 1.35 V reduces power loss during conduction.
- Robust dimensions with a height of 22.9 mm, length of 20.08 mm, and diameter and width of 17.4 mm.
- Peak non-repetitive forward surge current withstands up to 1.3 kA for transient conditions.
Product Description
Vishay VS-70HF10 Switching Diode in 2-Pin DO-203AB package is a versatile and high-efficiency standard recovery diode designed for power switching applications. It delivers a continuous forward current rating of 70 A and can block voltages up to 100 V, making it suitable for demanding power electronics tasks.
The diode employs a stud cathode configuration with screw mounting, facilitating robust installation in various electronic assemblies. It features a maximum forward voltage of 1.35 V to ensure efficient operation while minimizing power losses.
Designed to operate reliably in harsh environments, it supports a wide temperature range from -65°C to 180°C and can handle a non-repetitive surge current peak up to 1.3 kA, providing resilience against transient electrical stresses.
Physical dimensions include a height of 22.9 mm, length of 20.08 mm, and a diameter/width of 17.4 mm, which are standard for the DO-203AB form factor. This diode finds application in industrial power supplies, rectification systems, and as an essential component in semiconductor discrete devices.
The product does not conform to any automotive standards but is ideal for electronics manufacturing, power rectification, and switching circuit designs in laboratory, industrial, and commercial contexts.
Standard recovery diode with 2-pin DO-203AB package. Maximum continuous forward current of 70 A. Peak reverse repetitive voltage of 100 V. Stud cathode diode configuration with screw mount. Wide operating temperature range of -65°C to 180°C.
Maximum forward voltage drop of 1.35 V. Robust physical dimensions suitable for power diode applications. Handles 1.3 kA peak non-repetitive forward surge current. New condition, not tailored for automotive use. Recommended for electronic component manufacturing and industrial power applications.
Explore the full Vishay semiconductor diode range at EnvMart for power electronics solutions, industrial automation, and laboratory equipment needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay VS-70HF10 diode is 70 A, making it suitable for demanding power applications.
This model has a peak reverse repetitive voltage rating of 100 V, ensuring reliable blocking performance in various applications.
The diode operates within a wide temperature range from -65°C to 180°C, allowing it to function reliably in harsh environments.
The Vishay VS-70HF10 features a stud cathode configuration, which allows for easy mounting using a screw method.
The physical dimensions of this diode are a height of 22.9 mm, a length of 20.08 mm, and a diameter/width of 17.4 mm.
The maximum forward voltage drop for the Vishay VS-70HF10 is 1.35 V, which helps minimize power loss during conduction.
This diode can withstand a peak non-repetitive forward surge current of up to 1.3 kA, providing resilience against transient conditions.
The diode is designed for screw mounting, facilitating robust installation in various electronic assemblies.
The Vishay VS-70HF10 is classified as a switching diode, suitable for power switching applications.
This diode is recommended for use in industrial power supplies, rectification systems, and as a component in semiconductor discrete devices.
The peak reverse current for the VS-70HF10 is 15 mA, indicating its performance under reverse bias conditions.
The Vishay VS-70HF10 diode is manufactured in India.
