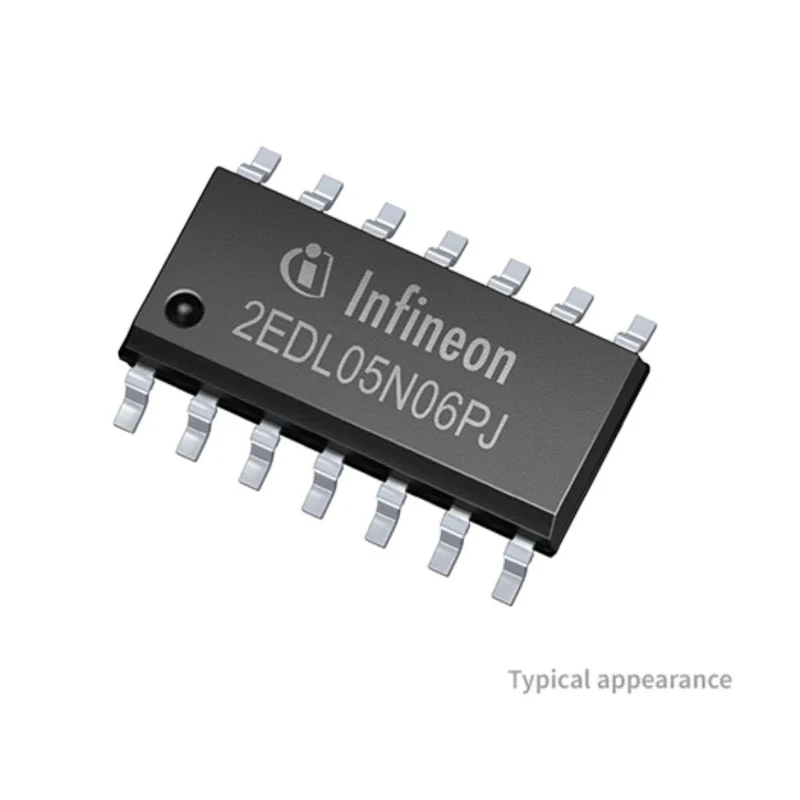

Infineon Gate Driver 500 mA 14-Pin 600V DSO-14 2EDL05N06PJXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 2EDL05N06PJXUMA1 |
| Output Current | 500mA |
| Maximum Operating Temperature | 150°C |
| Package Type | DSO-14 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 60747-5-2 |
| Pin Count | 14 |
| Minimum Supply Voltage | 600V |
| Fall Time | 40ns |
| Driver Type | Gate Driver |
Key Features
- Supports high-voltage operation up to 600V for advanced power switching.
- 14-pin DSO-14 compact package is ideal for space-saving PCB layouts.
- Delivers 500 mA output current suitable for gate drive tasks.
- Features Infineon's Thin-Film Silicon on Insulator (SOI) technology for ruggedness and noise immunity.
- Compatible with CMOS and LSTTL logic inputs down to 3.3V.
- Integrated bootstrap diode and floating channel for convenient MOSFET or IGBT high-side drive.
- Includes offline clamping protection to prevent parasitic turn-on.
- Gate drive supply range from 10V to 20V enables flexibility in design.
Product Description
Infineon’s 2EDL05N06PJXUMA1 gate driver module is engineered for robust performance in demanding industrial and electronic applications. With 500 mA output current and a 14-pin DSO-14 packaging, it enables precise control and switching of high-power devices up to 600V, making it ideal for modern semiconductor power management.
Its implementation of advanced Thin-Film Silicon on Insulator (SOI) technology ensures excellent ruggedness and noise immunity, addressing critical challenges in harsh operating environments. Compatibility with 3.3V, 5V, and 15V input logic enables easy integration with a broad range of microcontroller and logic families.
Designed for bootstrap operation, the floating channel supports N-channel MOSFET or IGBT high-side drive applications. The integrated bootstrap diode simplifies design and reduces component count, improving reliability and efficiency. Offline clamping protection delivers inherent safeguarding against parasitic turn-on events, further enhancing operational safety.
The 2EDL05N06PJXUMA1 module is RoHS compliant and adheres to DIN EN 60747-5-2 standards. It features undervoltage lockout for both channels, preventing incorrect activation when supply voltage drops below critical levels.
Supports high-voltage operation up to 600V for advanced power switching. 14-pin DSO-14 compact package is ideal for space-saving PCB layouts. Delivers 500 mA output current suitable for gate drive tasks. Features Infineon's Thin-Film Silicon on Insulator (SOI) technology for ruggedness and noise immunity.
Compatible with CMOS and LSTTL logic inputs down to 3.3V. Integrated bootstrap diode and floating channel for convenient MOSFET or IGBT high-side drive. Includes offline clamping protection to prevent parasitic turn-on. Gate drive supply range from 10V to 20V enables flexibility in design.
Undervoltage lockout provides additional protection for both channels.
Ideal for industrial, laboratory, and commercial power electronics, this module is perfectly suited for gate drive circuits, motor control, inverters, and high-side switching in manufacturing and automation systems.
Explore more gate driver solutions and Infineon products in the semiconductor category at EnvMart.
Explore more products in our Gate Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers an output current of 500 mA, suitable for gate drive tasks.
The gate driver supports high-voltage operation up to 600V, making it suitable for advanced power switching applications.
This unit operates within a temperature range of -40°C to 150°C.
The Infineon gate driver comes in a 14-pin DSO-14 package, ideal for space-saving PCB layouts.
It is compatible with CMOS and LSTTL logic inputs down to 3.3V, allowing for easy integration with various microcontroller families.
Yes, it includes offline clamping protection to prevent parasitic turn-on and undervoltage lockout for both channels to prevent incorrect activation.
This model is classified as a gate driver, specifically designed for high-side drive applications with N-channel MOSFET or IGBT.
The fall time for this unit is specified at 40 ns, contributing to its performance in switching applications.
The gate drive supply range for this model is from 10V to 20V, providing flexibility in design.
This gate driver is RoHS compliant and adheres to DIN EN 60747-5-2 standards.
It is ideal for gate drive circuits, motor control, inverters, and high-side switching in industrial, laboratory, and commercial power electronics.
The country of origin for this gate driver is India.
