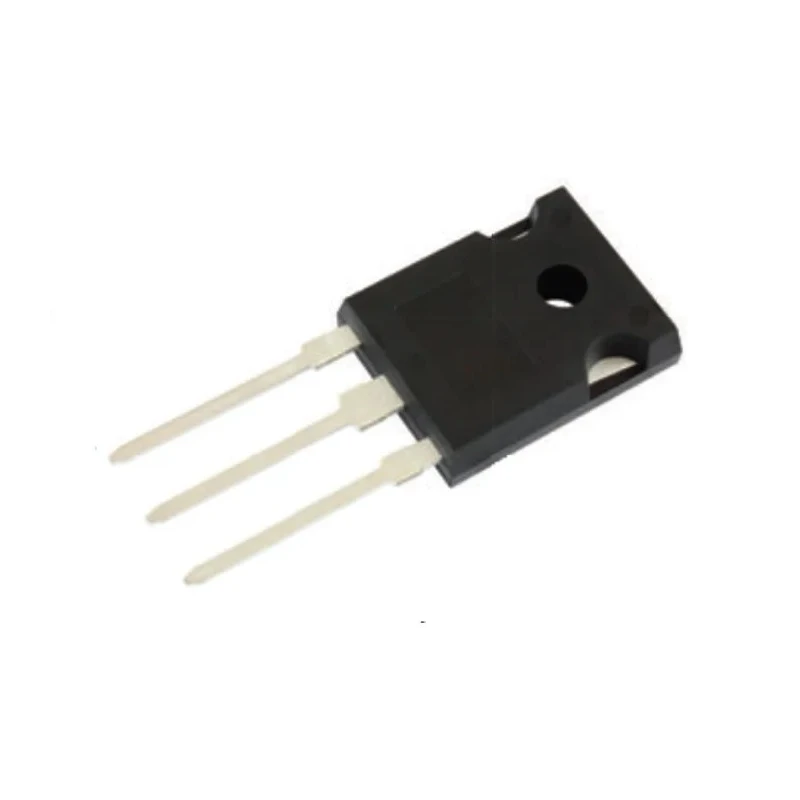

Vishay Soft Recovery Diode 60A, Single, TO-247AD, Ultrafast 0.87V, FRED Pt VS-60APU04LHN3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-60APU04LHN3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 60A |
| Diode Configuration | Single |
| Rectifier Type | Soft Recovery |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600A |
| Maximum Forward Voltage Vf | 0.87V |
Key Features
- Ultrafast soft recovery for reduced EMI and RFI.
- Maximum continuous forward current of 60A.
- Low forward voltage drop of 0.87V for efficient operation.
- Single diode configuration housed in TO-247AD package.
- AEC-Q101 qualified and RoHS compliant.
- Peak surge current capability of 600A.
- Operating junction temperature up to 175°C.
- Ideal for applications such as HF welding and power converters.
Product Description
Vishay VS-60APU04LHN3 is an ultrafast soft recovery diode designed to minimize switching losses and electromagnetic interference in demanding power applications. Featuring a maximum continuous forward current rating of 60A and a low forward voltage drop of 0.87V, this device operates efficiently in high frequency environments, making it suitable for use in systems such as HF welding, power converters, and other high-speed switching circuits.
The single diode is housed in a robust TO-247AD surface mount package, offering reliable thermal performance up to a maximum operating junction temperature of 175°C. Its FRED Pt series construction ensures optimised recovery characteristics, significantly reducing the need for supplemental snubber circuits and lowering parts count in designs.
Ultrafast soft recovery characteristics to reduce EMI and RFI. AEC-Q101 automotive qualification ensures quality for industrial and automotive applications. Peak non-repetitive forward surge current capability is 600A. RoHS compliance for environmental safety.
Wide operating temperature range from -55°C to 175°C. Single configuration simplifies integration in power circuitry. Reduced losses and improved efficiency in power conditioning systems. TO-247AD package for secure surface mounting.
This diode is a versatile component for electronics engineering, industrial manufacturing, laboratory testing, and commercial equipment deployment, especially when low switching losses and high frequency operation are essential.
Explore more power semiconductors and Vishay Schottky diodes within the Electronics & Electricals > Semiconductor > Schottky Diodes & Rectifiers category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 60A.
The forward voltage drop of this model is 0.87V.
This diode has a peak non-repetitive forward surge current capability of 600A.
The operating temperature range for this diode is from -55°C to 175°C.
It is housed in a TO-247AD package type.
Yes, the Vishay VS-60APU04LHN3 is RoHS compliant.
This diode meets the AEC-Q101 automotive standard.
This model features a single diode configuration.
It belongs to the FRED Pt series.
The soft recovery feature helps to minimize switching losses and reduces electromagnetic interference (EMI) and radio frequency interference (RFI).
The country of origin for this diode is India.
This diode is suitable for applications such as HF welding and power converters, especially in high-speed switching circuits.
