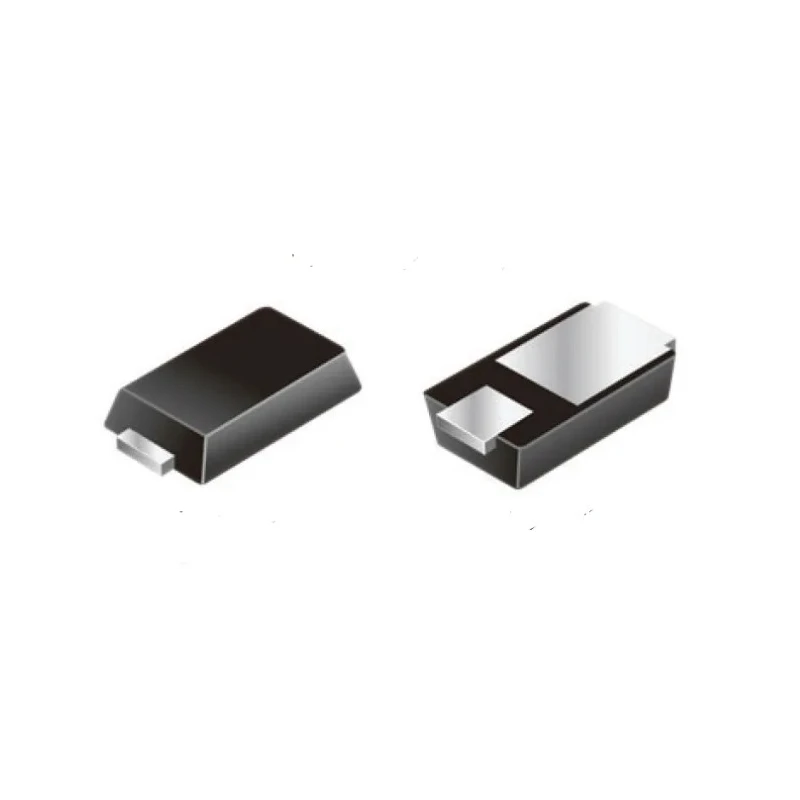

Vishay General Purpose MicroSMP Schottky Diode Rectifier 200V 2A VS-2EQH02HM3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-2EQH02HM3/H |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | MicroSMP |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 0.82V |
Key Features
- Designed for use as a general purpose rectifier and Schottky diode in surface mount applications.
- Rated for a peak reverse repetitive voltage (Vrrm) of 200V and continuous forward current (If) of 2A.
- MicroSMP package enables automated placement and minimizes profile height to 0.65mm.
- Low forward voltage drop of 0.82V, ensuring reduced power losses and higher efficiency.
- Wide operating temperature range from -55°C to 175°C with AEC-Q101 automotive compliance.
- Single diode configuration and qualified for PFC CRM snubber operations and DC/DC converter applications.
- Supports peak non-repetitive forward surge current (Ifsm) up to 30A.
- RoHS compliant, meeting environmental standards for industrial, laboratory, and automotive use.
Product Description
Vishay VS-2EQH02HM3/H is a general purpose rectifier and Schottky diode designed for industrial, laboratory, and automotive applications. Operating at a maximum repetitive reverse voltage of 200V and a continuous forward current of 2A, this diode offers reliable performance for power conversion, high-frequency switching, and PFC snubber circuits.

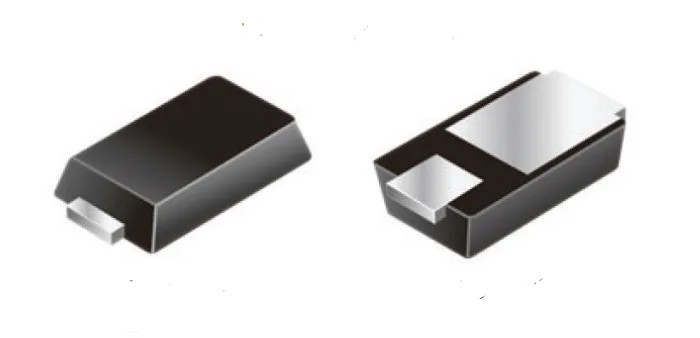

The device features a MicroSMP surface mount package, with a typical profile height of just 0.65 mm, making it ideal for automated placement on PCB assemblies. Its low forward voltage drop of 0.82V allows for greater power efficiency with reduced heat dissipation, and the wide temperature range from -55°C to 175°C ensures robust operation under demanding conditions.
With AEC-Q101 automotive standard qualification, the VS-2EQH02HM3/H is suitable for a range of commercial and industrial environments, including automotive electronics, power supplies, DC/DC converters, and snubber operation circuits. Single diode configuration and FRED Pt series credentials reinforce high reliability and performance.
MicroSMP surface mount package supports automated PCB placement and high-density board layouts. Low leakage current contributes to stable performance and minimizes overall power loss. Peak forward surge current up to 30A enables resistance to transient overloads.
Suitable for industrial, laboratory, and automotive electronics, including PFC, CRM snubber, and DC/DC conversion circuits. RoHS compliant and qualified for modern manufacturing standards, meeting global environmental directives.
Wide operating temperature range provides flexibility for harsh environments and high-thermal stability.
Applications include power rectification, high-frequency switching, freewheeling diode roles, DC/DC conversion, and snubber circuits in various sectors. The compact design reduces space requirements, making it well-suited for professional and consumer electronic devices requiring efficient rectification and fast switching times.
Discover more Vishay semiconductor and diode solutions in the Schottky Diode category at EnvMart for industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum peak reverse repetitive voltage (Vrrm) for this diode is 200V.
This model has a continuous forward current (If) rating of 2A.
The maximum forward voltage drop (Vf) is 0.82V, which contributes to reduced power losses.
The diode operates within a temperature range of -55°C to 175°C.
The peak non-repetitive forward surge current (Ifsm) is rated at 30A.
It uses a MicroSMP surface mount package, which has a profile height of 0.65mm.
Yes, it is qualified under the AEC-Q101 automotive standard.
This diode is suitable for applications such as power rectification, DC/DC conversion, and snubber circuits.
The diode is configured as a single diode.
It is RoHS compliant, meeting environmental standards for various applications.
This model belongs to the FRED Pt series.
The country of origin for this diode is India.
