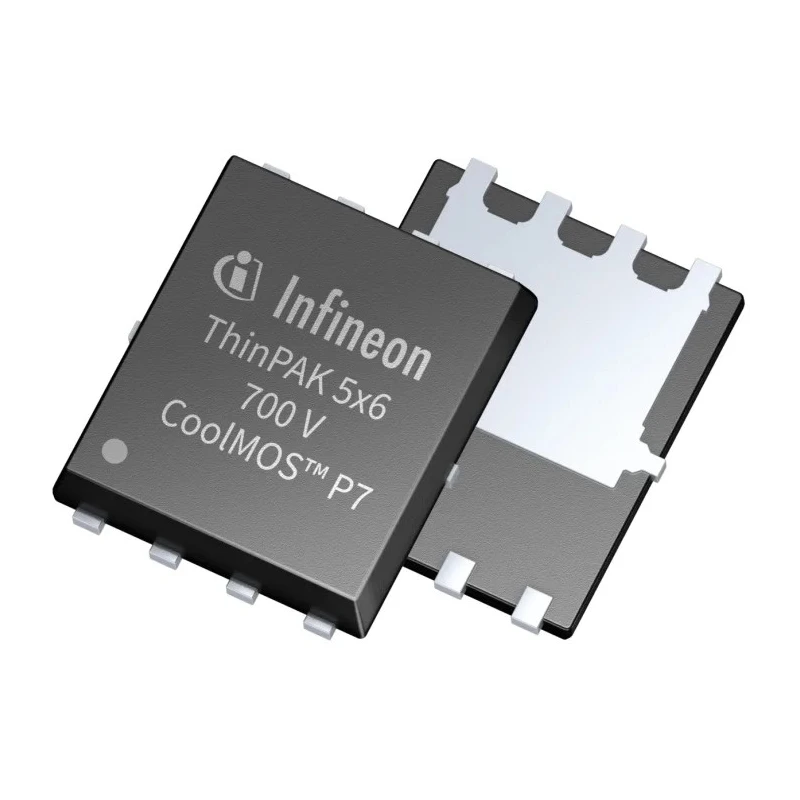

Infineon IPLK70R1K2P7ATMA1 N-Channel MOSFET 9.4A, 700V, ThinPAK 5x6, AEC-Q101

The Infineon IPLK70R1K2P7ATMA1 is a high-performance N-Channel Power MOSFET, designed to provide efficient switching and high reliability in advanced power electronics and industrial applications. This device is part of Infineon’s CoolMOS™ P7 series and features a robust 700V maximum drain-source voltage and a continuous drain current of 9.4A, making it well-suited for circuits requiring high power handling.

Packaged in a compact ThinPAK 5x6 footprint, this MOSFET offers a low-profile solution (just 1mm high), ideal for densely populated PCB layouts in modern power designs. The exceptionally low on-state resistance (Rds(on)) of 1.2mΩ significantly reduces power losses, supporting high efficiency in both switching and conduction modes. Integrated ESD protection helps safeguard sensitive electronics from transient events, further enhancing system reliability.

Type N-Channel MOSFET supporting up to 9.4A continuous drain current. High voltage endurance with maximum drain-source voltage of 700V, ideal for demanding circuits. ThinPAK 5x6 package with only 1mm profile for space-saving PCB designs.

Low Rds(on) of 1.2mΩ for minimized conduction losses and high efficiency. Features integrated ESD protection diode for reliable operation. Supports -55°C to 150°C operating temperature, suitable for harsh environments. Qualified per AEC-Q101 automotive standards and RoHS compliant.

Surface-mount package with 5 pins, streamlining assembly processes.

This MOSFET is optimized for flyback topologies in switched-mode power supplies, including power adapters, industrial drives, lighting ballasts, and automotive electronic control units. Its broad temperature tolerance, automotive qualification (AEC-Q101), and RoHS compliance make it a dependable choice for rigorous industrial and automotive designs, where both long lifetime and rugged performance are required.

With Infineon’s reputation for innovation and quality, the IPLK70R1K2P7ATMA1 delivers the performance advantages demanded by engineers designing for energy efficiency, durability, and system safety.
