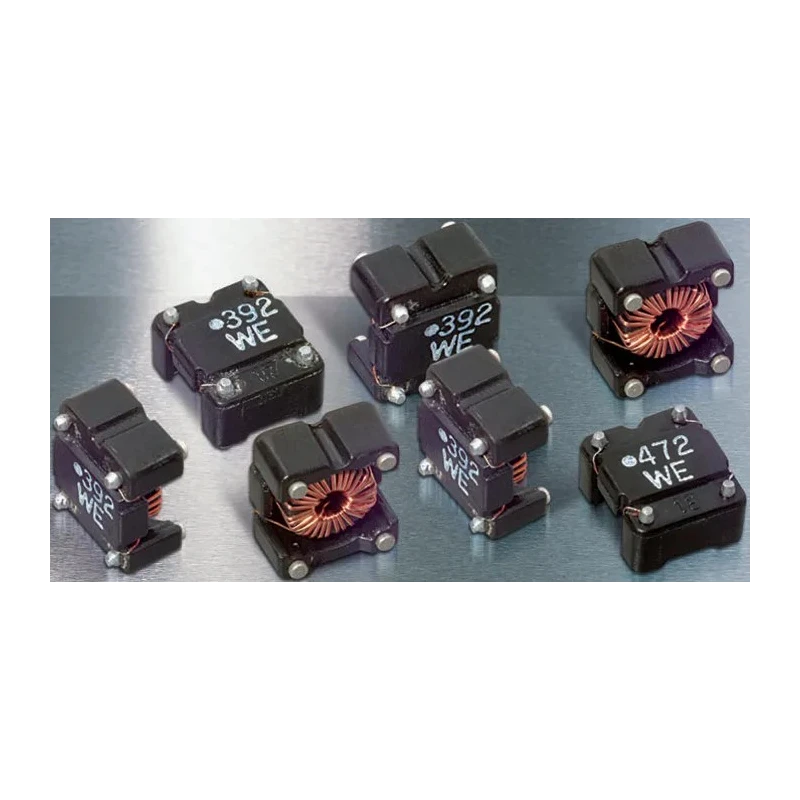

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core 4.7 mH Dual ±40% 350 mA Idc 744272472
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 10mm |
| Depth | 8.7mm |
| Packaging | Tape & Reel |
| Series | WE-SL5 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB, Firewire, data and power lines |
| Core Material | Ferrite |
| Inductance | 4.7mH |
| Standards/Approvals | UL-94-V0, RoHS |
| Maximum DC Current | 350mA |
| Maximum DC Resistance | 720mΩ |
| Inductance Tolerance | ±40 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Dual |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a dual inductor construction for efficient noise suppression.
- Constructed with a ferrite core ensuring high-performance filtering.
- Operates within a temperature range of -40°C to 125°C.
- Provides a maximum DC resistance of 720 mΩ for optimized power handling.
- Packaged in tape and reel format for automated assembly compatibility.
- Complies with automotive standard AEC-Q200 for reliability in automotive applications.
- Surface mount termination style supports compact PCB layouts.
- Ideal for filtering interfaces such as USB, Firewire, data, and power lines.
Product Description
Wurth Elektronik 744272472 is a Surface Mount Common Mode Line Filter featuring a ferrite core with an inductance of 4.7 mH and dual inductor construction. This filter has a ±40% inductance tolerance and supports a maximum DC current of 350 mA, making it ideal for noise suppression in electronic circuits.
The device operates reliably within a broad temperature range from -40°C to 125°C and provides low DC resistance of 720 milliohms, optimizing power efficiency and thermal management. Its compact dimensions - 10 mm length, 6.5 mm height, and 8.7 mm depth - suit modern surface mount technology (SMT) assembly in tight PCB spaces.
Designed with a surface mount termination style and packaged in tape and reel format, this component facilitates automated production processes. It conforms to the automotive industry standard AEC-Q200, ensuring enhanced reliability in automotive electronics. Furthermore, compliance with UL-94-V0 flammability and RoHS environmental standards makes it suitable for a wide range of industrial and commercial applications.
The Wurth Elektronik WE-SL5 series Common Mode Chokes are specifically designed for use in CAN bus interfaces, USB ports, Firewire interfaces, as well as general data and power line filtering to minimize electromagnetic interference and improve signal integrity.
Features a dual inductor for effective noise attenuation. Constructed using a high-quality ferrite core material. Automotive-grade certification with AEC-Q200 compliance. Compact 4-way SMD housing for efficient PCB layout.
Supports high impedance values, up to 13 kΩ, enhancing filtering performance. Low stray and leakage inductance improves signal clarity. Meets stringent UL-94-V0 flammability and RoHS standards. Suitable for industrial, automotive, and communication equipment applications.
Packaged for automated assembly with tape and reel.
For reliable electromagnetic interference reduction in electronic design, choose the Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter 744272472. Explore more components within the Electronics Components category at EnvMart for diversified industrial and commercial solutions.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 mH with a tolerance of ±40%.
It supports a maximum DC current of 350 mA.
This unit operates reliably within a temperature range of -40°C to 125°C.
The maximum DC resistance is 720 mΩ, optimizing power handling.
The dimensions are 10 mm in length, 6.5 mm in height, and 8.7 mm in depth.
It complies with automotive standard AEC-Q200, UL-94-V0 flammability, and RoHS environmental standards.
It features a surface mount termination style, suitable for compact PCB layouts.
It is suitable for filtering interfaces such as USB, Firewire, data, and power lines.
The inductor is constructed with a ferrite core, ensuring high-performance filtering.
It is packaged in tape and reel format, facilitating automated assembly processes.
The maximum self-resonant frequency is 100 kHz.
This model features a dual inductor construction for efficient noise suppression.
