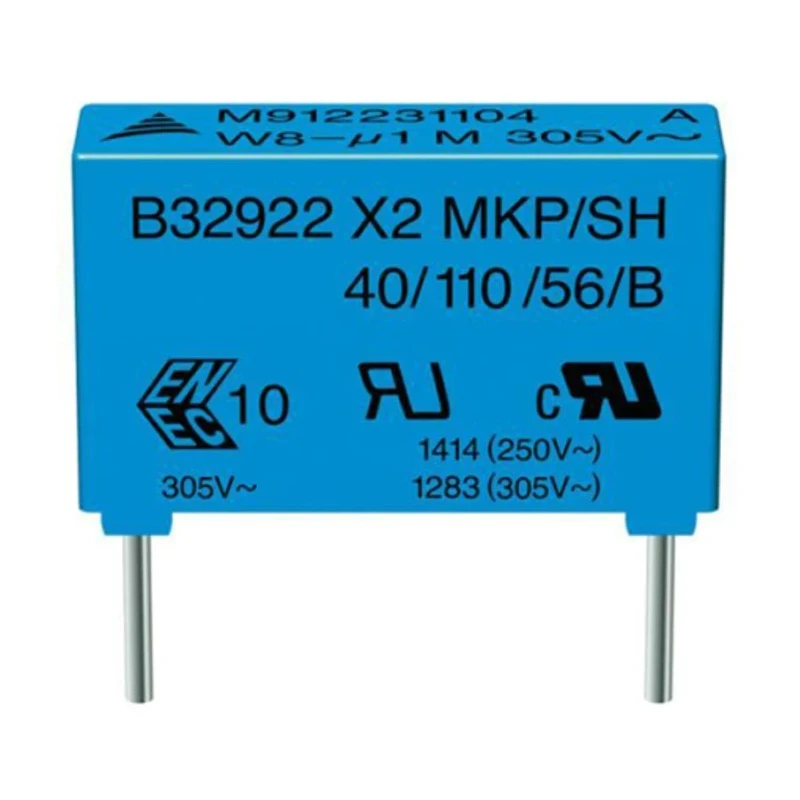

TDK Polypropylene Capacitor, 470nF, 305V AC, 630V DC, Through Hole, X2 Class, 15mm Lead Pitch B32922H3474M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Polypropylene Capacitor, 470nF, 305V AC, 630V DC, Through Hole, X2 Class, 15mm Lead Pitch B32922H3474M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	Brazil
Brand	TDK
Height	18.5mm
Length	18mm
Model	B32922H3474M000
Width	11mm
Mount Type	Through Hole
Series	B32922H
Maximum Operating Temperature	110°C
Capacitance	470nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	630V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2
Plastic Case	Epoxy Resin Sealing (UL 94 V-0)

Key Features

Provides reliable EMI suppression and self-healing properties.
Class X2 design for direct "across the line" applications.
Compact form factor with plastic case and epoxy resin sealing (UL 94 V-0).
Suitable for operating temperatures up to 110°C.
Certified to RoHS and UL standards for safety and compliance.
Features 0.8mm lead diameter and 2 pins for easy PCB integration.
Country of origin is Brazil, ensuring quality manufacturing.

Product Description

The TDK B32922H3474M000 Polypropylene Capacitor is a premium EMI suppression component designed for use in electronic circuits requiring high reliability and stable performance. With a capacitance of 470nF, it is especially suitable for applications directly across the mains supply where X2 class safety is necessary.

This capacitor operates at a rated voltage of 305V AC and 630V DC, making it versatile for both AC and DC circuit protection and filtering. Its through-hole mounting configuration and 15mm lead pitch simplify PCB design and installation, while the 0.8mm lead diameter ensures robust electrical contact.

Constructed with self-healing metalized polypropylene film and sealed in a compact plastic case with UL 94 V-0 epoxy resin, the device offers longevity and resistance to environmental stress. Its maximum operating temperature of 110°C allows for use in demanding industrial, commercial, and electronic environments.

Featuring RoHS and UL certifications, this capacitor guarantees compliance with modern safety and environmental standards. With a suppression class of X2, it is intended for "across the line" use, providing safety against mains surges without exposing users to electric shock in the event of failure.

The device packs dimensions of 18mm by 11mm by 18.5mm (LxWxH) and includes 2 pins for secure connection. It is suited for EMI suppression in power supplies, industrial control boards, HVAC systems, and automotive electronics where direct mains connection and reliable filtering are essential.

Country of origin is Brazil, reflecting global expertise in electronic component manufacturing. Engineers and designers can confidently integrate this capacitor into a broad range of circuit protection and filtering solutions.

EMI suppression with self-healing polypropylene film for enhanced reliability. Rated for 305V AC and 630V DC operation in safety-critical environments. Through-hole mounting with 15mm lead pitch and 0.8mm lead diameter. Plastic case sealed with UL 94 V-0 epoxy resin for optimum safety.

Certified to RoHS and UL standards, X2 suppression class. Operating temperature range up to 110°C for versatile use. Compact dimensions streamline PCB layouts and integration. Explore related Film Capacitors and TDK solutions in the Electronics Components category for industrial, commercial, and laboratory applications on EnvMart.
