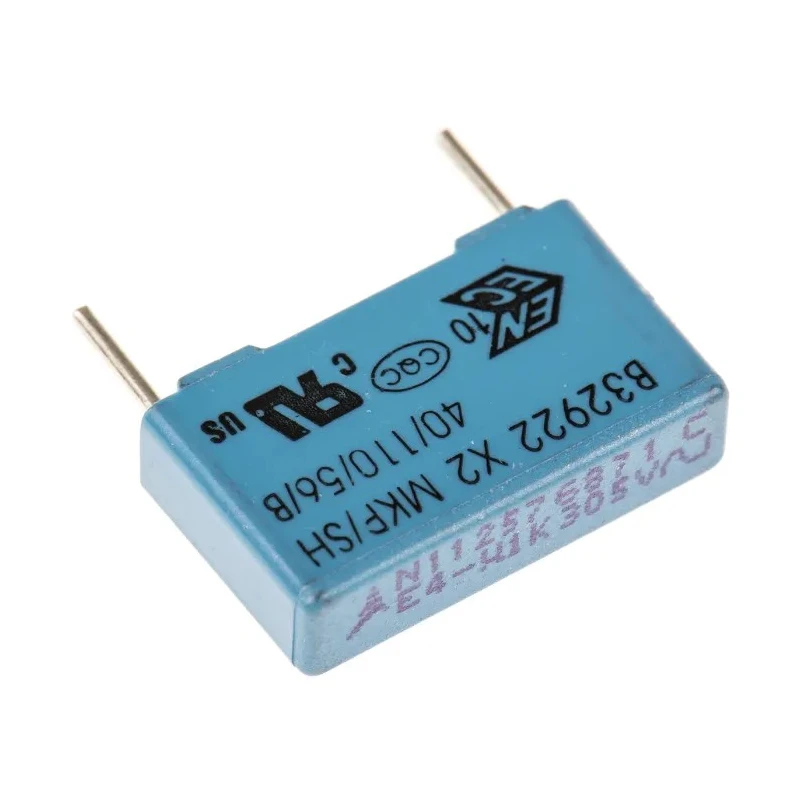

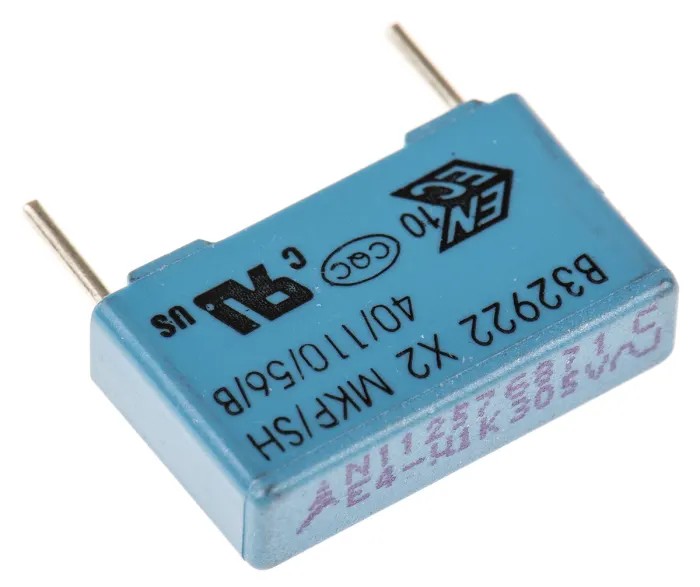

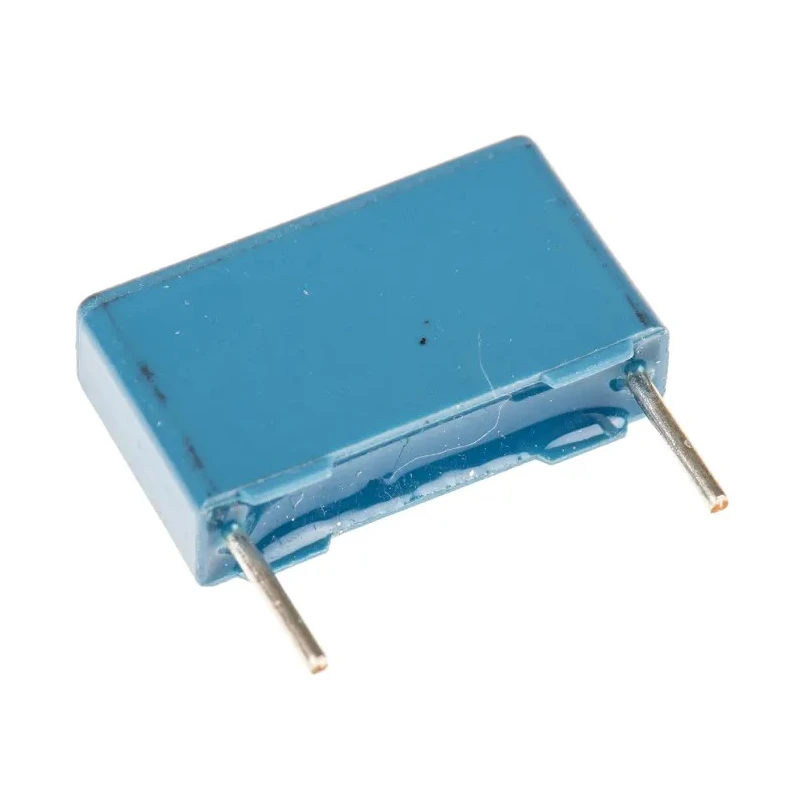

TDK Film Capacitor 100nF 305V AC 305V DC Through Hole X2 Class B32922C3104K000

TDK B32922C3104K000 Film Capacitor is a high-quality, through hole X2 class capacitor designed for EMI suppression in electrical and electronic assemblies. With a capacitance of 100nF and dual voltage ratings of 305V AC and 305V DC, it ensures reliable filtering and safety in circuits exposed to fluctuating voltages. Its robust self-healing metallized polypropylene construction and flame-retardant plastic case (UL 94 V-0) make it suitable for demanding environments, including industrial, laboratory, and commercial applications.

The capacitor uses a through hole mounting scheme, providing mechanical stability in PCB designs and equipment assemblies where vibration and robustness are required. It features a lead pitch of 15mm and lead diameter of 0.8mm, fitting common PCB layouts. Its compact form factor, with dimensions of 18mm length, 10.5mm height, and 5mm width, makes it ideal for space-constrained installations.

This product belongs to the TDK B32922C series, known for its small dimensions and reliable operation. X2 class capacitors like this model are specifically engineered for "across the line" or parallel connection to the mains, which is essential for suppressing electromagnetic interference (EMI) without risking electric shock in the event of capacitor failure.

TDK B32922C3104K000 also offers self-healing properties, providing extra operational reliability during voltage surges or spikes. Its maximum operating temperature is 105°C, supporting safe performance in industrial and commercial electronics exposed to high temperatures. The capacitor is fully compliant with RoHS and UL safety standards.

Typical applications include in power supplies, industrial controls, instrumentation, HVAC systems, and any equipment requiring effective EMI filtration across AC mains. The capacitor is supplied in production packs suitable for automated insertion machinery, streamlining manufacturing workflows and ensuring consistent installation.

Provides a capacitance of 100nF for effective power conditioning. Rated for both 305V AC and 305V DC for versatile circuit compatibility. Through hole mount design enables secure placement on PCB assemblies. Features X2 class EMI suppression, self-healing, and flame-retardant plastic casing (UL 94 V-0).

Suitable for use in "across the line" applications in industrial and commercial electronics. Dimensions are compact: 18mm length, 10.5mm height, 5mm width. Lead pitch of 15mm and lead diameter of 0.8mm ensures compatibility with standard PCBs.

Operates up to a maximum temperature of 105°C for demanding environments.

TDK capacitors are preferred in the electronics industry for their safety, reliability, and performance. Explore more industrial-grade capacitors and passive components in the Film Capacitor category on EnvMart.
