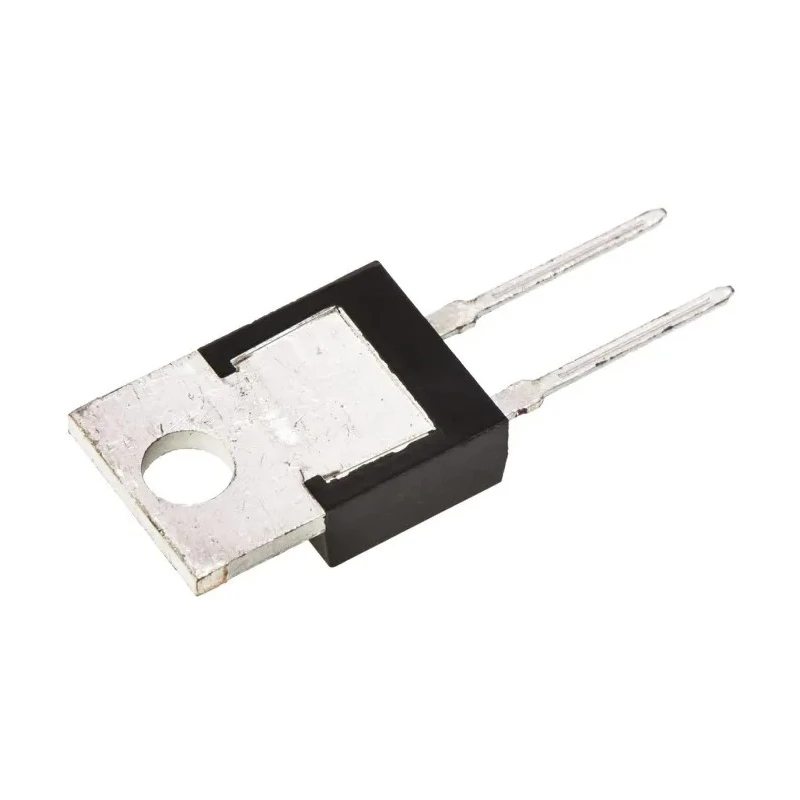

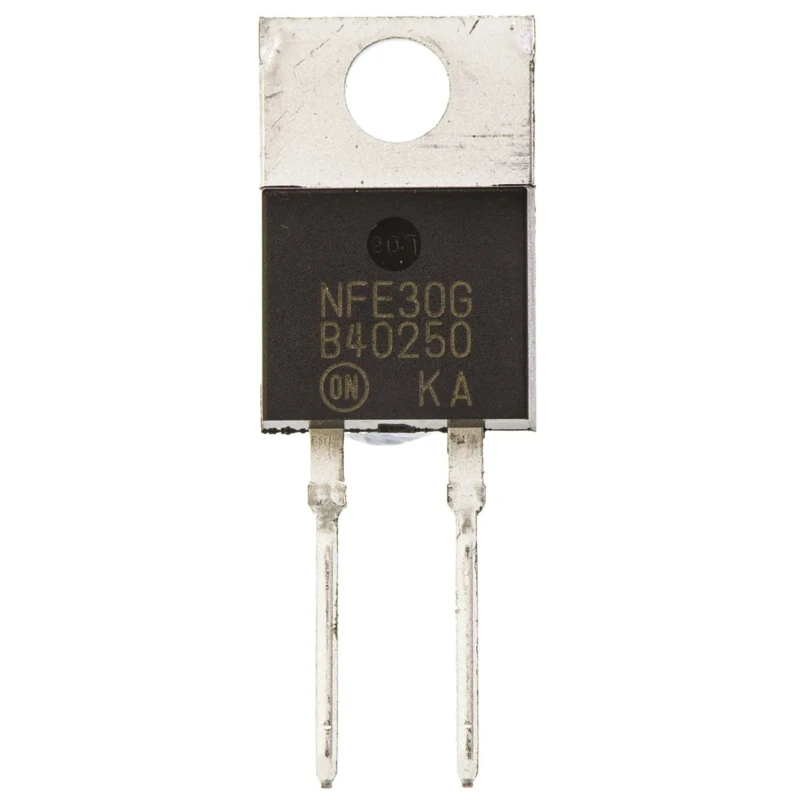

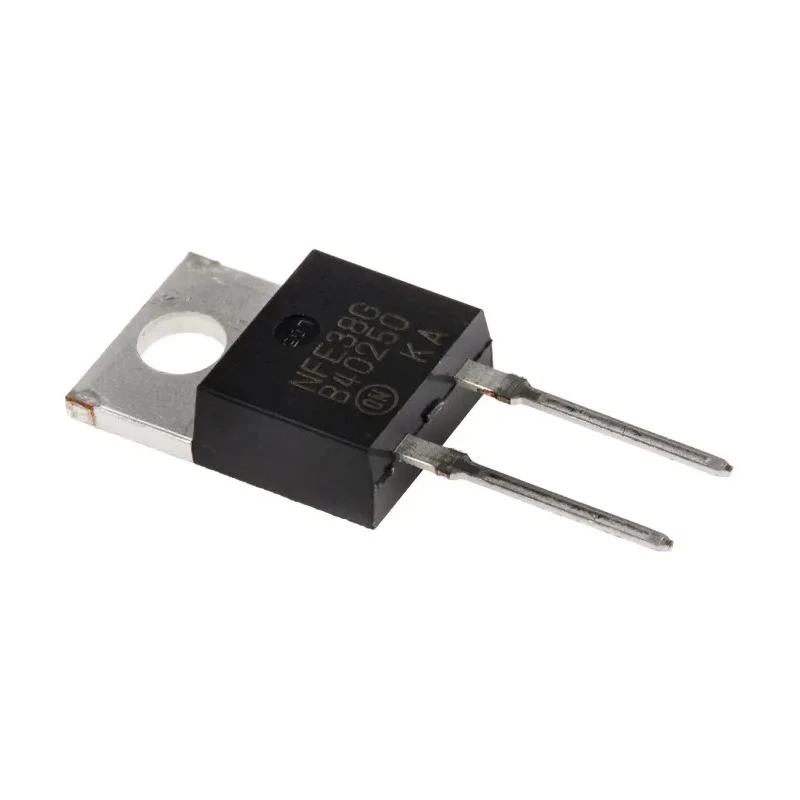

onsemi Schottky Barrier Diode 250V 40A TO-220 Package MBR40250G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 9.27mm |
| Length | 10.29mm |
| Model | MBR40250G |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 250V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.86V |
| Peak Reverse Recovery Time trr | 35ns |
Key Features
- Efficient Schottky barrier rectification designed for high-frequency, low-voltage applications.
- Maximum continuous forward current rating is 40A for robust circuit protection.
- Peak repetitive reverse voltage capability is 250V, suitable for demanding loads.
- Compact TO-220 package with 2-pin through-hole mounting for easy PCB assembly.
- Features low forward voltage drop of 0.86V and fast recovery time of 35ns.
- Epoxy-moulded case enables reliability and lightweight design.
- Operating temperature range from -65°C to 150°C, ensuring stability in harsh environments.
- Pb-Free and optimized for automated board assembly, providing efficient production and environmental compliance.
Product Description
The onsemi MBR40250G is a high-performance Schottky barrier power diode specifically engineered for demanding high-frequency and low-voltage rectification applications. Featuring a maximum continuous forward current of 40A and a peak repetitive reverse voltage of 250V, this diode is ideally suited for power conversion, freewheeling, and polarity protection circuits in industrial and commercial environments.
This device utilizes the Schottky barrier principle, ensuring both a low forward voltage drop (0.86V typical) and minimal reverse leakage current, enhancing efficiency in switching power supplies and converters. The TO-220 package offers a compact and lightweight form factor (approximately 11.7mg), with a 2-pin through-hole configuration to facilitate secure installation on printed circuit boards during automated board assembly processes.
Designed for operating environments requiring durability and reliable performance, the MBR40250G delivers a minimum operating temperature of -65°C and a maximum operating threshold of 150°C. The rectifier offers rapid switching characteristics with a fast recovery time of 35ns, further promoting system efficiency and supporting advanced protection features. Stress protection guarding and an epoxy-moulded case ensure robust mechanical strength and extended product lifespan.
The diode is Pb-Free, and is manufactured to support optimal environmental compliance while enabling efficient automated production. Mechanical dimensions include a length of 10.29mm, width of 4.82mm, and height of 9.27mm, fitting standard industrial electronics configuration requirements. The device is not automotive qualified and is intended for industrial and commercial usage.
Typical application domains include switching power supplies, DC-DC converters, polarity protection, and high-speed rectification in electronic control systems. Users benefit from reliable performance across wide temperature variations and robust surge protection up to 150A peak non-repetitive forward surge current.
Explore the full range of onsemi Schottky Diodes to meet diverse electronic design needs within the Electronics & Electricals category. For more technical solutions, browse onsemi's complete portfolio on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 40A, suitable for robust circuit protection.
It has a peak repetitive reverse voltage capability of 250V, making it suitable for demanding loads.
The maximum forward voltage drop for this diode is 0.86V, which enhances efficiency in power applications.
The peak reverse recovery time is 35ns, providing rapid switching characteristics for improved system efficiency.
The dimensions of the TO-220 package are 10.29mm in length, 4.82mm in width, and 9.27mm in height.
This model operates within a temperature range of -65°C to 150°C, ensuring stability in harsh environments.
It features a 2-pin through-hole mounting configuration for easy installation on printed circuit boards.
The peak non-repetitive forward surge current is 150A, providing robust surge protection.
This model is a Schottky rectifier, designed for high-frequency and low-voltage rectification applications.
The peak reverse current is 30μA, indicating minimal reverse leakage current for enhanced efficiency.
No, this diode is not automotive qualified and is intended for industrial and commercial usage only.
The country of origin for this model is India.
