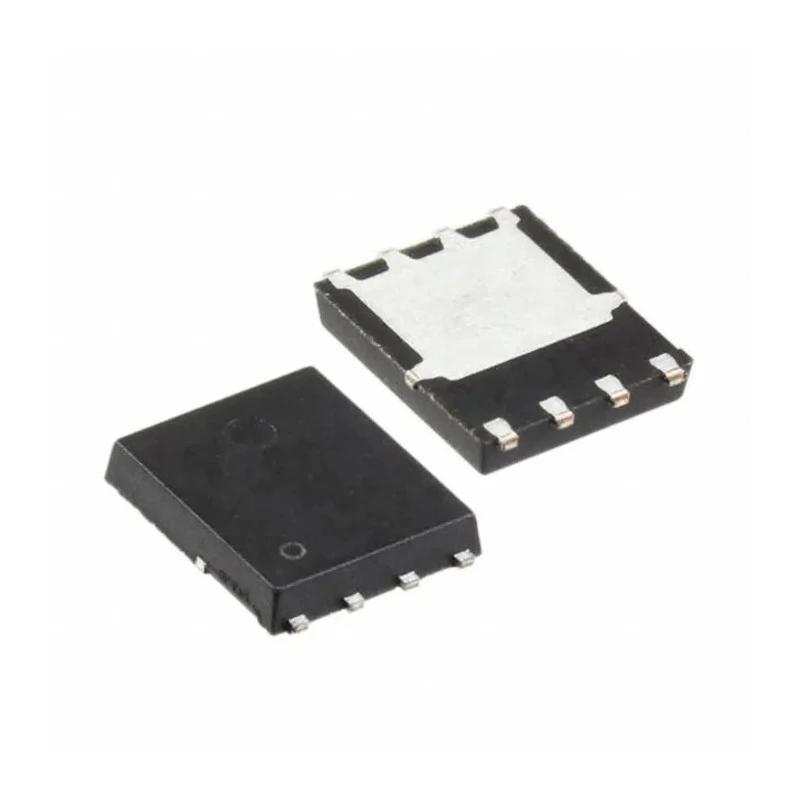

onsemi N-Channel Automotive Power MOSFET 477A 60V Enhancement DFN 8-Pin NVMTS0D7N06CLTXG
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | onsemi |
| Height | 1.15mm |
| Length | 8.1mm |
| Model | NVMTS0D7N06CLTXG |
| Width | 8mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DFN |
| Minimum Operating Temperature | -55°C |
| Pin Count | 8 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 477A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 900μΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 294.6W |
| Typical Gate Charge Qg @ Vgs | 225nC |
| Maximum Gate Source Voltage Vgs | 20V |
Key Features
- Delivers exceptional performance with a continuous drain current of 477A.
- Supports a maximum drain source voltage of 60V, suitable for automotive circuits.
- Compact DFN package (8.1mm x 8mm), ideal for space-constrained PCB designs.
- Low RDS(on) for minimal conduction losses and improved efficiency.
- Enhancement mode operation with wettable flank option for enhanced optical inspection.
- PPAP capable and conforms to AEC-Q101 automotive standards.
- Operates reliably in extreme environments with -55°C to 175°C temperature range.
Product Description
The onsemi NVMTS0D7N06CLTXG automotive-grade N-channel power MOSFET combines high current capacity and low RDS(on) in a compact 8-pin DFN package. Designed for motor control, load switch, and high-efficiency switching applications, it delivers robust performance ideal for demanding automotive and industrial systems.
This MOSFET allows for a continuous drain current of up to 477A and a maximum drain source voltage of 60V, making it suitable for power switches, battery protection, and high side/low side driver circuits. Its wettable flank package design supports enhanced optical inspection for automated assembly quality control and PPAP compliance.
Engineered for efficiency, the device features a typical gate charge of 225nC and low capacitance, minimizing driver and conduction losses. It withstands a wide operating temperature range from -55°C to 175°C, guaranteeing stable operation even in harsh environmental conditions encountered in automotive systems such as EPS, wipers, fans, seats, chassis, and body ECUs.
The NVMTS0D7N06CLTXG is ideal for switching power supplies, load switch applications, and motor control solutions. Its surface-mount DFN package (8.1mm length, 8mm width, 1.15mm height) is optimized for high density PCB layouts, delivering thermal performance and reduced footprint.
High current performance for demanding automotive and industrial applications. Compact, wettable flank DFN package facilitates automated optical inspection. Low RDS(on) and Qg minimize conduction and driver losses. Extensive temperature tolerance, supporting reliable performance in challenging environments.
Automotive standards conformance (AEC-Q101) and PPAP capability for enhanced quality.
Use cases include automotive motor control, switching power supplies, battery protection circuits, and advanced load switches. This device is suitable for installation in electronic control units, chassis modules, and compact industrial PCB designs.
Explore more automotive-grade MOSFETs from onsemi in the MOSFET category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the NVMTS0D7N06CLTXG is 477A.
It supports a maximum drain source voltage of 60V.
The DFN package measures 8.1mm in length, 8mm in width, and 1.15mm in height.
This model operates reliably within a temperature range of -55°C to 175°C.
It uses an N-channel type configuration, designed for enhancement mode operation.
It conforms to the AEC-Q101 automotive standard.
The typical gate charge is 225nC at Vgs.
The maximum power dissipation is rated at 294.6W.
It is suitable for automotive motor control, switching power supplies, battery protection circuits, and advanced load switches.
The maximum gate source voltage for this device is 20V.
The maximum drain source resistance is 900μΩ.
This model utilizes a surface mount type for installation.
