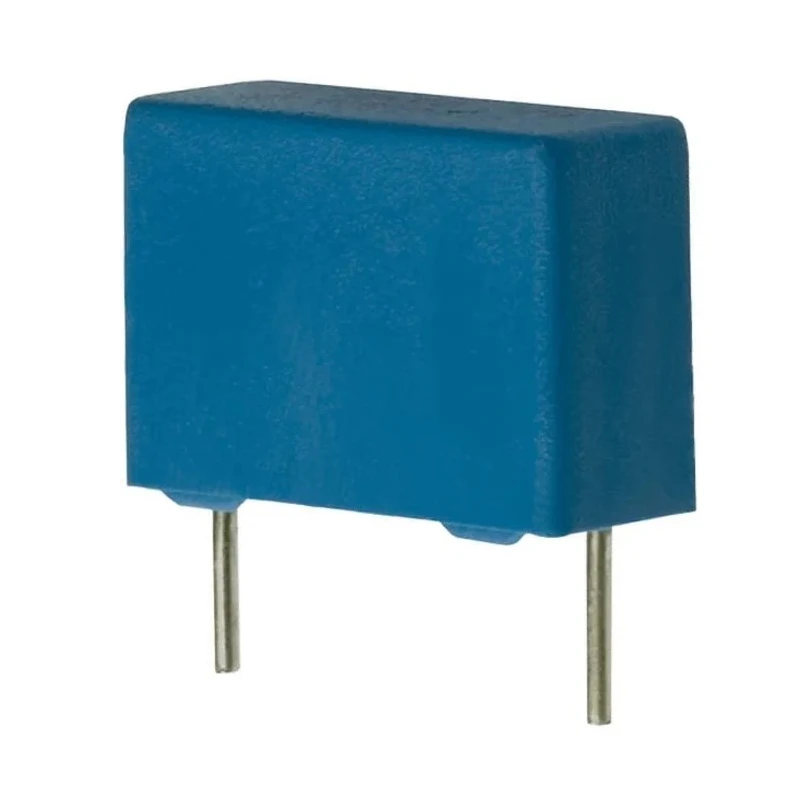

TDK Polypropylene Film Capacitor 680 nF 305V AC/DC Through Hole 2-Pin B32922C3684K189
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 18.5mm |
| Length | 18mm |
| Model | B32922C3684K189 |
| Width | 11mm |
| Mount Type | Through Hole |
| Series | B32922C |
| Maximum Operating Temperature | 110°C |
| Capacitance | 680nF |
| Pin Count | 2 |
| Rated AC Voltage | 305V ac |
| Rated DC Voltage | 305V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Suppression Class | X2 |
Key Features
- Capacitance of 680 nF supports efficient noise reduction.
- Rated for AC and DC voltages up to 305 volts.
- Features a 15 mm lead pitch and 0.8 mm lead diameter for through-hole mounting.
- Compact dimensions with length 18 mm, width 11 mm, and height 18.5 mm.
- Operates reliably up to a maximum temperature of 110°C.
- Plastic case with epoxy sealing provides durability and self-healing properties.
- Leads made from lead-free tinned parallel wire.
- Suitable for industrial, electronic assembly, and manufacturing applications.
Product Description
TDK B32922C3684K189 Polypropylene Film Capacitor 680 nF 305V AC/DC is a high-quality through-hole capacitor designed for effective EMI suppression in electronic circuits. This component features polypropylene dielectric material, ensuring stable performance and reliability across industrial and commercial electronics applications.
The capacitor is rated for 305 volts AC and DC voltage, suitable for many power electronics use cases. Compact dimensions (18 mm length, 11 mm width, 18.5 mm height) and a 15 mm lead pitch make it compatible with standard through-hole PCB layouts.
With a maximum operating temperature of 110°C, this capacitor maintains functionality in demanding environmental conditions. The plastic enclosure and epoxy sealing enhance durability and provide self-healing properties to extend operational life.
The leads consist of lead-free tinned parallel wire, supporting environmental compliance and ease of soldering during assembly. Capacitance: 680 nF for noise filtering and suppression. Rated voltage: 305V AC and DC for versatile application.
Lead pitch: 15 mm for standard mounting configurations. Maximum operating temperature: 110°C ensures stability under heat stress. Complies with IEC and EN standards ensuring quality and safety. Plastic case and epoxy sealing offer protection and longevity.
Lead-free tinned leads promote environmental compliance. Compact size fits various electronic system designs. Ideal for industrial, manufacturing, and electronic assembly use cases.
This TDK polypropylene film capacitor is a reliable choice for EMI suppression tasks in commercial and industrial electronic assemblies. It balances performance, durability, and compliance to international standards, making it a versatile component for engineers and manufacturers.
Explore more high-quality capacitors in the Film Capacitor category at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 680 nF, which supports efficient noise reduction in electronic circuits.
It is rated for both AC and DC voltages up to 305 volts.
The dimensions are 18 mm in length, 11 mm in width, and 18.5 mm in height.
The maximum operating temperature is 110°C, allowing it to function reliably in demanding conditions.
The lead pitch is 15 mm, which is compatible with standard through-hole PCB layouts.
This model supports through-hole mounting, making it suitable for various electronic assembly applications.
The lead diameter is 0.8 mm, which is standard for through-hole components.
It features a plastic case with epoxy sealing, providing durability and self-healing properties.
It complies with IEC and EN standards, ensuring quality and safety in its applications.
The leads are made from lead-free tinned parallel wire, supporting environmental compliance during assembly.
It is suitable for industrial, electronic assembly, and manufacturing applications, particularly for EMI suppression.
This capacitor belongs to the B32922 series, which includes various models for similar applications.
