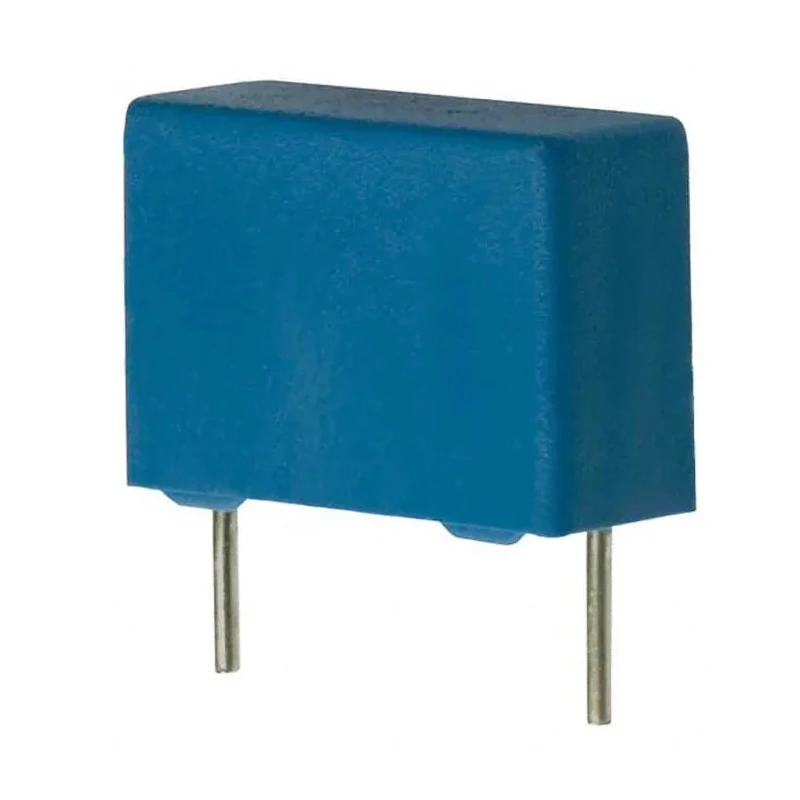

TDK Film Capacitor 100 nF 1.25 kV AC 1.25 kV DC Through Hole Mount B32654A7104J000

The TDK B32654A7104J000 is a high-quality film capacitor featuring a capacitance of 100 nF and voltage ratings of 1.25 kV AC and 1.25 kV DC. It is designed for through hole mounting with a pin count of 2 and a lead pitch of 27.5 mm, making it suitable for a variety of electronic applications including switch-mode power supplies and electronic ballasts.

Constructed to operate reliably up to a maximum temperature of 110°C, this capacitor meets strict safety and environmental standards including RoHS and UL, and complies with the AEC-Q200 Rev D automotive standard. It offers high pulse strength and very low inductance in a compact form factor measuring 31.5 mm in length, 21 mm in height, and 11 mm in width, accommodating efficient PCB layouts.

The capacitor's construction with lead-free tinned parallel wire leads and a lead diameter of 0.8 mm supports superior contact reliability and environmentally friendly manufacturing. These features make it an ideal component for industrial, automotive, and electronic manufacturing sectors where high voltage resistance and safety approvals are essential.

Capacitance: 100 nF. Rated voltages: 1.25 kV AC / 1.25 kV DC. Through hole mount with 2 pins and 27.5 mm lead pitch. Maximum operating temperature: 110°C. Dimensions: 31.5 mm × 21 mm × 11 mm (L × H × W). Compliant to RoHS and UL standards.

Automotive AEC-Q200 Rev D compliant. Lead diameter: 0.8 mm with lead-free tinned wires.

This Film Capacitor is optimally suited for electronic assembly, power supply filters, and industrial controls. It enhances performance in safe, high voltage applications within electronics manufacturing and automotive electronics sectors. EnvMart provides a wide range of TDK capacitors and components for modular and reliable electronic designs.
