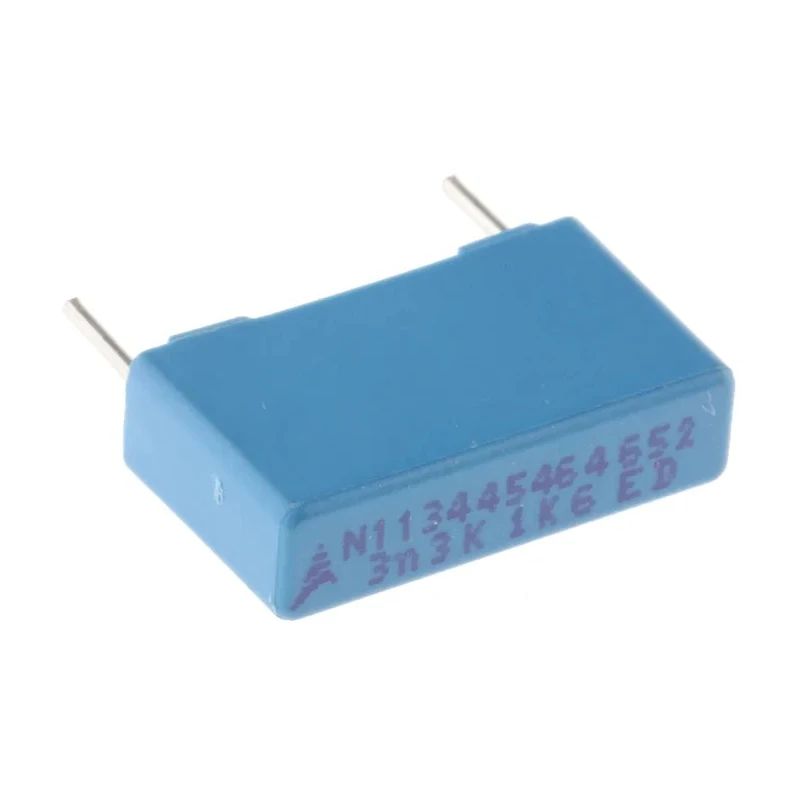

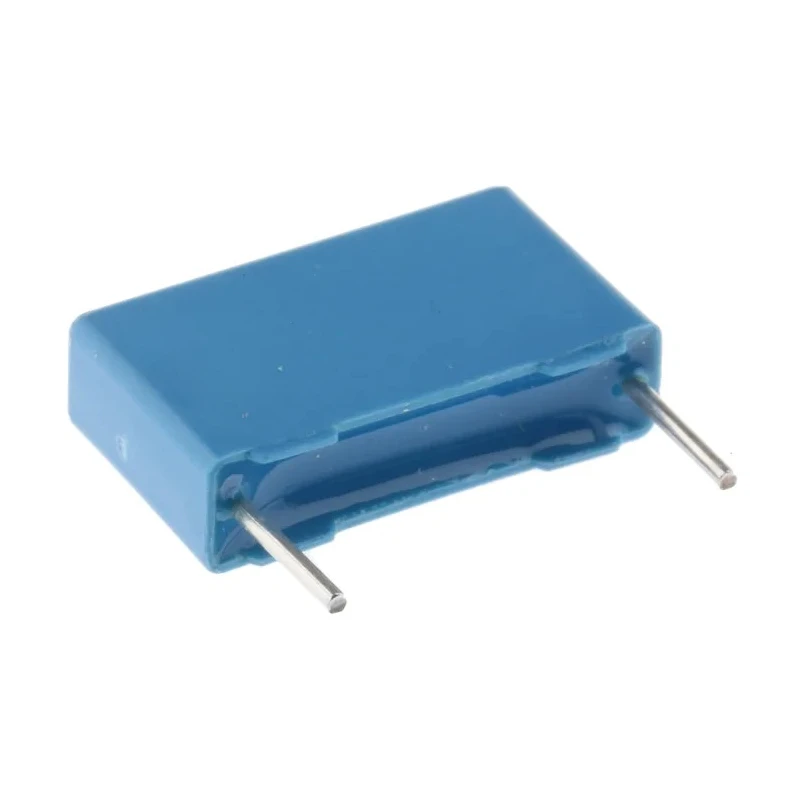

TDK B32654 Film Capacitor 3.3 nF 500V AC 1.6 kV DC Through Hole 2 Pin Lead Pitch 15mm B32652A1332K000

TDK B32652A1332K000 Film Capacitor is a precision passive electronic component designed for industrial, electronic, and automotive applications requiring reliable high voltage and stable capacitance.

This capacitor uses advanced wound capacitor technology with an internal series connection, enabling rated voltages of 500V AC and 1.6kV DC. The plastic case confirms to the UL 94 V-0 flame retardant standard and includes an epoxy resin seal to ensure superior environmental protection and longevity under demanding conditions.

The through hole mount type with a lead pitch of 15mm and 2 pins, along with a 0.8mm lead diameter allows easy PCB integration while maintaining high contact reliability during operation. The capacitor can withstand a maximum operating temperature of 100°C and meets the automotive grade AEC-Q200 Rev D standard, making it suitable for critical automotive electronic circuits.

Measured capacitance is 3.3 nanofarads (nF), ideal for use in TV S-correction, TV flyback transformers, and electronic ballast circuits. Its compact dimensions - 18mm length, 10.5mm height, and 5mm width - allow for efficient board layout and design flexibility.

Wound capacitor technology with internal series connection for voltages above 1250 V DC. Plastic case and epoxy resin sealing provide flame retardance and protection against environmental factors. High pulse strength design supports demanding electronic applications.

Compliance with automotive AEC-Q200 Rev D ensures suitability for automotive electronics. Small size fits compact electronic assemblies.

Overall, this TDK film capacitor is engineered to deliver reliable performance in industrial, automotive, and electronic circuit applications requiring stable capacitance and endurance at high voltages and temperatures.
