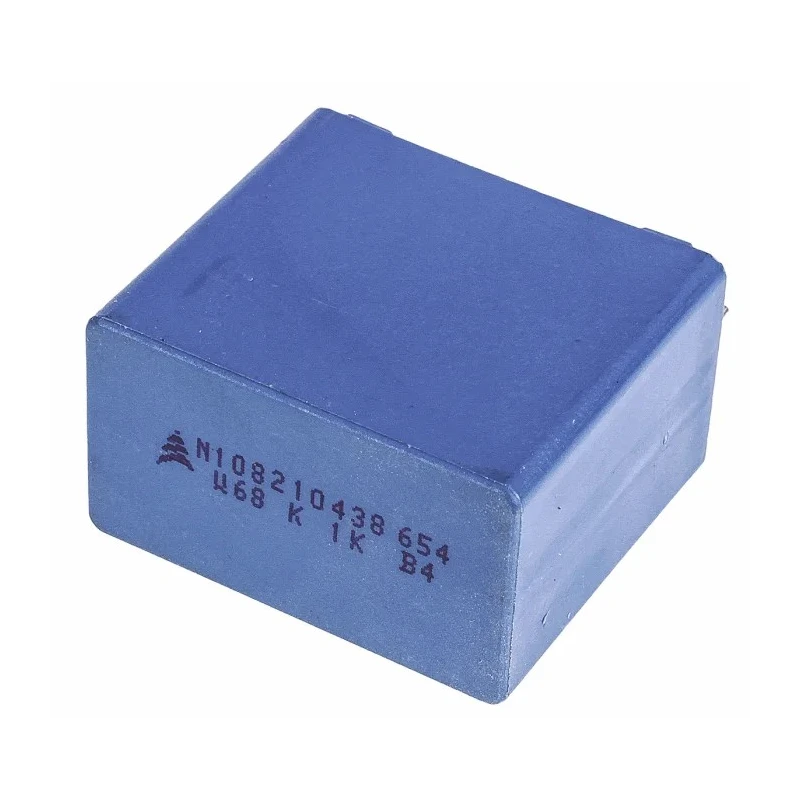

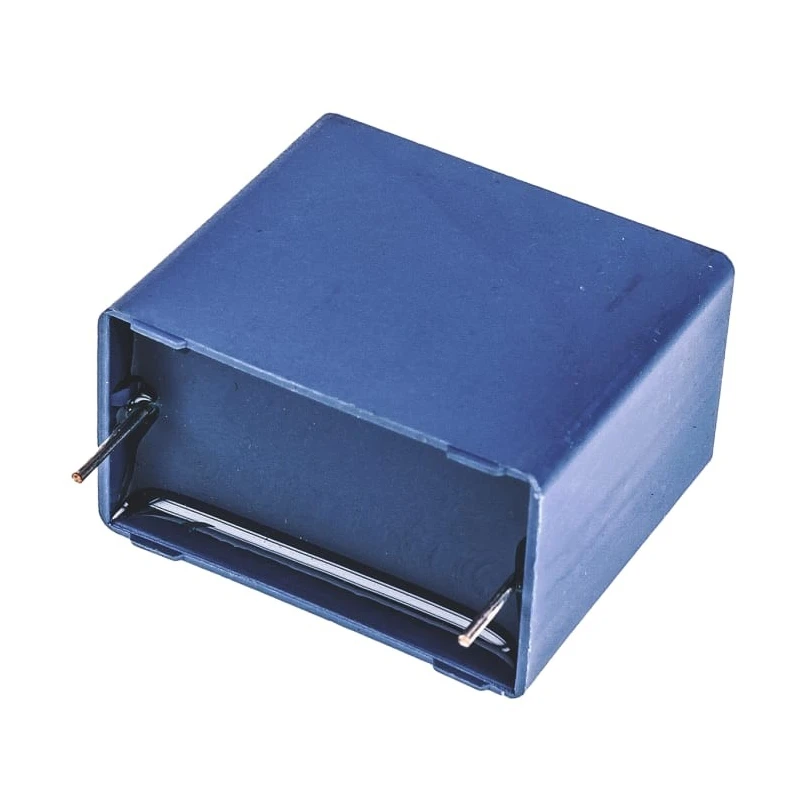

TDK Film Capacitor 680 nF 250V AC 1 kV DC Through Hole 2 Pin B32654A0684K000

The TDK B32654A0684K000 is a high-quality film capacitor with a capacitance of 680 nanoFarads (nF), designed for through-hole mounting with 2 pins. Rated at 250V AC and 1 kV DC, it provides robust electrical performance for industrial and commercial electronic applications.

Featuring wound capacitor technology with an internal series connection, this capacitor can handle voltages up to 1250 V DC. The unit is housed in a flame retardant plastic case compliant with UL 94 V-0 standards, ensuring added safety and durability, sealed with epoxy resin to protect against environmental stress.

With a compact form factor measuring 31.5 mm in length, 18 mm in width, and 27.5 mm in height, and a lead pitch of 27.5 mm, it is suitable for PCB layouts requiring precise dimensions. The 0.8 mm lead diameter ensures secure soldering and stable electrical contact.

The capacitor is rated for operation at temperatures up to 100°C, making it suitable for demanding industrial applications. Compliance with the automotive standard AEC-Q200 Rev D assures reliability in automotive electronics and related sectors.

Typical uses include TV S-correction, TV flyback circuits, and electronic ballast circuits where high pulse strength and contact reliability are essential. This capacitor uses wound capacitor technology with internal series connection for high voltage endurance.

Encapsulated in a UL 94 V-0 flame retardant plastic case with epoxy resin sealing. Offers high pulse strength and dependable contact reliability. Compact footprint supports efficient PCB layouts. Rated for 100°C maximum operating temperature.

Automotive standard AEC-Q200 Rev D certified for demanding environments. Conforms to RoHS and UL standards for environmental and safety compliance. Dual AC/DC voltage ratings enable diverse application compatibility.

Recognized for its quality and reliability, the TDK B32654A0684K000 film capacitor is an optimal choice for electrical engineers and manufacturers seeking proven performance in passive electronic components.
