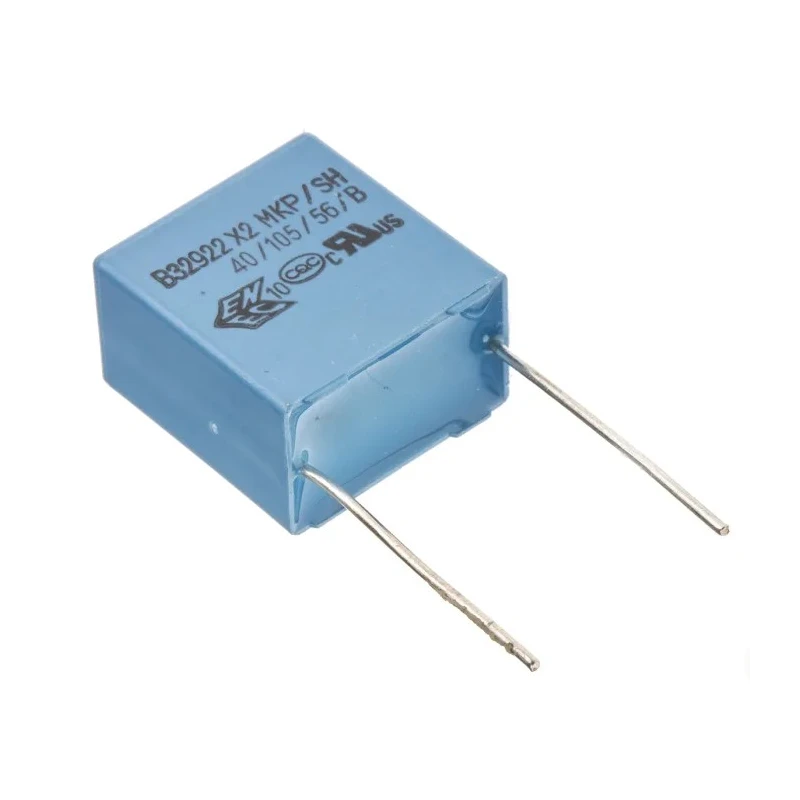

TDK Film Capacitor 680 nF 305V AC 305V DC Through Hole, Suppression Class X2, B32922C3684M189

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 680 nF 305V AC 305V DC Through Hole, Suppression Class X2, B32922C3684M189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	18.5mm
Length	18mm
Model	B32922C3684M189
Width	11mm
Mount Type	Through Hole
Series	B32922C
Maximum Operating Temperature	110°C
Capacitance	680nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	305V ac
Rated DC Voltage	305V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Suppression Class	X2

Key Features

Rated for AC voltage of 305V and DC voltage of 305V.
Mount type is Through Hole with 15mm lead pitch for easy PCB insertion.
Capacitance value is 680 nanofarads with suppression class X2 suitable for line across applications.
Maximum operating temperature is rated at 110°C ensuring reliable performance.
Features self-healing plastic case with epoxy resin sealing compliant to UL 94 V-0 standard.
Lead diameter of 0.8mm with 2 pins for secure mechanical fixing.
Compliance with RoHS and UL standards guarantees environmental and safety conformity.
Not suitable for use in positions where failure could expose electric shock risks.

Product Description

TDK B32922C3684M189 Film Capacitor 680 nF rated for 305V AC and 305V DC voltage is engineered for reliable EMI suppression and noise reduction in sensitive electronic circuits. This Through Hole mounted capacitor features a suppression class X2 rating, making it suitable for direct connection across mains supply lines under "across the line" applications.

Designed with a plastic case encapsulated by epoxy resin with UL 94 V-0 flame retardant rating, the capacitor ensures exceptional self-healing properties and durability under maximum operating temperatures up to 110°C. Its compact size with an 18mm length, 11mm width, and 18.5mm height allows installation in densely packed PCBs.

The component leads have a pitch of 15mm with a 0.8mm lead diameter and a pin count of two, ensuring secure insertion and mechanical stability. Fully compliant with RoHS and UL standards, this capacitor is manufactured to meet rigorous environmental and safety requirements.

Due to its design, it must not be used in positions where failure may expose operators to electric shocks. The B32922C series is ideal for use in industrial electronic components, power supply filtering, and noise suppression circuits in manufacturing, HVAC, and other commercial equipment requiring EMI filtering.

Rated AC voltage: 305V AC ensuring compatibility with common industrial power supplies. Capacitance of 680nF suitable for EMI noise filtering and suppression. High temperature operation up to 110°C for demanding environments.

Compact Through Hole form factor promotes easy PCB integration. Self-healing plastic encapsulation enhances longevity and safety. Compliance with RoHS and UL standards for environmental and safety assurance. Lead pitch of 15mm supports secure mechanical fitting.

Suppression class X2 suitable for mains across the line applications. Pin count of 2 with lead diameter of 0.8mm for reliable mounting. Not intended for applications exposing electric shock risk upon failure.

This TDK Film Capacitor is suited for use in electronics manufacturing, industrial machinery controls, HVAC systems, and other commercial electrical devices requiring effective interference noise suppression and compliance with safety regulations. Explore more Film Capacitors and related electronic components on EnvMart for professional-grade industrial solutions.
