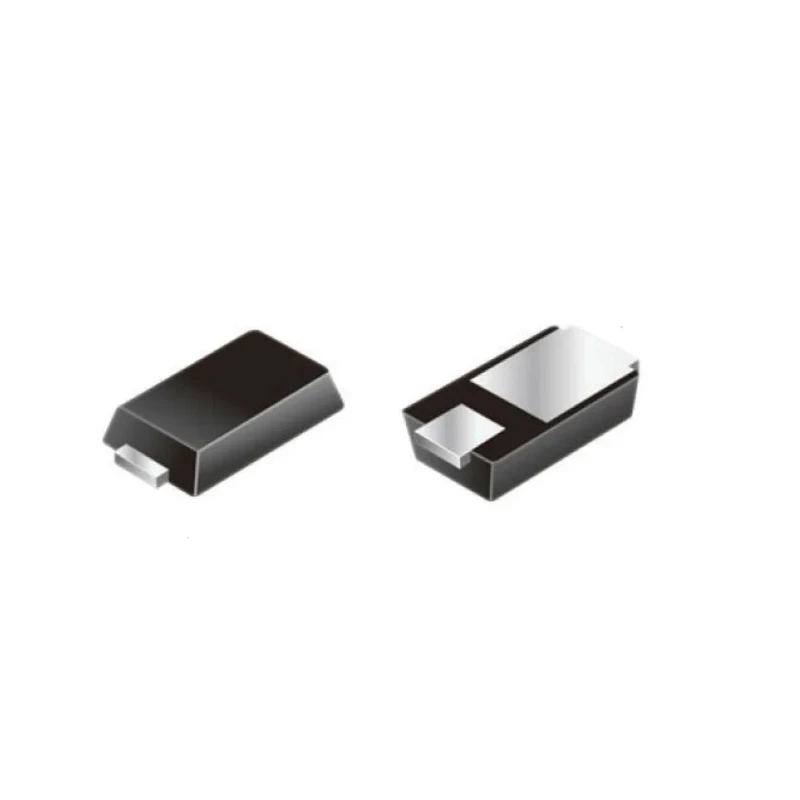

Vishay 100 V 1 A General Purpose Rectifier & Schottky Diode Surface Mount MicroSMP MSE1PBHM3/89A

Vishay MSE1PBHM3/89A is a surface mount general purpose rectifier and Schottky diode designed for electronic circuit protection and rectification applications. Packaged in a low-profile MicroSMP case, this diode meets demanding performance requirements in a compact surface mount solution.

The device supports a maximum continuous forward current of 1 ampere and can withstand peak reverse repetitive voltages up to 100 volts. Its low forward voltage drop of 0.92 volts minimizes power loss and heat generation, contributing to overall circuit efficiency.

Operating temperature range spans from −65°C up to 150°C, making it suitable for harsh environments. It also features a 20 ampere peak forward surge current capacity for durability during transient events.

The diode offers ESD capability, ensuring robustness against electrostatic discharge. The oxide planar chip junction technology guarantees consistent electrical characteristics. This component is compliant with RoHS regulations, emphasizing environmental and safety standards.

Maximum continuous forward current of 1 ampere. Peak reverse repetitive voltage rating: 100 volts. Single diode configuration for general purpose rectification. Low forward voltage drop at 0.92 volts. Wide operating temperature range from −65°C to 150°C.

Peak non-repetitive forward surge current rating of 20 amperes. RoHS compliant for environmental safety. Surface mount technology in MicroSMP package.

This diode is ideal for polarity protection and rail-to-rail protection in electronic consumer devices and automotive applications. Its surface mount design enables automated placement on PCBs, enhancing production efficiency.
