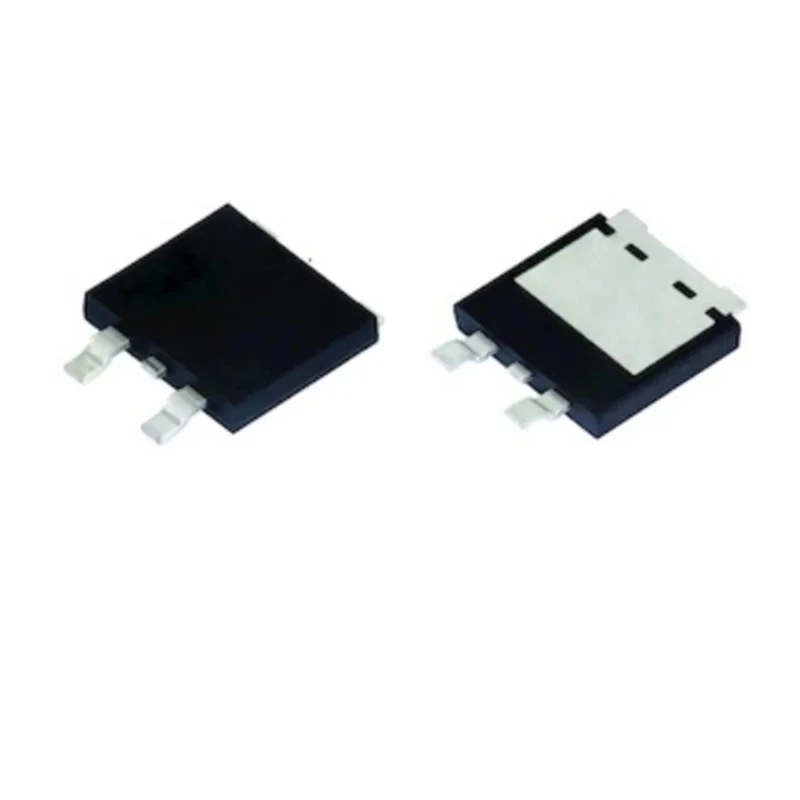

Vishay General Purpose Diode 600 V 10 A Surface Mount TO-263AC Package D2PAK

Free Delivery in India | Lowest Global Shipping Charges

Vishay General Purpose Diode 600 V 10 A Surface Mount TO-263AC Package D2PAK

Name: Vishay General Purpose Diode 600 V 10 A Surface Mount TO-263AC Package D2PAK
Brand: Vishay
SKU: 403617
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Height	1.8mm
Length	12.93mm
Model	D2PAK
Width	10.2mm
Mount Type	Surface
Maximum Operating Temperature	175°C
Package Type	TO-263AC
Minimum Operating Temperature	-55°C
Pin Count	3
Maximum Continuous Forward Current If	10A
Peak Reverse Repetitive Voltage Vrrm	600V
Diode Configuration	Single
Rectifier Type	General Purpose
Peak Reverse Current Ir	50μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	1V
Peak Reverse Recovery Time trr	280ns

Key Features

Designed for use in high-frequency inverters and DC/DC converters.
Features a low forward voltage drop for efficiency.
Supports a maximum continuous forward current of 10 A.
Operates reliably between -55°C and 175°C.
Compact TO-263AC surface mount package with 3 pins.
Low leakage current ensures minimal power losses.
Peak non-repetitive forward surge current of 150 A for transient conditions.
Peak reverse repetitive voltage rating of 600 V.

Product Description

Vishay SE10DLJ-M3/I is a general purpose diode designed for surface mount use, featuring a TO-263AC package and 3-pin configuration. It supports a maximum continuous forward current of 10 A and a peak reverse repetitive voltage of 600 V. This diode is optimized for applications such as high frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive equipment. Ideal for automated PCB assembly with low forward voltage drop and minimal power loss, it offers enhanced efficiency in power electronics.

The component operates reliably in a wide temperature range from -55°C minimum to 175°C maximum. It ensures high surge capability with a peak non-repetitive forward surge current of 150 A and features a peak reverse recovery time of 280 ns, enabling fast switching performance.

The TO-263AC package dimensions measure approximately 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height, facilitating compact mounting on PCBs. This diode is manufactured in China and meets industry standards without specific automotive certifications.

Ideal for power rectification in industrial and automotive power supplies. Low leakage current reduces energy loss during operation. Robust thermal and electrical performance suitable for demanding environments. Efficient general-purpose rectifier supporting up to 10 amps continuous current.

Compatible with automated surface mount technology production lines.

This Vishay diode provides an effective solution for improving power efficiency and reliability in diverse electronic devices. Whether for use in laboratory settings, manufacturing equipment, automation, or automotive electronics, it offers dependable performance. Browse EnvMart for more semiconductor solutions including diodes, transistors, and power modules to complement your design needs.
