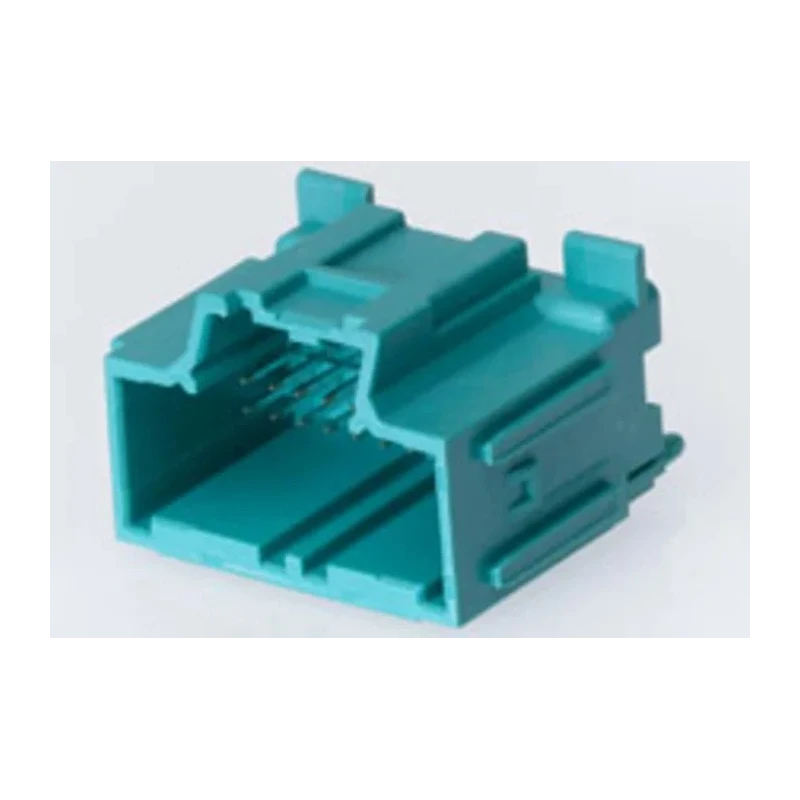

Molex Stac64 Series Straight Through Hole PCB Header, 20 Contact, 2.54 mm Pitch, 2 Row, Shrouded

Molex Stac64 series straight through hole PCB header model 34690-0203 is a high reliability 20-contact, 2-row header with a 2.54 mm pitch designed for wire-to-board connections. The header features a shrouded housing made from thermoplastic, which provides excellent insulation and durability for various industrial and electronic applications.

Rated to handle up to 10 amperes of current and voltages up to 500 volts, this PCB header is well suited for use in portable and handheld equipment where dependable connection and mechanical stability are critical. The male contacts are made of brass with tin plating, and each contact has a tail pin length of 3.33 mm designed for through hole mounting with solder termination.

Operating temperature ranges from a low of -40 degrees Celsius to a maximum of 125 degrees Celsius, making it reliable in harsh operating environments. The shrouded design enhances mating guidance and protects contacts from mechanical damage and contamination, ensuring long-term performance.

The connector system is wire-to-board, and the pitch between both rows and contacts is 2.54 mm, a standard spacing widely used in electronic hardware assembly. While it does not carry specific approvals or certifications, the Molex brand and manufacturing quality provide assurance of reliable performance.

This PCB header is ideal for electronics manufacturing, industrial control systems, and communication devices, supporting efficient wire harnessing and board interconnect functions.

The header supports a voltage rating of 500V and current rating of 10A. Housing is made of durable thermoplastic material ensuring insulation. Features tin-plated brass male contacts with 3.33 mm tail pin length. Operating temperature range spans from -40°C to 125°C.

This shrouded header provides enhanced mechanical stability and protection. Mounting type is through hole with a solder termination method. Suitable for portable and handheld electronic equipment applications. Row pitch matches the 2.54 mm contact pitch for precise alignment.

Connector system is wire-to-board to facilitate flexible wiring solutions. Designed without specific certifications but meets industrial quality standards. Explore our extensive PCB Headers selection at EnvMart for Molex and other trusted brands to support your electronics assembly and manufacturing needs.
