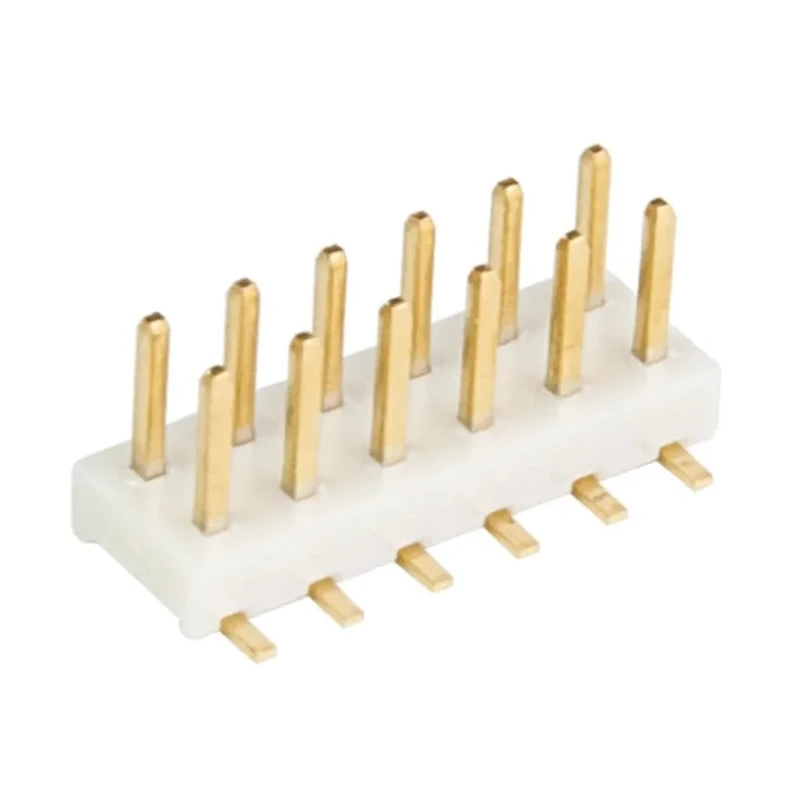

Hirose A3A Series Straight Surface Pin Header 12 Contact 2 mm Pitch 2 Row Unshrouded A3A-12PA-2SV(71)
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 200V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 2A |
| Model | A3A-12PA-2SV(71) |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Brass |
| Series | A3A |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3.5mm |
Key Features
- The header supports a maximum current of 2 amperes per contact.
- Constructed with a brass contact material plated with gold for excellent conductivity and durability.
- Housing is made of robust Polyphenylene Sulphide (PPS) material designed for reliability.
- Surface mount type with straight orientation and male contact gender.
- Operates reliably in temperatures from -55°C to 85°C, suitable for harsh environments.
- Features a mating pin length of 3.5 mm to ensure secure connections.
- RoHS compliant and manufactured in Malaysia adhering to quality standards.
Product Description
Hirose A3A-12PA-2SV(71) is a miniature SMT straight surface pin header featuring 12 gold-plated brass contacts arranged in 2 rows with a 2 mm pitch. The unshrouded design allows easy solder termination on the PCB surface, enabling reliable wire-to-board connections in diverse electronic devices and test equipment.
Housing made of Polyphenylene Sulphide ensures excellent mechanical and thermal stability, while the gold plating on the contacts provides low electrical resistance and corrosion resistance. The header supports a current rating of 2 amperes per contact and a voltage rating of 200 volts.
This pin header is designed for surface mount applications with straight orientation and male contacts. It can operate in a wide temperature range from -55°C to 85°C, making it suitable for industrial, automotive, telecommunications, and electronic test rigs.
The mating pin length is 3.5 mm, providing secure and stable connections. The product complies with RoHS directives and is manufactured in Malaysia, ensuring high quality and environmental safety standards.
The header supports a maximum current of 2 amperes per contact. Constructed with a brass contact material plated with gold for excellent conductivity and durability. Housing is made of robust Polyphenylene Sulphide (PPS) material designed for reliability.
Surface mount type with straight orientation and male contact gender. Operates reliably in temperatures from -55°C to 85°C, suitable for harsh environments. Rated voltage of 200 volts for a wide range of electronic uses.
Features a mating pin length of 3.5 mm to ensure secure connections. RoHS compliant and manufactured in Malaysia adhering to quality standards.
This Hirose A3A series pin header is ideal for electronic assemblies requiring compact, lightweight connectors with high density contact arrangements. It is widely used in industrial electronics, automotive systems, telecommunications, and laboratory test equipment.
Explore more products in our PCB Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose A3A-12PA-2SV(71) pin header supports a maximum current of 2 amperes per contact.
This pin header has a voltage rating of 200 volts, suitable for various electronic applications.
The contacts are made of brass and are plated with gold to ensure excellent conductivity and corrosion resistance.
It operates reliably in temperatures ranging from -55°C to 85°C, making it suitable for harsh environments.
The contacts are arranged with a pitch of 2 mm.
This model features 12 contacts arranged in 2 rows.
It is a surface mount type with straight orientation.
The mating pin length is 3.5 mm, providing secure connections.
Yes, the Hirose A3A-12PA-2SV(71) pin header is RoHS compliant, adhering to environmental safety standards.
The housing is made of Polyphenylene Sulphide (PPS), which provides mechanical and thermal stability.
It uses a solder termination type for reliable connections on the PCB.
This model is suitable for industrial, automotive, telecommunications, and electronic test rigs.
